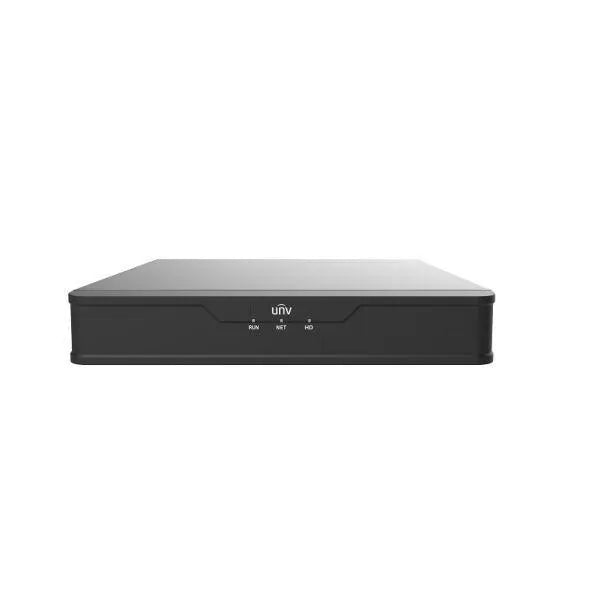

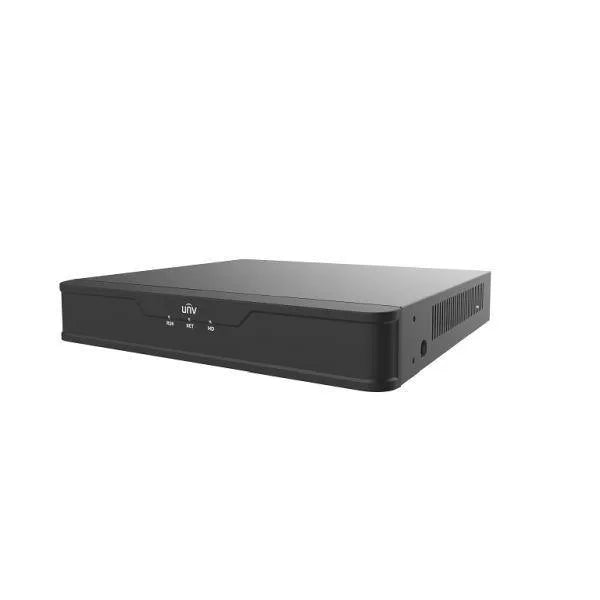

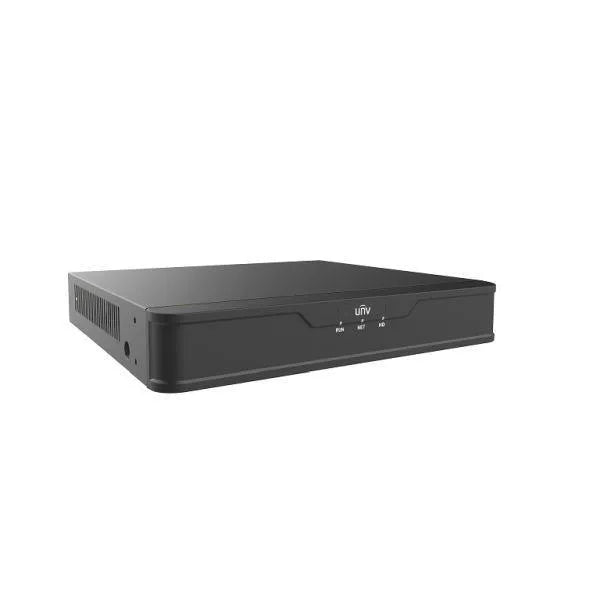

Uniview Network Video Recorder, 4 Channel, No HDD, NVR301-04X-P4

SKU UNVNVR301-04X-P4
by Uniview

Uniview Network Video Recorder

Model:    NVR301-04X-P4

  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • ONVIF conformance: Profile S, Profile G, Profile T
  • Up to 5MP resolution recording
  • No Hard Drive Storage
  • Support cloud upgrade

    Onvif | H.265 Video Format| Commercial | Residential

    Shop CTC Communications for Best Deals on Security Surveillance.
    ✓ Flat Rate Shipping ✓ Fast Delivery


    The Uniview Network Video Recorder, model NVR301-04X-P4, can accommodate up to 4 cameras and does not include a built-in hard drive for storage.

    Products from the Easy series are the most popular choices for entry-level applications such as residential and small retail stores. It consists of Easy Basic series and EasyStar series. The most important business value of them is to provide excellent performance at an affordable price.

    Advantages

    They all feature Ultra 265 compression technology developed exclusively by Uniview. Besides, Easy series products are very easy to install and maintain, which means they can be applied anywhere in seconds. Easy series products are the most cost-effective option for residential and small business applications.

    Features

    • Support Ultra 265/H.265/H.264 video formats
    • 4-channel input
    • ONVIF conformance: Profile S, Profile G, Profile T
    • Up to 5MP resolution recording
    • No Hard Drive Storage
    • Support cloud upgrade
    Features
    BRAND

    UNIVIEW

    SERIES

    EASY

    NO OF CHANNELS

    4CH

    COLOUR

    BLACK

    ARTIFICIAL INTELLIGENCE

    NON AI

    RECORDER TYPE

    NVR

    NETWORK PORT

    1xNIC, 4xPOE

    HDD PORT

    1 HDD

    ALARM I/O

    NO ALARM I/O

    WARRANTY

    24 Months

    Specifications
    Video/Audio Input
    IP Video Input 4-ch
    Network
    Incoming Bandwidth 40Mbps
    Outgoing Bandwidth 40Mbps
    Remote Users 128
    Protocols P2P, UPnP, NTP, DHCP, PPPoE
    Video/Audio Output
    HDMI/VGA Output HDMI: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    Recording Resolution 5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Synchronous Playback 4-ch
    Corridor Mode Screen 3/4
    Decoding
    Decoding format Ultra 265/H.265/H.264
    Liveview/Playback 5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Capability 1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30
    Hard Disk
    SATA 1 SATA interface
    Capacity up to 10TB for each disk
    External Interface
    Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
    USB Interface Rear panel: 2 x USB2.0
    Supported Standard IEEE 802.3at, IEEE 802.3af
    PoE
    Interface 4 independent 100 Mbps PoE network interfaces
    Max Power Max 30W for single port
    Max 54W in total (13.5W for each)
    Supported Standard IEEE 802.3at, IEEE 802.3af
    General
    Power Supply 48V DC
    Power Consumption: ≤10 W (without HDD)
    Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
    Dimensions (W×D×H) 260mm × 240mm × 46mm (10.2"×9.4"×1.8")
    Weight (without HDD) 1.1kg (2.43 lb)




      Uniview Security Products Warranty
      • Uniview security products are covered by a 24 Months manufacturer warranty
      • Please Note: Exclusions are labour for Uniview products installed by others companies
      • CTC Communications provides a 1 year warranty on labour when the security product is installed by our team
      • Freight cost is excluded from warranty, unless the product is dead upon arrival
