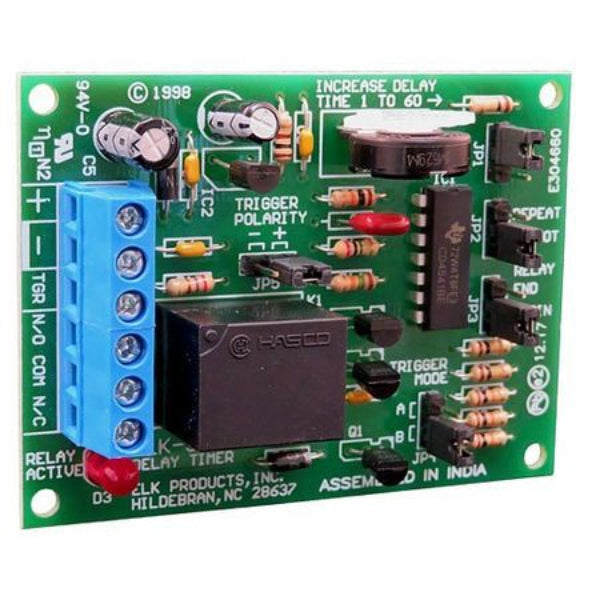

ELK-960 Universal Delay Timer Module – 12–24V DC

The ELK-960 Universal Delay Timer Module provides flexible timed relay control for alarm, access-control and automation applications. It operates from 12–24V DC and supports positive or negative triggering, adjustable delays and selectable one-shot or repeating operation.

Key Features

• 12–24V DC operating range
• Adjustable timing from 1–60 seconds or 1–60 minutes
• Selectable positive or negative trigger
• Positive trigger voltage from 4.5–24V DC
• Low-current trigger input of less than 1mA
• Selectable one-shot or repeat operating modes
• Selectable initial relay state: normally on or normally off
• SPDT Form C relay contacts
• LED indication of relay state
• Thumbwheel adjustment for straightforward setup

Flexible Timing and Trigger Control

The ELK-960 can activate once for each trigger in one-shot mode or repeat its timing cycle when configured for continuous operation. A jumper changes the adjustable range from seconds to minutes, making the module suitable for both short activation periods and longer timed functions.

Positive or negative trigger selection provides flexibility when integrating the module with compatible alarm panels, access-control equipment and other control devices. The relay can also be configured to begin in an on or off state to suit the application.

Technical Specifications

• Operating voltage: 12–24V DC
• Current draw: 40mA DC with relay energised
• Time settings: 1–60 seconds or 1–60 minutes
• Trigger voltage: 4.5–24V DC
• Trigger current: Less than 1mA
• Relay type: SPDT Form C
• Relay rating: 7A at 30V DC or 10A at 125V AC
• Dimensions: 3 × 2.2 × 1 inches (approximately 76 × 56 × 25mm)
• Mounting: Fits standard snap track

Typical Applications

• Timed access-control and door-release functions
• Alarm output delays
• Timed siren, strobe or indicator activation
• Lighting and low-voltage automation control
• Equipment start or shutdown delays
• Repeating relay operations

What Is Included?

• 1 × ELK-960 Universal Delay Timer Module

Please note: Power supply, enclosure, snap track, cabling, connected devices and installation are not included unless specified separately.

Installation Note

Correct voltage, trigger polarity, timing mode and relay configuration must be confirmed before connection. Installation and programming should be completed by a suitably experienced security or access-control technician.
