Best For
This non-dialler Wi-Fi upgrade kit is ideal for replacing or modernising the core of a compatible hardwired alarm system while retaining serviceable detectors, sirens and cabling. It includes the control equipment, enclosure, backup battery and power supply required for a professionally installed upgrade.

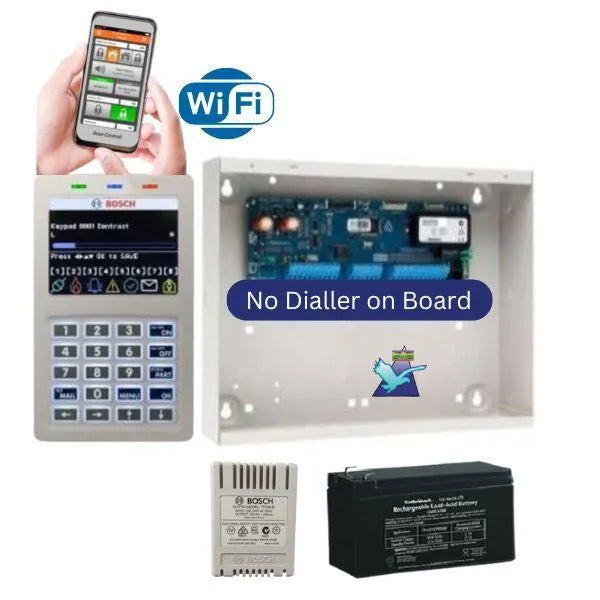

The Bosch Solution 6000 Non-Dialler Wi-Fi Upgrade Kit combines the CC615PB non-dialler control board, CP737B 3.5-inch Wi-Fi smart-card keypad, MW350 metal enclosure, backup battery and TF008-B power supply. It provides Wi-Fi app connectivity without an onboard dialler interface.
Important: This kit does not include detectors, sirens or alarm cable. Existing field devices may only be reused when they are compatible and in serviceable condition. The CC615PB has no onboard dialler interface or onboard Ethernet/IP module.
What’s Included
- 1 × Bosch Solution 6000 CC615PB non-dialler control panel PCB
- 1 × Bosch CP737B white 3.5-inch colour-screen Wi-Fi smart-card keypad
- 1 × Bosch MW350 metal control-panel enclosure, approximately 385 mm W × 260 mm H × 90 mm D
- 1 × backup battery
- 1 × Bosch TF008-B power supply
Not Included
- Motion detectors, reed switches or other alarm sensors
- Internal or external sirens
- Wireless receiver or expansion modules
- New field cabling and general installation accessories
- Installation and programming unless arranged separately
- iFob subscription and any separately required monitoring service
If you already have compatible power equipment and only need the core upgrade hardware, compare the Bosch Solution 6000 Basic Wi-Fi Upgrade Kit – Non Dialler. If an onboard dialler interface is required, see the Bosch Solution 6000 Wi-Fi Alarm Upgrade Kit – CP737B Keypad.
What “Non Dialler” Means
The CC615PB does not include an onboard dialler interface or onboard Ethernet/IP module. The Wi-Fi connection is provided by the CP737B keypad for supported MyAlarm and iFob services.
This configuration is not suitable where a direct onboard dialler interface is required for a conventional back-to-base monitoring setup. If Ethernet, cellular or monitored alarm communications are required, contact CTC before ordering so the correct panel and communication pathway can be confirmed.
CC615PB Solution 6000 Control Board
- 16 onboard alarm zones, expandable to 144 zones with compatible expansion hardware
- Up to 8 independently controlled areas
- Up to 256 PIN, token, key fob or biometric users when compatible equipment is installed
- Supports compatible wired devices and wireless devices when the required receiver or expansion modules are added
- No onboard dialler interface or onboard IP module
CP737B Wi-Fi Smart-Card Keypad
- 3.5-inch colour graphical display with LED backlight
- Built-in 802.11 b/g/n Wi-Fi connectivity
- Integrated 40-bit MIFARE smart-card reader
- Up to 4 lines of text with clear icons and prompts
- Dedicated ON, OFF and PART arming keys
- Adjustable volume, backlight and display contrast
- On-screen clock and temperature display
iFob App Setup and Subscription
The CP737B keypad can connect the system to a suitable Wi-Fi network for supported MyAlarm and iFob services. A security installer must program the system and complete MyAlarm registration. iFob is a paid subscription service, and available controls and notifications depend on the selected plan, system programming and compatible connected equipment.
View available Bosch Solution 6000 iFob plans.
Compatibility and Installation
Existing detectors, sirens and cabling can only be reused if they are compatible, correctly installed and in serviceable condition. A licensed security professional should inspect the existing system, install the new control equipment, confirm zone and power requirements, and complete programming and app registration.
The CC615PB board and CP737B keypad are supplied together in this kit. If either component will be combined with a different or older Solution 6000 system, contact CTC first to confirm firmware, panel serial number and hardware compatibility.
CTC offers alarm system upgrades and professional alarm installation in Sydney.
Why Buy from CTC Communications?
- Security industry experience since 1993
- Bosch Platinum Dealer and Certified Partner
- Australia-wide delivery
- Sydney installation and upgrade services
- Pre-sales assistance with compatibility, power and communication requirements
Compare more Bosch Solution 6000 upgrade kits, or read our Bosch alarm system comparison.
