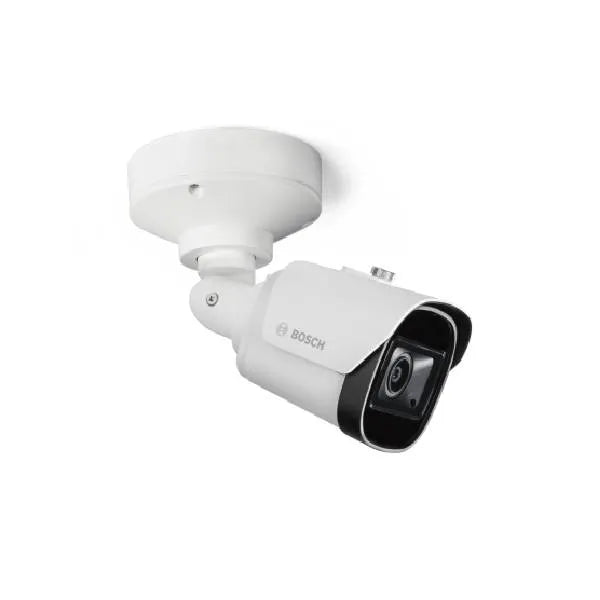

Bosch DINION 3100i IR 5MP Bullet Camera (NBE-3703-AL)
Protect your property with the Bosch DINION 3100i IR 5MP Bullet Camera, a professional outdoor IP surveillance camera designed for reliable day and night monitoring. Featuring 5MP resolution, a 3.3–10.2mm varifocal lens, HDR, IVA Pro Buildings analytics and built-in IR illumination up to 30m, this camera is ideal for commercial sites, schools, warehouses, car parks, entries and perimeter security.
5MP 3.3–10.2mm Varifocal DINION 3100i IR IVA Pro Buildings HDR 30m IR IP66 IK10
Overview
- Outdoor 5MP bullet camera for detailed surveillance coverage.
- Integrated 3.3–10.2mm varifocal lens for flexible scene framing.
- IVA Pro Buildings provides deep-learning detection of people and vehicles.
- HDR helps capture detail in both bright and dark areas of the scene.
- Built-in IR illumination supports night viewing up to 30m.
- IP66 weather protection and IK10 impact resistance for tough outdoor installations.
Key Features & Specifications
| Model |
NBE-3703-AL |
| Product Series |
Bosch DINION 3100i IR |
| Camera Type |
Outdoor IP bullet camera |
| Resolution |
Up to 5MP |
| Sensor |
1/2.7 inch CMOS |
| Lens |
3.3–10.2mm varifocal |
| Horizontal Field of View |
101° to 30° |
| Frame Rate |
1–30fps |
| Night Vision |
Built-in intelligent IR up to 30m / 98ft |
| Dynamic Range |
HDR |
| Video Compression |
H.265/HEVC, H.264, MJPEG |
| Video Analytics |
IVA Pro Buildings for deep-learning based person and vehicle detection |
| Weather Protection |
IP66 |
| Impact Protection |
IK10 |
| Operating Temperature |
-30°C to 50°C |
| Security |
Built-in Secure Element with Trusted Platform Module (TPM) |
| Use |
Outdoor commercial, industrial and perimeter surveillance |
IVA Pro Buildings Analytics
The Bosch DINION 3100i IR NBE-3703-AL includes IVA Pro Buildings analytics to help improve alarm accuracy by detecting people and vehicles using deep-learning technology. This helps reduce unwanted motion alerts caused by environmental movement and allows security teams to focus on relevant events.
- Person and vehicle detection
- Suitable for building entries, car parks and perimeter monitoring
- Helps reduce false alarms from non-relevant movement
- Supports smarter event review and forensic search when used with compatible Bosch systems
Reliable Day & Night Monitoring
With HDR and built-in intelligent IR illumination, this Bosch bullet camera is designed to capture useful detail in challenging lighting conditions, including entrances, driveways, loading docks and outdoor areas with mixed shadows, glare or low light.
- HDR for bright and dark scene detail
- IR illumination up to 30m
- Varifocal lens for adjustable coverage
- Suitable for both daytime and night-time surveillance
Cybersecurity & Data Protection
The NBE-3703-AL includes a built-in Secure Element with Trusted Platform Module technology to help protect device access and data transport. This makes it a strong choice for professional CCTV systems where secure operation and trusted device authentication are important.
Ideal Use Cases
- Commercial building entrances
- Warehouses and loading docks
- Car parks and driveways
- Retail and office perimeters
- Schools and education facilities
- Industrial yards and site boundaries
- Outdoor corridors and access paths
- Sites needing accurate person and vehicle detection
Installation Notes
- This is an IP surveillance camera and requires compatible network infrastructure.
- A PoE switch, NVR, VMS platform, network cabling and mounting accessories may be required depending on the installation.
- Camera field of view and analytics should be configured by a professional installer for best results.
- Professional installation is recommended for correct camera placement, weatherproofing, network setup and recording configuration.
FAQs
Is the Bosch NBE-3703-AL suitable for outdoor use?
Yes. The camera is rated IP66 for weather protection and IK10 for impact resistance, making it suitable for outdoor surveillance applications.
Does this camera have night vision?
Yes. It includes built-in intelligent IR illumination with up to 30m viewing distance for low-light and night-time monitoring.
What is IVA Pro Buildings?
IVA Pro Buildings is Bosch’s deep-learning analytics for reliable detection of people and vehicles, helping reduce false alarms and improve event accuracy.
Is NBE-3703-AL the same as NDE-3703-AL?
No. NBE-3703-AL is the DINION bullet camera version. NDE-3703-AL is the FLEXIDOME outdoor dome version with similar core 5MP 3100i IR technology in a different housing style.
