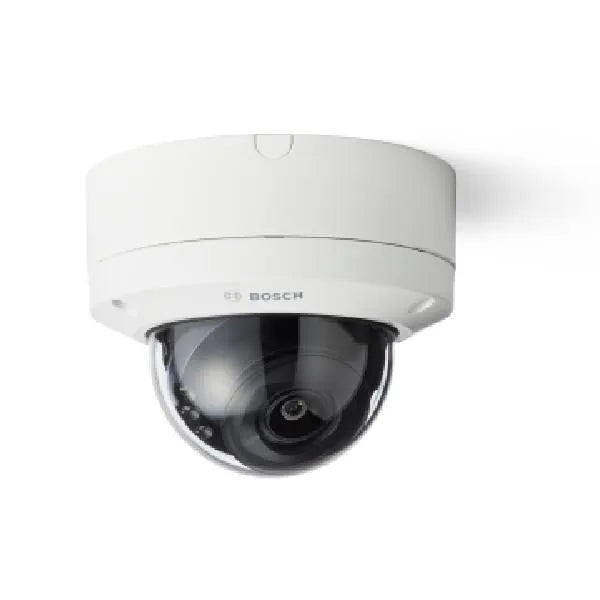

Bosch FLEXIDOME Outdoor 3100i IR 5MP Dome Camera (NDE-3703-AL)
Protect your property with the Bosch FLEXIDOME Outdoor 3100i IR 5MP Dome Camera, a professional outdoor fixed dome camera designed for reliable video surveillance in demanding environments. Featuring 5MP resolution, a 3.3–10.2mm varifocal lens, IVA Pro Buildings analytics, built-in IR illumination up to 30m, IP66 weather protection and IK10 impact resistance, this Bosch dome camera is ideal for commercial buildings, schools, warehouses, retail sites, car parks and perimeter monitoring.
5MP
3.3–10.2mm Varifocal
FLEXIDOME Outdoor 3100i IR
IVA Pro Buildings
30m IR
IP66
IK10
H.265
Overview
- Outdoor 5MP fixed dome camera for detailed surveillance coverage.
- 3.3–10.2mm varifocal lens allows flexible scene adjustment during installation.
- IVA Pro Buildings provides deep-learning based detection of people and vehicles.
- Built-in IR illumination supports night viewing up to 30m.
- IP66 weather protection for outdoor installations.
- IK10 impact resistance for vandal-resistant security applications.
- H.265 compression helps reduce bandwidth and storage requirements.
Key Features & Specifications
| Model |
NDE-3703-AL |
| Product Series |
Bosch FLEXIDOME Outdoor 3100i IR |
| Camera Type |
Outdoor IP fixed dome camera |
| Resolution |
5MP |
| Sensor |
1/2.7 inch CMOS |
| Lens |
3.3–10.2mm varifocal |
| Horizontal Field of View |
101.4° to 30.1° |
| Frame Rate |
1–30fps |
| Night Vision |
Built-in IR up to 30m / 98ft |
| Video Analytics |
IVA Pro Buildings for deep-learning based person and vehicle detection |
| Video Compression |
H.265/HEVC, H.264, MJPEG |
| Weather Protection |
IP66 |
| Impact Protection |
IK10 |
| Operating Temperature |
-30°C to 50°C |
| Security |
Built-in Secure Element with Trusted Platform Module (TPM) |
| Use |
Outdoor commercial, education, retail, warehouse and perimeter surveillance |
IVA Pro Buildings Analytics
The Bosch FLEXIDOME Outdoor 3100i IR NDE-3703-AL includes IVA Pro Buildings, helping improve event detection by using deep-learning based analytics to identify people and vehicles. This supports more accurate alerts and helps reduce false alarms caused by irrelevant movement such as shadows, trees, rain or lighting changes.
- Person and vehicle detection
- Designed for building entrances, car parks and outdoor paths
- Helps reduce false alarms from non-relevant motion
- Supports smarter event review when used with compatible Bosch systems
Durable Outdoor Dome Design
With IP66 weather protection and IK10 impact resistance, this Bosch dome camera is designed for outdoor security applications where durability and reliability are important. The fixed dome form factor provides a clean, professional appearance while offering strong protection for exposed areas.
- Weather-resistant outdoor installation
- Vandal-resistant dome housing
- Ideal for public-facing areas
- Suitable for commercial and high-traffic environments
Reliable Day & Night Surveillance
The built-in IR illuminator provides up to 30m night viewing, helping maintain security coverage after hours. Combined with 5MP image detail and a varifocal lens, the NDE-3703-AL is a practical option for monitoring entries, driveways, paths, warehouses and perimeter zones.
- 5MP image detail for clearer surveillance footage
- IR illumination up to 30m
- Adjustable varifocal coverage
- Suitable for day and night monitoring
Cybersecurity & Data Protection
The NDE-3703-AL includes a built-in Secure Element with Trusted Platform Module technology to help protect device access and data transport. This makes it suitable for professional CCTV installations where secure operation and trusted device authentication are important.
Ideal Use Cases
- Commercial building entrances
- Schools and education facilities
- Warehouses and loading docks
- Retail stores and shopping centres
- Car parks and driveways
- Office perimeters and outdoor walkways
- Apartment buildings and strata properties
- Sites needing vandal-resistant dome cameras
- Areas requiring accurate person and vehicle detection
Installation Notes
- This is an IP surveillance camera and requires compatible network infrastructure.
- A PoE switch, NVR, VMS platform, network cabling and mounting accessories may be required depending on the installation.
- Camera view, lens position and IVA Pro analytics should be configured by a professional installer for best results.
- Professional installation is recommended for correct placement, weatherproofing, network setup and recording configuration.
FAQs
Is the Bosch NDE-3703-AL suitable for outdoor use?
Yes. The camera is rated IP66 for weather protection and IK10 for impact resistance, making it suitable for outdoor CCTV installations.
Does this Bosch dome camera have night vision?
Yes. It includes built-in IR illumination with up to 30m viewing distance for low-light and night-time monitoring.
What is the lens size on the NDE-3703-AL?
The camera features a 3.3–10.2mm varifocal lens, allowing the installer to adjust the field of view to suit the location.
What is IVA Pro Buildings?
IVA Pro Buildings is Bosch’s deep-learning analytics for detecting people and vehicles, helping improve event accuracy and reduce false alarms.
