Aiphone Intercom IP Video Master Station, IX Series, IX-MV7-B

Aiphone IX-MV7-B, Intercom IP Video Master Station, IX Series

Name: Aiphone IX-MV7-B, Intercom IP Video Master Station, IX Series
SKU: IX-MV7-B
Price: 1135.0 AUD

SKU IX-MV7-B

by Aiphone

Availability:

In stock

Save 13%

$1,298.50

$1,298.50 - $1,298.50

$1,298.50

$1,135.00

$1,135.00 - $1,135.00

$1,135.00

Quantity

Shipping & Refunds

Shipping Refund Policy

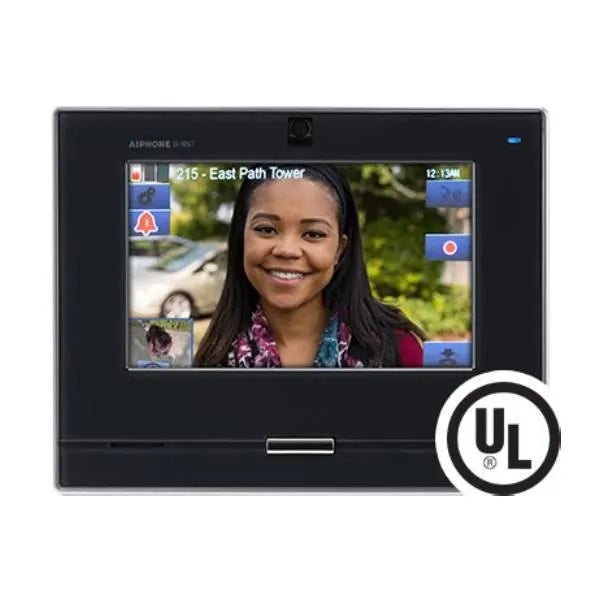

The IX-MV7-B is an IP Video Master Station, SIP compatible in large 7" colour touchscreen, black. UL Certified.

Model - IX-MV7-B

SIP - Peer to Peer- Backwards Compatible- ONVIF®

The Aiphone IX Series intercoms offer the power of an enterprise platform with the simplicity of a single intercom and telephone system.

The IX Series is a perfect solution for commercial sites, industrial facilities, schools, campuses, parking garages, retail, emergency call, and correctional applications.

Utilizing SIP, register any IX Series intercom station to place or forward calls to an external phone number. Master stations can now serve a dual role as a single command point, controlling security layers such as access control and emergency communications.

With picture-in-picture, master stations can toggle between ONVIF® Profile SIP cameras and the new 1.3 megapixel cameras on IX Series video door stations. Line supervision ensures all stations are online while device check verifies every button, station speaker, and microphone are operating properly.

Monitor Features :

SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®
ONVIF® Profile S Compliant
802.3af PoE, Class 0
7″ TFT LCD color touchscreen that can be wall or desk mounted (desk stand included).
Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
Hands-free or push-to-talk communication
8 customizable speed dial buttons
Turn your master into a virtual receptionist – ideal for unmanned waiting areas or unstaffed lunch hours
Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
2 contact outputs, 4 trigger inputs
8Ω 1/2 watt speaker output provides better coverage for announcements
600Ω audio input
2-year warranty!

Specifications

Power Source

PoE (IEEE 802.3af class 0)
Power Draw
4.32 Watts
Camera
⅓" CMOS 720p
Min. illumination
5 Lux
Audio Codec
G.711 (μ-law, A law), G.722
Video Codec
H.264/AVC, Motion JPEG
Protocols
IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
Port Security
IEEE 802.1X
Operating Temp
32° - 104°F (0° - 40°C)
Dimensions
6-3⁄4" H x 8-11⁄16" W x 1-1⁄4" D
Mounting
Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket.

Downloads

Aiphone Master Station Web Settings Manual

Shop CTC Communications for best deals on Aiphone IX Series Intercoms

Aiphone Intercom Warranty

Aiphone products are covered by a 2 year Manufacturer Warranty.
Exclusion are labour for products installed by others.
CTC Communications provides a 1 year Warranty on labour when the security product is installed by our Team.
Freight Cost is excluded from Warranty, unless the product is dead upon arrival.
not covered for surge faults
