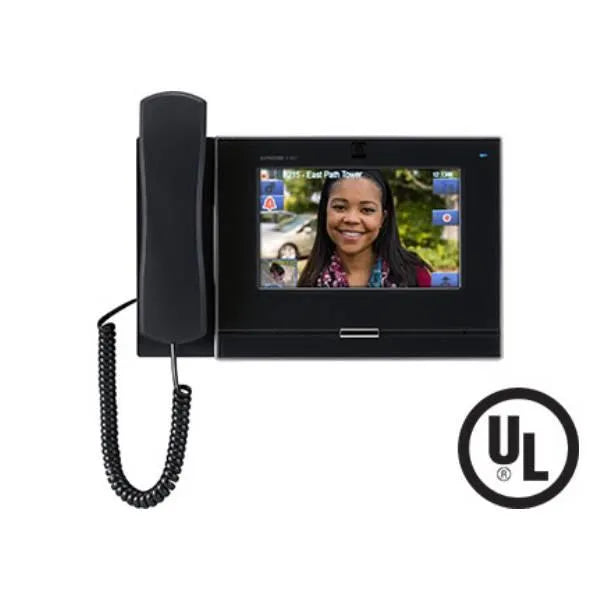

Aiphone IX-MV7-HB, Intercom Master Station, IX Series

The IX-MV7-HB is an IP addressable hands-free or handset Intercom Master Station for the Aiphone IX series, featuring a large 7'' colour touchscreen, it can be wall or desk mounted with the stand included.

Model - IX-MV7-HB

SIP - Peer to Peer- Backwards Compatible- ONVIF®

The Aiphone IX Series intercoms offer the power of an enterprise platform with the simplicity of a single intercom and telephone system.

The IX Series is a perfect solution for commercial sites, industrial facilities, schools, campuses, parking garages, retail, emergency call, and correctional applications.

Utilizing SIP, register any IX Series intercom station to place or forward calls to an external phone number. Master stations can now serve a dual role as a single command point, controlling security layers such as access control and emergency communications.

With picture-in-picture, master stations can toggle between ONVIF® Profile SIP cameras and the new 1.3 megapixel cameras on IX Series video door stations. Line supervision ensures all stations are online while device check verifies every button, station speaker, and microphone are operating properly.

Monitor Features :

• SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®.
• ONVIF® Profile S Compliant
• 802.3af PoE, Class 0
• 7″ TFT LCD touchscreen
• Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
• Hands-free or push-to-talk communication
• 8 customizable speed dial buttons
• Turn your master into a virtual receptionist – ideal for unmanned waiting areas or unstaffed lunch hours
• Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
• Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
• 2 contact outputs, 4 trigger inputs
• 8Ω 1/2 watt speaker output provides better coverage for announcements
• 600Ω audio input.
• 2-year warranty!

Specifications
