Aiphone IP Video Door Station, IX-DVF-P

Aiphone IX-DVF-P, IP Video Door Station

SKU IX-DVF-P
by Aiphone
Availability:
In stock
Save 13% Save 13%
$1,532.90
$1,532.90 - $1,532.90
$1,532.90
$1,329.00
$1,329.00 - $1,329.00
$1,329.00

Shipping & Refunds

Shipping Refund Policy

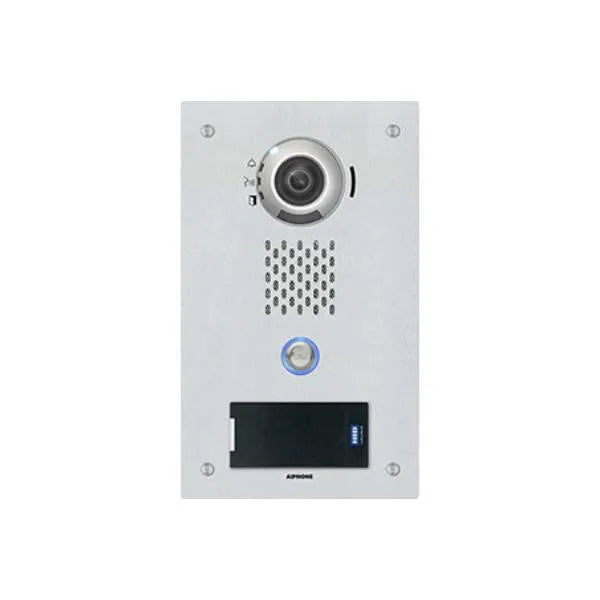

The IX-DVF-P is a SIP compatible IP Video door station, it is vandal resistant, features a stainless steel faceplate and is a flush mounted design with HID multiclass reader.

Model: IX-DVF-P Door Station

The Aiphone IP Video Door station is compatible with the IX series.

SIP - Peer to Peer- Backwards Compatible

Door Station Features

  • Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site
  • ONVIF® Profile S Compliant
  • 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
  • 1.23 megapixel fixed color video camera
  • Camera vertical adjustment +15º, 0º, or -8º (manual)
  • White LED for low light illumination
  • Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
  • IP65 rated, weather resistant
  • Stainless steel faceplate
  • 2 contact outputs
  • 6 trigger inputs
  • 2-year warranty!

    Shop CTC Communications for best deals on Aiphone Door Stations

    Specifications

    • Power Source
    • PoE (IEEE 802.3af class 0)
    • Power Draw
    • 5.28 Watts
    • Camera
    • ⅓" CMOS 1.23 megapixel
    • Min. illumination
    • 5 lux
    • Audio Codec
    • G.711 (μ-law, A law), G.722
    • Video Codec
    • H.264/AVC, motion JPEG
    • Protocols
    • IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
    • Port Security
    • IEEE 802.1X
    • Operating Temp
    • -31° - 140°F (-35° - 60°C)
    • Ingress Protection
    • IP65
    • Impact Protection
    • IK07
    • Dimensions
    • 11-11⁄16" H x 7" W
    • Mounting
    • Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box

    Downloads

    Aiphone IP Video Door Station Installation Manual

    Aiphone Intercom Warranty
    • Aiphone products are covered by a 2 year Manufacturer Warranty.
    • Exclusion are labour for products installed by others.
    • CTC Communications provides a 1 year Warranty on labour when the security product is installed by our Team.
    • Freight Cost is excluded from Warranty, unless the product is dead upon arrival.
    • not covered for surge faults
