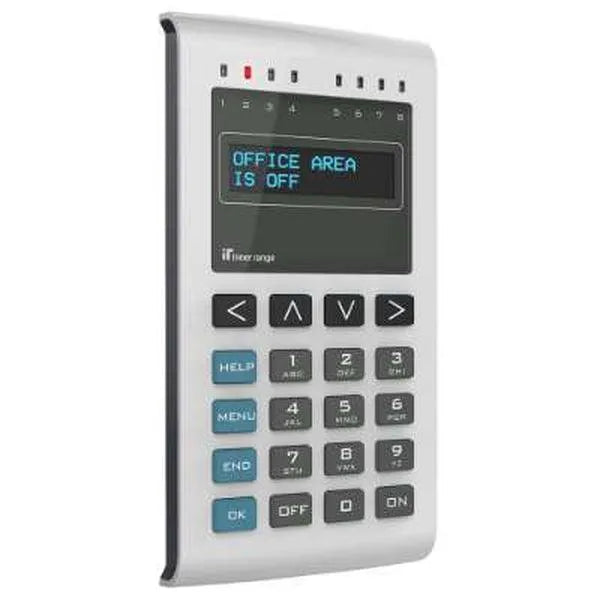

Inner Range EliteX Standard Keypad

Housing Dimensions: 152h x 90w x 18d mm
Installation Environment: 0 Degrees - 50Degrees C @ 15% to 85% relative humidity (non-condensing)
Electrical

Input Voltage: 11V - 14V DC
Operational Current at 13.7V DC: 14.4mA (Back-light & LEDS off), 42mA (Back-light & LEDS max brightness)
Operations Current @ 13.7V DC SIFER Model: 46mA (Back-light & LEDS off), 186mA (Peak, Back-light & LEDS max brightness)
Auxiliary Open Collector Output Current: 18VDC, 500mA maximum each (PTC protected)
Display & Indicator Brightness

Display/ Keypad: Variable brightness via programming (Can be turned off)
LED Indicators: Variable brightness via programming
Indicators & I/Os

LED Indicators: 8
Aux Outputs (Open collector): 2
Universal I/Os: 2 (Input mode is compatible with original Elite, or EOL/Multi-state compatible)
