Best For: Entrances, driveways, shopfronts and commercial access areas needing adjustable camera coverage, AI people and vehicle detection, and audio recording.

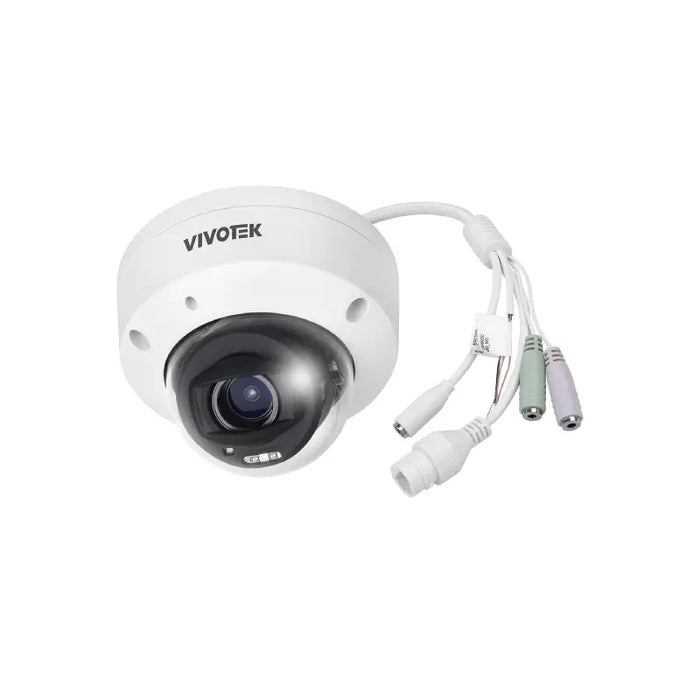

Vivotek FD9380-HTV-V2 5MP Motorised AI Dome Camera with Microphone
The Vivotek FD9380-HTV-V2 combines 5MP video at up to 30fps with a 2.7–13.5mm motorised lens and built-in microphone. Adjust the view and focus remotely to suit a broader access area or a more tightly framed entrance, while AI detection helps identify relevant activity.
Part of Vivotek’s C Series AI range, this outdoor dome features up to 30m Smart IR, WDR Pro and an IP66/IP67, IK10 metal housing. CTC Communications supplies security equipment Australia-wide and provides professional CCTV installation across Sydney.
Key Features
- 5MP resolution at up to 30fps.
- 2.7–13.5mm motorised varifocal lens with remote focus.
- Adjustable horizontal view from 111° to 32.2°.
- AI people and four-wheeled vehicle detection.
- Smart VCA for intrusion, loitering and line crossing detection.
- Built-in microphone and external audio connections.
- Up to 30m Smart IR and 120dB WDR Pro.
- IP66/IP67 weather protection and IK10 metal housing.
- H.265 compression, Smart Stream III, microSD recording and alarm I/O.
- IEEE 802.3af PoE or 12V DC power.
Motorised Lens for Adjustable Coverage
The 2.7–13.5mm lens lets your installer adjust framing and focus remotely, reducing the need to return to the camera for lens changes. A wider setting covers more of the scene; a narrower view concentrates detail around a selected entrance or activity point. Position the camera for your target area and allow for the available lighting.
AI Detection for Relevant Security Events
Vision Object Analytics distinguishes people and four-wheeled vehicles, helping focus monitoring on relevant activity. Configure intrusion, loitering and line crossing rules around entrances, boundaries or restricted areas. Confirm which notifications, analytics and bestshot or path functions your chosen recorder or video management platform supports.
WDR Pro and Infrared Night Viewing
WDR Pro helps retain detail where bright and shaded areas meet. Smart IR adjusts infrared intensity to help avoid overexposure at night, with black-and-white illumination rated up to 30m. Useful identification distance depends on camera placement, lens setting, lighting and the level of image detail captured at the target.
Built-in Microphone and System Integration
The built-in microphone supports audio recording without an external microphone. External line input and output connections allow compatible audio equipment to be integrated. Two-way audio requires an appropriate external speaker; this camera has no built-in speaker. One digital input and one digital output support compatible alarm integration.
Technical Specifications
| Brand / Model |
Vivotek / FD9380-HTV-V2 |
| Series / Camera Type |
C Series AI / Outdoor dome network camera |
| Image Sensor |
1/2.7" progressive CMOS |
| Resolution / Frame Rate |
2880 × 1616 (5MP), up to 30fps |
| Lens |
2.7–13.5mm motorised varifocal lens with remote focus; F1.6–F3.1; fixed iris |
| Field of View |
111°–32.2° horizontal / 57°–18° vertical / 136°–37° diagonal |
| WDR |
120dB WDR Pro |
| Infrared |
Up to 30m with Smart IR; removable IR-cut filter |
| Minimum Illumination |
0.04 lux colour / 0.005 lux black-and-white at F1.6; 0 lux with IR on |
| Compression / Streams |
H.265 / H.264 / MJPEG; Smart Stream III; 3 video streams |
| AI Detection |
People and four-wheeled vehicles; human / vehicle bestshot and path extraction |
| Smart VCA |
Intrusion, loitering and line crossing detection; Smart Motion Detection |
| Audio |
Built-in microphone; external line input / output; two-way audio with compatible external speaker |
| Alarm I/O |
1 digital input / 1 digital output |
| Storage |
microSD / SDHC / SDXC up to 1TB; NAS recording supported |
| Network / ONVIF |
10/100Mbps Ethernet; ONVIF Profiles G, S and T |
| Cybersecurity |
Signed firmware, HTTPS and IEEE 802.1x; Trend Micro IoT Security with 1-year trial |
| Power |
IEEE 802.3af PoE Class 3 or 12V DC |
| Power Consumption |
PoE: maximum 7.77W, typical 3.6W; DC: maximum 7.44W |
| Housing |
Metal housing; IP66 / IP67 weather protection and IK10 impact resistance |
| Operating Temperature |
−30°C to 60°C |
| Dimensions / Weight |
133.7mm diameter × 103.8mm high / 758g |
| Manufacturer Warranty |
3 years, subject to applicable warranty terms |
Power, Storage and Installation Requirements
Use a compatible IEEE 802.3af PoE source or suitable 12V DC supply, network cabling and recording equipment. Arrange any mounting accessories, external speaker and microSD card separately. Recording retention depends on capacity, bitrate and recording schedules.
Compare other Vivotek dome cameras or explore the wider Vivotek security range. CTC can help match coverage, recording equipment and mounting options to your property.
