Best For: Homes, shops, offices and outdoor entrances needing a wide fixed view, AI people and vehicle detection, and a durable vandal-resistant dome.

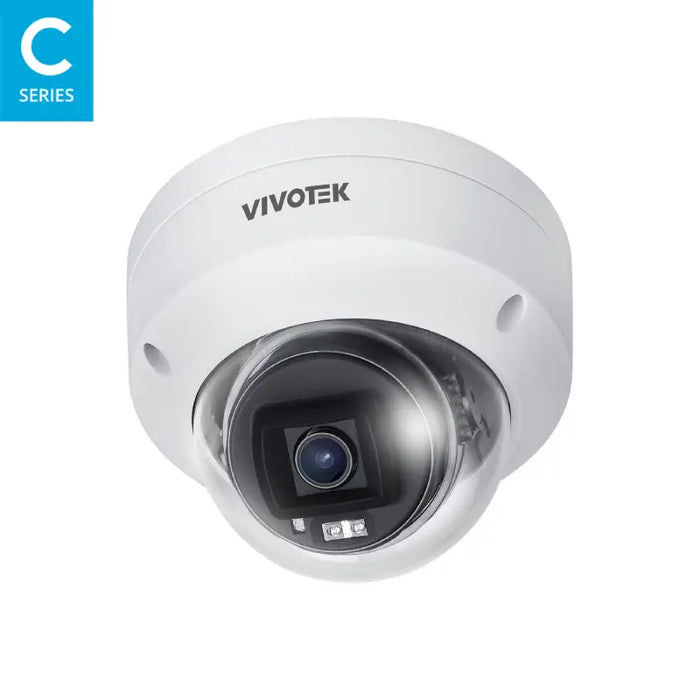

Vivotek FD9380-HV-V2 5MP Outdoor AI Dome Camera with 2.8mm Lens
The Vivotek FD9380-HV-V2 combines 5MP video at up to 30fps with AI detection and a compact metal dome housing. Its 2.8mm fixed lens provides a wide 111° horizontal view, while WDR Pro helps retain detail around bright entrances and shaded areas.
Part of Vivotek’s C Series AI range, this camera suits everyday property monitoring where reliable event detection and straightforward PoE installation are priorities. CTC Communications supplies security equipment Australia-wide and provides professional CCTV installation across Sydney.
Key Features
- 5MP resolution at up to 30fps for clear, smooth video.
- 2.8mm fixed lens with a wide 111° horizontal view.
- Vision Object Analytics detects people and four-wheeled vehicles.
- Smart VCA supports intrusion, loitering and line crossing detection.
- Up to 30m infrared illumination with Smart IR.
- 120dB WDR Pro for scenes with bright and shaded areas.
- IP66/IP67 weather protection and IK10 impact-resistant metal housing.
- H.265 compression and Smart Stream III help manage storage and bandwidth.
- External audio input/output, alarm I/O and microSD recording support.
AI Detection for Relevant Security Events
Vision Object Analytics distinguishes people and four-wheeled vehicles, helping focus monitoring on relevant activity. Configure intrusion, loitering and line crossing rules around entrances, boundaries or restricted areas. Confirm which analytics, notifications and search functions your chosen recorder or video management platform supports.
Wide Coverage, WDR Pro and Night Viewing
The fixed 2.8mm lens suits broader views of entrances, shopfronts and access areas. WDR Pro balances high-contrast lighting, while Smart IR adjusts infrared intensity to help avoid overexposure at night. Infrared viewing is black-and-white, with a rated illumination range of up to 30m. Useful identification distance depends on placement, image detail and site conditions.
Durable Outdoor Housing and Audio Integration
The metal dome housing carries IP66/IP67 weather ratings and IK10 impact resistance. Two-way audio is available through external line input and output connections; an appropriate external microphone and speaker are required. The camera has no built-in microphone or speaker. One digital input and one digital output support compatible alarm integration.
Technical Specifications
| Brand / Model |
Vivotek / FD9380-HV-V2 |
| Series / Camera Type |
C Series AI / Outdoor network dome |
| Image Sensor |
1/2.7" progressive CMOS |
| Maximum Resolution / Frame Rate |
2880 × 1616 (5MP), up to 30 fps |
| Lens |
2.8mm fixed focal lens, F1.6 |
| Field of View |
111° horizontal / 59° vertical / 133° diagonal |
| WDR |
120dB WDR Pro |
| Infrared |
Up to 30m with Smart IR; removable IR-cut filter |
| Minimum Illumination |
0.055 lux colour / 0.005 lux black-and-white at F1.6; 0 lux with IR on |
| Compression / Streaming |
H.265 / H.264 / MJPEG; Smart Stream III; 3 video streams |
| AI Detection |
People and four-wheeled vehicles; human / vehicle bestshot and path extraction |
| Smart VCA |
Intrusion, loitering and line crossing detection; Smart Motion Detection |
| Audio |
Two-way audio via external line input and line output; external microphone and speaker required |
| Alarm I/O |
1 digital input / 1 digital output |
| Local Storage |
microSD / SDHC / SDXC up to 1TB; NAS recording supported |
| Network / ONVIF |
10/100Mbps Ethernet; ONVIF Profiles G, S and T |
| Power |
IEEE 802.3af PoE Class 3 or 12V DC |
| Power Consumption |
PoE: maximum 6.38W, typical 3.6W; 12V DC: maximum 6.24W |
| Housing |
Metal housing; IP66 / IP67 weather protection and IK10 impact resistance |
| Operating Temperature |
−30°C to 60°C |
| Dimensions / Weight |
117.2mm diameter × 89.6mm high / 562g |
| Manufacturer Warranty |
36 months, subject to applicable Australian supply and warranty terms |
Power, Storage and System Planning
Power the camera using a compatible IEEE 802.3af PoE switch or recorder, or a suitable 12V DC supply. Arrange network cabling, recording storage and any mounting accessories required for your installation. A microSD card is optional and supplied separately; recording retention depends on storage capacity, bitrate and recording schedule.
Compare our Vivotek dome cameras and explore the wider Vivotek security range. CTC can help match camera coverage, recorder compatibility and installation requirements to your property.
