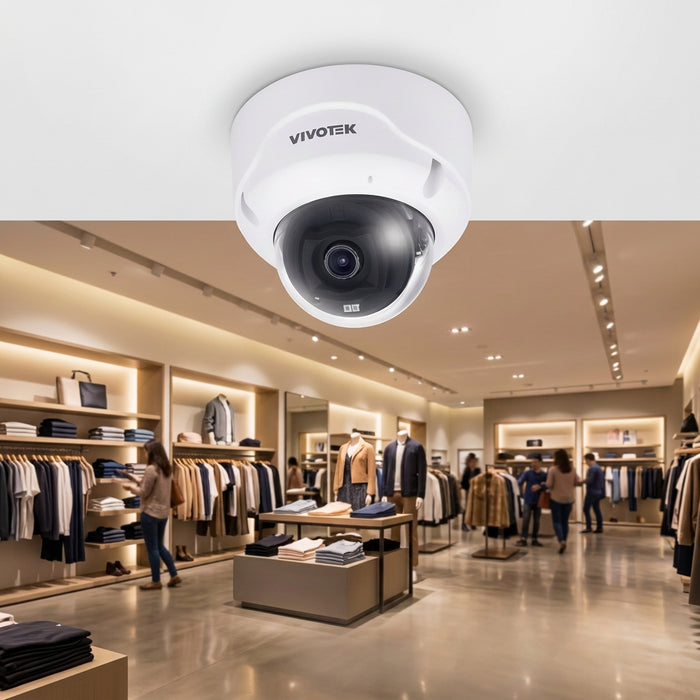

Best For: Commercial entrances, retail premises, car parks and homes needing detailed 4K coverage, AI activity detection and a durable outdoor dome with audio recording.

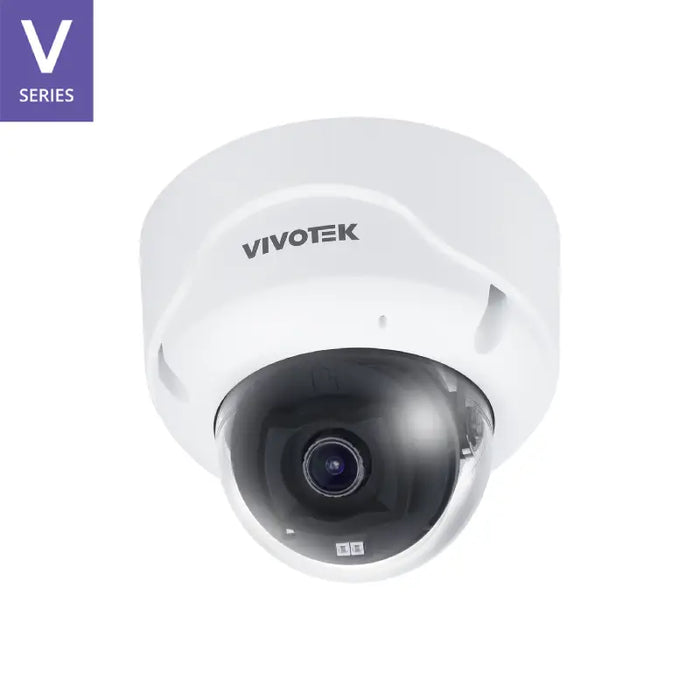

Vivotek FD9399-EHV 8MP Outdoor AI Dome Camera with 4.2mm Lens & Microphone
The Vivotek FD9399-EHV delivers 8MP/4K video at up to 30fps with AI detection and a built-in microphone. Its 4.2mm fixed lens provides a broad 110.74° horizontal view, while a 1/1.8-inch image sensor, WDR Pro and RealSight Engine help maintain useful detail in changing light.
Part of Vivotek’s V Series, this outdoor dome combines up to 40m infrared illumination with IP66 weather protection, IK10 impact resistance and NEMA Type 4X protection. CTC Communications supplies security equipment Australia-wide and provides professional CCTV installation across Sydney.
Key Features
- 8MP/4K resolution at up to 30fps.
- 4.2mm fixed lens with a wide 110.74° horizontal view.
- AI people and vehicle detection with Vision Object Analytics.
- Smart VCA for intrusion, loitering, line crossing and face detection.
- RealSight Engine and 120dB WDR Pro for challenging lighting.
- Up to 40m infrared illumination with Smart IR III.
- Built-in microphone for audio recording.
- IP66, IK10 and NEMA Type 4X protection.
- H.265 compression, Smart Stream III and microSD recording support.
- Secure boot, signed firmware and TPM 2.0 hardware security.
AI Monitoring and Event Search
Vision Object Analytics detects people and two- or four-wheeled vehicles, providing bestshot images, paths and object attributes for supported monitoring platforms. Configure Smart VCA rules around entrances, site boundaries and restricted areas to identify relevant activity. Face detection identifies the presence of a face; it does not establish a person’s identity.
Running, parking violation and restricted zone detection require an additional licence. Confirm recorder or video management software compatibility, supported search functions and any required licences before selecting analytics for your installation.
Detailed 4K Coverage in Changing Light
The fixed lens suits broad views of access areas and commercial spaces. RealSight Engine combines exposure control, white balance, WDR, deblur and Smart IR III to help manage difficult scenes. Electronic image stabilisation uses a built-in gyro sensor to reduce the effects of camera vibration.
Infrared illumination supports black-and-white night viewing up to a rated 40m. Useful identification distance depends on placement, scene lighting and the level of detail captured at the target; the IR range is not an identification distance.
Audio Recording and Optional Alarm Connections
The built-in microphone supports audio recording without an external microphone. Full-duplex two-way audio, external audio connections and the digital alarm input/output require the optional AO-015 cable. Arrange a compatible external speaker and any other audio equipment needed for your installation; the camera has no built-in speaker.
Technical Specifications
| Brand / Model |
Vivotek / FD9399-EHV |
| Series / Camera Type |
V Series / Outdoor fixed dome network camera |
| Image Sensor |
1/1.8" progressive CMOS |
| Resolution / Frame Rate |
3840 × 2160 (8MP / 4K), up to 30fps |
| Lens |
4.2mm fixed focal lens, F1.6 |
| Field of View |
110.74° horizontal / 59.1° vertical / 131° diagonal |
| WDR |
120dB WDR Pro |
| Infrared |
Up to 40m; VCA-based Smart IR III |
| Minimum Illumination |
0.015 lux colour / below 0.005 lux black-and-white at F1.6; 0 lux with IR on |
| Image Enhancement |
RealSight Engine; deblur, WDR, white balance and exposure control; electronic image stabilisation with gyro sensor |
| Compression / Streaming |
H.265 / H.264 / MJPEG; Smart Stream III; 3 video streams |
| Vision Object Analytics |
People and two-/four-wheeled vehicle detection; attribute and path extraction; human, vehicle and face bestshot; Re-Search extraction |
| Smart VCA |
Intrusion, loitering, line crossing and face detection; unattended/missing object and crowd detection |
| Licensed Analytics |
Running, parking violation and restricted zone detection require a licence |
| Audio |
Built-in microphone; full-duplex two-way audio and external audio connections require AO-015 cable and suitable external audio equipment |
| Alarm I/O |
1 digital input / 1 digital output via AO-015 cable |
| Storage |
microSD / SDHC / SDXC up to 1TB; NAS recording supported |
| Network / ONVIF |
10/100Mbps Ethernet; ONVIF Profiles G, S, T and M |
| Security |
Secure boot, signed firmware, TPM 2.0; Trend Micro IoT Security with 3-year trial |
| Power |
IEEE 802.3af PoE Class 3 |
| Power Consumption |
Maximum 12.4W IR on / 9.6W IR off |
| Housing |
IP66 / IK10 / NEMA Type 4X |
| Operating Temperature |
Start: −20°C to 50°C; working: −35°C to 60°C IR off / −35°C to 50°C IR on |
| Dimensions / Weight |
134mm diameter × 116mm high / 960g |
| Manufacturer Warranty |
60 months, subject to applicable Australian supply and warranty terms |
Power, Storage and Installation Requirements
Use a compatible IEEE 802.3af PoE source, suitable network cabling and a recorder or video management platform supporting the camera’s resolution and required analytics. A microSD card, AO-015 cable and mounting accessories are supplied separately. Storage retention depends on capacity, bitrate and recording schedules.
Compare other Vivotek dome cameras or explore the wider Vivotek security range. CTC can help match coverage, recording equipment and mounting options to your property.
