Best For: Entrances, driveways and commercial access areas needing fixed 5MP coverage, AI people and vehicle detection, and recorded audio.

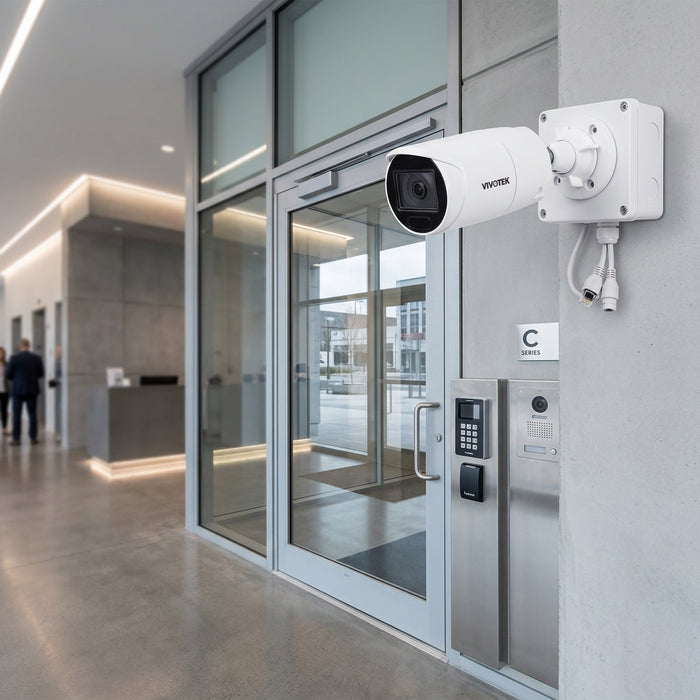

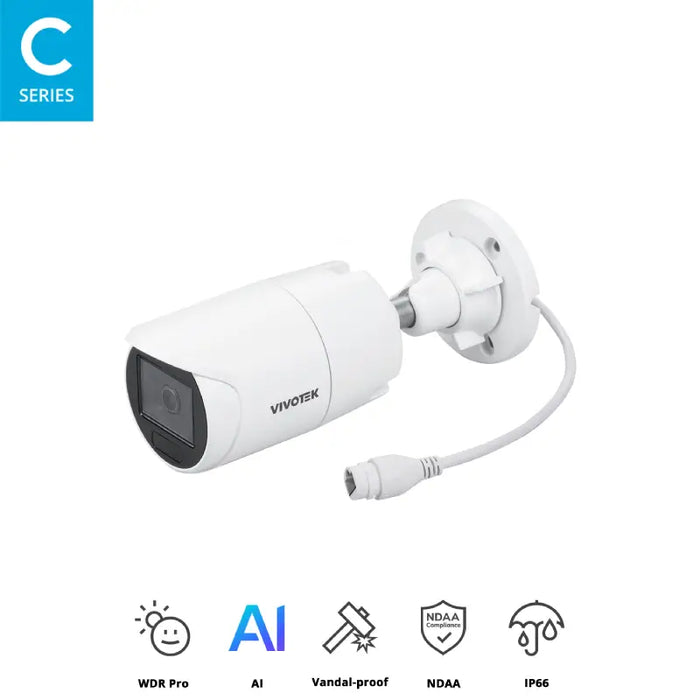

Vivotek IB9383-HV 5MP AI Bullet Camera with 3.6mm Lens & Microphone
The Vivotek IB9383-HV combines 5MP video at up to 30fps with a 3.6mm fixed lens and built-in microphone. AI detection helps identify relevant activity, while WDR Pro and up to 30m infrared illumination support monitoring in changing light.
This listing is for the original IB9383-HV with the 3.6mm lens. CTC Communications supplies security equipment Australia-wide and provides professional CCTV installation across Sydney.
Key Features
- 5MP video at up to 30fps, with up to 60fps at 1080p.
- 3.6mm fixed lens with a 79.6° horizontal view.
- AI people and vehicle detection with Vision Object Analytics.
- Smart VCA for intrusion, loitering, line crossing and face detection.
- Built-in microphone for one-way audio recording.
- 120dB WDR Pro and up to 30m Smart IR.
- IP66 weather protection and IK10 impact resistance.
- H.265 compression, Smart Stream III and microSD recording support.
- Secure boot and signed firmware.
- IEEE 802.3af PoE power.
Fixed Lens for Consistent Coverage
The 3.6mm fixed lens provides a consistent 79.6° horizontal view. Plan the camera position around the entrance or activity area you need to monitor, allowing enough detail at important points. For installations requiring adjustable framing, compare motorised lens models in our Vivotek bullet camera range.
AI Detection and Supported Search Functions
Vision Object Analytics detects people and two- or four-wheeled vehicles. Attribute and path information can support searches on compatible recording platforms. Configure intrusion, loitering and line crossing rules around relevant activity areas. Face detection identifies the presence of a face; it does not establish a person’s identity.
Confirm analytics, search compatibility, firmware requirements and any additional licences with your selected recorder or video management software. Some advanced detection applications require separate licensing.
WDR Pro and Infrared Night Viewing
WDR Pro helps retain detail where bright and shaded areas meet. Smart IR adjusts infrared intensity to help reduce overexposure at night, providing black-and-white viewing with a rated illumination range of up to 30m. Useful identification distance depends on camera placement, lighting and image detail at the target.
Built-in Microphone and Outdoor Protection
The built-in microphone records audio alongside video on supported systems. Audio is one-way; this model does not provide a built-in speaker or two-way talk. The IP66 housing and IK10 impact rating suit outdoor surveillance where weather and physical protection matter.
Technical Specifications
| Brand / Model |
Vivotek / IB9383-HV (3.6mm) |
| Camera Type |
Outdoor fixed bullet network camera |
| Image Sensor |
1/2.8" progressive CMOS |
| Resolution / Frame Rate |
2560 × 1920 (5MP), up to 30fps; up to 60fps at 1920 × 1080 |
| Lens |
3.6mm fixed lens, F2.0 |
| Field of View |
79.6° horizontal / 57.8° vertical / 105.8° diagonal |
| WDR |
120dB WDR Pro |
| Infrared |
Up to 30m with Smart IR |
| Minimum Illumination |
0.055 lux colour / 0.005 lux black-and-white at F2.0; 0 lux with IR on |
| Compression / Streaming |
H.265 / H.264 / MJPEG; Smart Stream III; 3 video streams |
| AI Analytics |
People and two-/four-wheeled vehicle detection; attribute, path and Re-Search extraction on compatible platforms |
| Smart VCA |
Intrusion, loitering, line crossing and face detection; additional applications may require licences |
| Audio |
Built-in microphone; one-way audio recording |
| Storage |
microSD / SDHC / SDXC up to 1TB; NAS recording supported |
| Network |
10/100Mbps Ethernet; ONVIF support |
| Hardware |
Original IB9383-HV: 2GB RAM / 8GB flash |
| Security |
Secure boot, signed firmware, HTTPS, IEEE 802.1x; Trend Micro IoT Security |
| Power |
IEEE 802.3af PoE Class 3 |
| Power Consumption |
Maximum 10.6W IR on / 6.0W IR off |
| Housing |
IP66 weather protection / IK10 impact resistance |
| Operating Temperature |
Start: −10°C to 50°C; working: −30°C to 55°C IR off / −30°C to 50°C IR on |
| Dimensions / Weight |
91mm diameter × 226.6mm / 925g |
Power, Storage and Installation Requirements
Use a compatible IEEE 802.3af PoE source, network cabling and recording equipment. Arrange any required mounting accessories and microSD card separately. Recording retention depends on storage capacity, bitrate and recording schedules.
Explore the wider Vivotek security range for cameras and recording equipment. CTC can help match coverage, system compatibility and installation requirements to your property.
