Best For: Homes, shops, offices and outdoor entrances needing a wide view, AI people and vehicle detection, and audio recording in a compact turret camera.

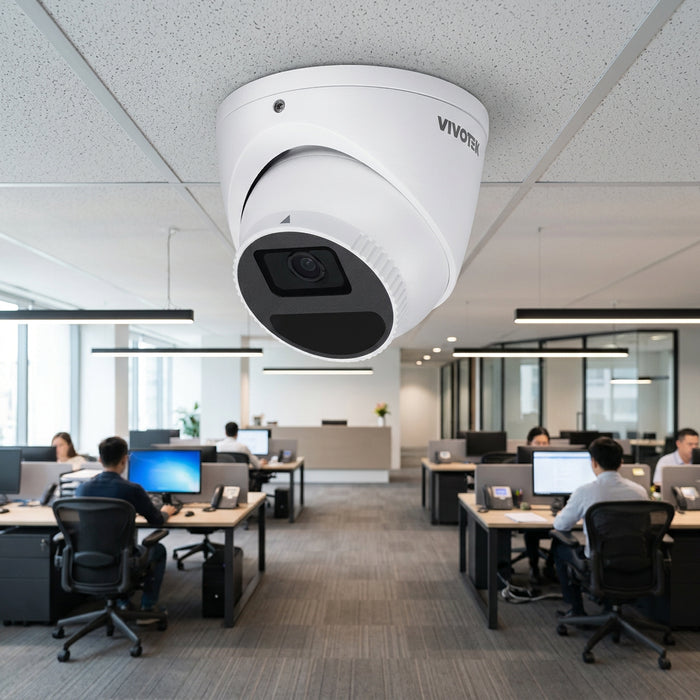

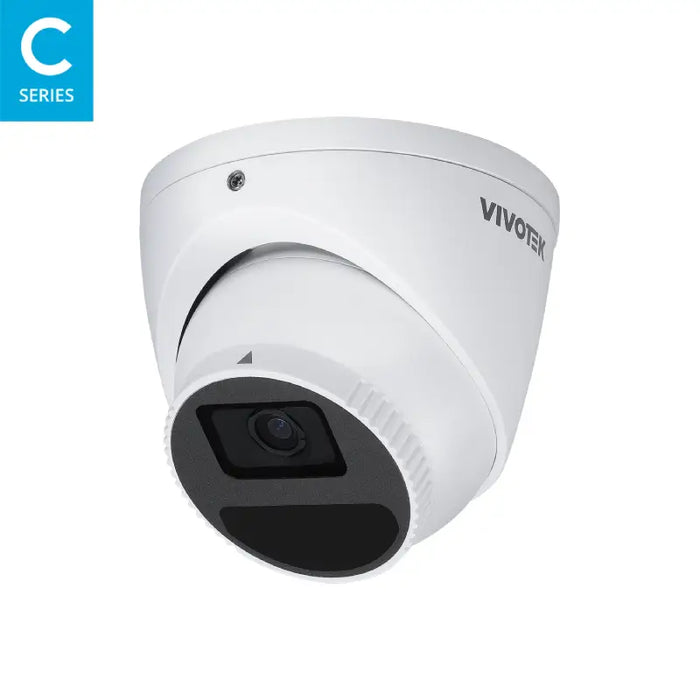

Vivotek IT9380-HV-V2 5MP Outdoor AI Turret Camera with 2.8mm Lens & Microphone
The Vivotek IT9380-HV-V2 combines 5MP video at up to 30fps with AI detection and a built-in microphone. Its fixed 2.8mm lens provides a broad 111° horizontal view, while WDR Pro and up to 30m Smart IR support monitoring in changing light.
Part of Vivotek’s C Series AI range, this metal turret camera offers IP66/IP67 weather protection and IK10 impact resistance. CTC Communications supplies security equipment Australia-wide and provides professional CCTV installation across Sydney.
Key Features
- 5MP resolution at up to 30fps.
- 2.8mm fixed lens with a wide 111° horizontal view.
- Vision Object Analytics detects people and four-wheeled vehicles.
- Smart VCA supports intrusion, loitering and line crossing detection.
- Built-in microphone for audio recording.
- Up to 30m Smart IR and 120dB WDR Pro.
- IP66/IP67 weather protection and IK10 metal housing.
- H.265 compression and Smart Stream III.
- PoE or 12V DC power, microSD recording and alarm I/O.
AI Detection for Relevant Activity
Vision Object Analytics distinguishes people and four-wheeled vehicles, helping focus monitoring on relevant activity. Configure intrusion, loitering and line crossing rules around entrances, boundaries or restricted areas. Confirm which notifications, analytics and bestshot or path functions your chosen recorder or video management platform supports.
Wide Coverage and Infrared Night Viewing
The fixed 2.8mm lens suits broader views of shopfronts, access areas and property entrances. WDR Pro helps retain detail where bright and shaded areas meet. Smart IR adjusts infrared intensity to help reduce overexposure at night, with black-and-white illumination rated up to 30m. Useful identification distance depends on placement, lighting and the image detail captured at the target.
Built-in Microphone and Audio Connections
The built-in microphone supports audio recording without an external microphone. External line input and output connections allow compatible audio equipment to be integrated. Two-way audio requires an appropriate external speaker; this camera has no built-in speaker. One digital input and one digital output support compatible alarm integration.
Technical Specifications
| Brand / Model |
Vivotek / IT9380-HV-V2 |
| Series / Camera Type |
C Series AI / Outdoor network turret |
| Image Sensor |
1/2.7" progressive CMOS |
| Resolution / Frame Rate |
2880 × 1616 (5MP), up to 30fps |
| Lens |
2.8mm fixed focal lens, F1.6 |
| Field of View |
111° horizontal / 59° vertical / 133° diagonal |
| WDR |
120dB WDR Pro |
| Infrared |
Up to 30m with Smart IR; removable IR-cut filter |
| Minimum Illumination |
0.055 lux colour / 0.005 lux black-and-white at F1.6; 0 lux with IR on |
| Compression / Streams |
H.265 / H.264 / MJPEG; Smart Stream III; 3 video streams |
| AI Detection |
People and four-wheeled vehicles; human / vehicle bestshot and path extraction |
| Smart VCA |
Intrusion, loitering and line crossing detection; Smart Motion Detection |
| Audio |
Built-in microphone; external line input / output; two-way audio with suitable external speaker |
| Alarm I/O |
1 digital input / 1 digital output |
| Storage |
microSD / SDHC / SDXC up to 1TB; NAS recording supported |
| Network / ONVIF |
10/100Mbps Ethernet; ONVIF Profiles G, S and T |
| Cybersecurity |
Signed firmware, HTTPS, IEEE 802.1x; Trend Micro IoT Security with 1-year trial |
| Power |
IEEE 802.3af PoE Class 3 or 12V DC |
| Power Consumption |
PoE: maximum 5.87W, typical 2.7W; DC: maximum 5.76W |
| Housing |
Metal housing; IP66 / IP67 weather protection; IK10 impact resistance |
| Operating Temperature |
−30°C to 60°C |
| Dimensions / Weight |
105mm diameter × 82.8mm high / 537g |
| Manufacturer Warranty |
3 years, subject to applicable warranty terms |
Power, Storage and Installation
Use a compatible IEEE 802.3af PoE source or a suitable 12V DC supply, network cabling and recording equipment. Arrange any required mounting accessories, external speaker and microSD card separately. Storage retention depends on capacity, bitrate and recording schedules.
Compare other Vivotek turret cameras or explore the wider Vivotek security range. CTC can help match camera coverage, recording equipment and mounting options to your property.
