Best For: Home entrances, driveways, shopfronts and business access areas needing AI detection, colour night viewing with warm light and audible deterrence.

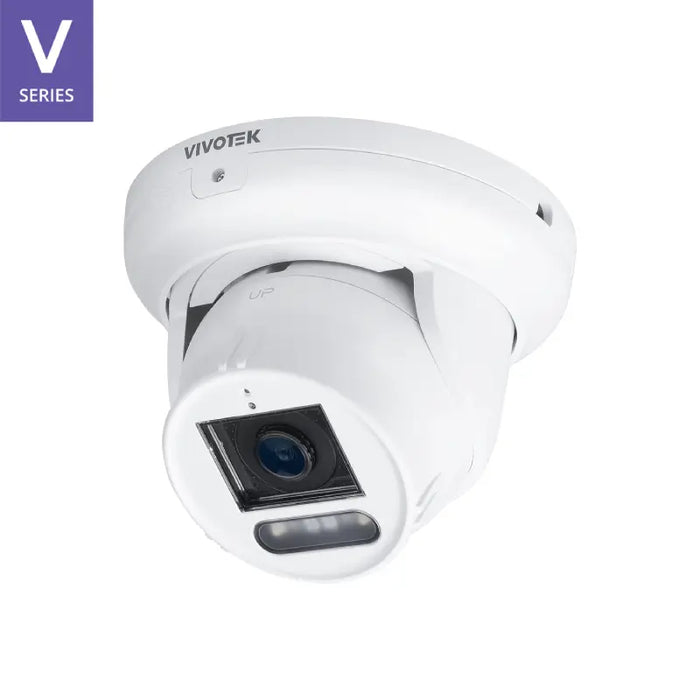

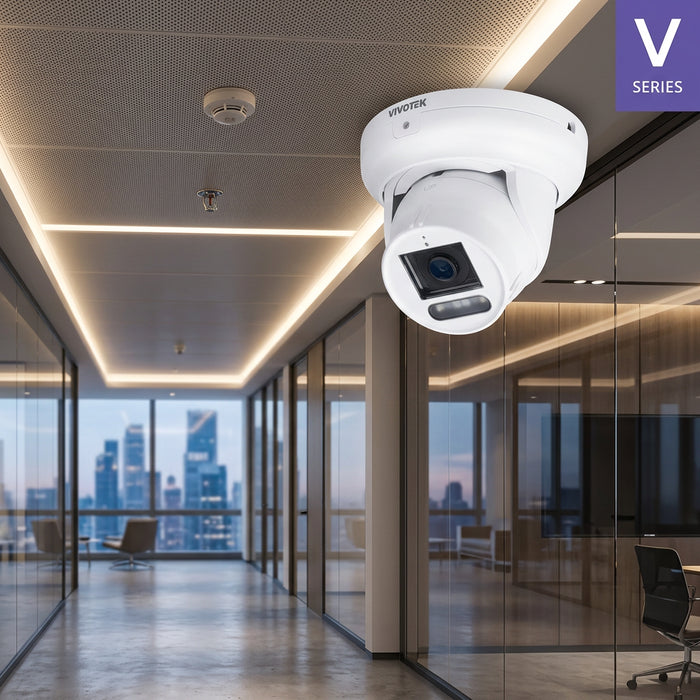

Vivotek IT9389-HTVW-V3 5MP Motorised Dual Light AI Turret Camera with Speaker
The Vivotek IT9389-HTVW-V3 combines 5MP video with dual-light illumination, AI detection and a built-in microphone and speaker. Its 2.8–12mm motorised lens provides remote focus and an adjustable 95.4°–28.7° horizontal view, while selectable lighting modes and audible alerts support a planned security response.
Part of Vivotek’s V Series, this outdoor turret offers up to 40m infrared illumination and 30m warm light. CTC Communications supplies security equipment Australia-wide and provides professional CCTV installation across Sydney.
Key Features
- 5MP video at up to 30fps; up to 60fps at 1080p.
- 2.8–12mm motorised varifocal lens with remote focus and P-iris.
- Switchable dual-light modes: 40m IR and 30m warm light.
- Built-in speaker for audible deterrence and live communication.
- Built-in microphone and full-duplex two-way audio.
- AI people and vehicle detection with Smart VCA.
- RealSight Engine and 120dB WDR Pro.
- IP66 weather protection and IK10 impact resistance.
- H.265 compression, Smart Stream III and microSD recording.
- Secure boot, signed firmware and TPM 2.0 hardware security.
Motorised Lens for Adjustable Coverage
The 2.8–12mm motorised lens lets your installer adjust framing and focus remotely, from a wider access area to a tighter entrance view. P-iris adjusts the aperture to help maintain image quality in changing light.
Dual Light for Night Viewing and Deterrence
Infrared illumination supports black-and-white viewing without visible lighting, while warm light supports colour footage when enabled. Configure the available lighting modes and event rules to suit your property and surrounding areas. Rated illumination ranges are up to 40m for IR and 30m for warm light; useful identification distance depends on placement, lighting and image detail at the target.
Built-in Speaker and Two-way Audio
The built-in microphone and speaker support full-duplex two-way audio and audible alerts on compatible systems. Configure alarm audio and live communication through your selected management platform. External microphone input and line output connections are also available for compatible audio equipment.
AI Monitoring and Supported Search
Vision Object Analytics detects people and two- or four-wheeled vehicles, providing bestshots, paths and attributes for supported recording platforms. Configure intrusion, loitering and line crossing rules around entrances or boundaries. Face detection identifies the presence of a face; it does not establish a person’s identity.
Running, parking violation and restricted zone detection require an additional licence. Confirm analytics, search functions, audio support and licensing with your chosen recorder or video management software.
Image Quality in Changing Light
RealSight Engine combines Smart IR III, deblur, WDR, white balance and exposure control to help maintain useful detail in difficult scenes. Electronic image stabilisation uses a built-in gyro sensor to reduce the effects of camera vibration.
Technical Specifications
| Brand / Model |
Vivotek / IT9389-HTVW-V3 |
| Series / Camera Type |
V Series / Outdoor dual-light turret |
| Image Sensor |
1/2.8" progressive CMOS |
| Resolution / Frame Rate |
2560 × 1920 (5MP), up to 30fps; up to 60fps at 1080p |
| Lens |
2.8–12mm motorised varifocal lens, remote focus, F1.6–F3.3, P-iris |
| Field of View |
95.4°–28.7° horizontal / 68.8°–21.5° vertical / 129.6°–35.9° diagonal |
| WDR |
120dB WDR Pro |
| Night Illumination |
Infrared up to 40m / warm light up to 30m; switchable dual-light modes |
| Minimum Illumination |
0.04 lux colour / 0.005 lux black-and-white at F1.6; 0 lux with IR on |
| Image Enhancement |
RealSight Engine; Smart IR III, deblur, WDR, white balance and exposure control; electronic image stabilisation |
| Compression / Streams |
H.265 / H.264 / MJPEG; Smart Stream III; 3 video streams |
| Vision Object Analytics |
People and two-/four-wheeled vehicles; attributes, bestshots, paths and Re-Search extraction |
| Smart VCA |
Intrusion, loitering, line crossing and face detection; unattended/missing object and crowd detection |
| Licensed Analytics |
Running, parking violation and restricted zone detection require a licence |
| Audio |
Built-in microphone and speaker; full-duplex two-way audio; external microphone input / line output |
| Alarm I/O |
1 digital input / 1 digital output |
| Storage |
microSD / SDHC / SDXC up to 1TB; NAS recording supported |
| Network / ONVIF |
10/100Mbps Ethernet; ONVIF Profiles G, S, T and M |
| Security |
Secure boot, signed firmware, TPM 2.0; Trend Micro IoT Security with 3-year trial |
| Power |
IEEE 802.3af PoE Class 3 |
| Power Consumption |
Maximum 12.4W IR on / 9.6W IR off |
| Housing |
IP66 weather protection / IK10 impact resistance |
| Operating Temperature |
Start: −10°C to 50°C; working: −30°C to 50°C IR off / −30°C to 45°C IR on |
| Dimensions / Weight |
137.9mm diameter × 116.9mm high / 780g |
| Manufacturer Warranty |
5 years, subject to applicable Australian supply and warranty terms |
Power, Storage and Installation Requirements
Use a compatible IEEE 802.3af PoE source, suitable network cabling and recording equipment supporting the required resolution, audio and analytics. A microSD card and mounting accessories are supplied separately. Recording retention depends on capacity, bitrate and recording schedules.
Compare other Vivotek turret cameras or explore the wider Vivotek security range. CTC can help match camera coverage, recording equipment and installation requirements to your property.
