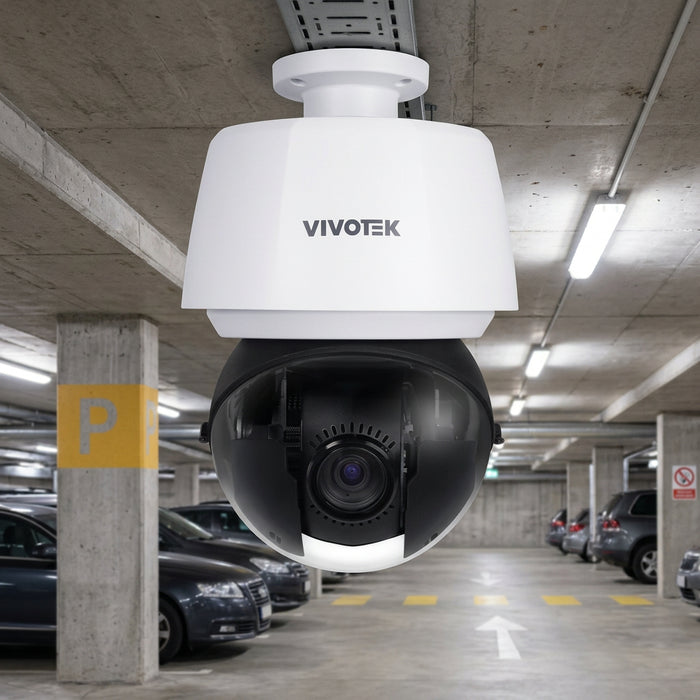

Best For: Commercial yards, car parks and larger sites with suitable lighting, needing optical zoom, remote camera movement and configured AI tracking.

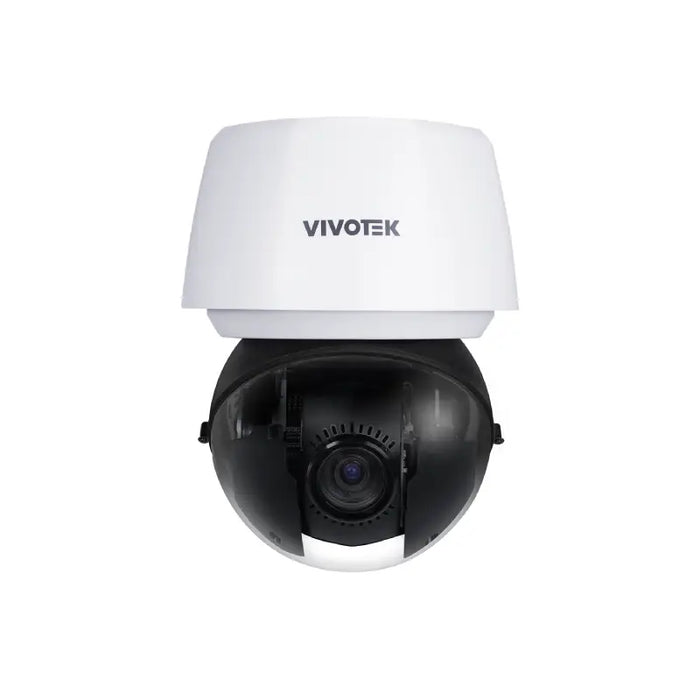

Vivotek SD9367-EHL V Series 2MP Smart AI PTZ Camera with 40x Optical Zoom
The Vivotek SD9367-EHL combines Full HD imaging with optical zoom and intelligent activity monitoring. Use remote pan and tilt to follow activity, or configure preset views around important access points. Available from CTC Communications with Australia-wide delivery and professional Sydney installation.
Key Features
- 2MP video with 40× optical zoom and autofocus.
- AI-based Smart Tracking Advanced and object analytics.
- Continuous pan, preset locations and patrol tours.
- WDR Pro and electronic image stabilisation.
- Outdoor housing with IP66, IK10 and NEMA 4X protection.
Optical Zoom and PTZ Coverage
Optical zoom lets an operator move from a broad overview to a closer view of activity. Configure presets and patrol routes around entrances, vehicle paths and areas requiring attention. Check useful image detail at the actual viewing distances during commissioning.
A PTZ records the direction it is facing. Pair it with fixed cameras where continuous coverage of several areas is essential. Camera placement and lens framing matter more than digital enlargement when you need identifiable evidence.
AI Tracking and Event Monitoring
Smart Tracking Advanced helps follow moving subjects in a configured scene. Vision Object Analytics supports people and vehicle analysis, while supported Smart VCA events help focus recording on relevant activity. Confirm firmware compatibility, recording-platform support and any licences for advanced analytics before ordering.
Test tracking zones and notifications under typical site conditions. Lighting, positioning, subject distance and obstructions affect performance. Configure the system around the activity you need to monitor.
Lighting and Audio Requirements
This model has no built-in infrared illuminators. Provide suitable ambient or external lighting for night-time recording. WDR helps manage bright and shaded areas, but low-light capability does not replace lighting in complete darkness.
Two-way audio uses external equipment. Arrange a suitable microphone, powered speaker and the AO-008 connection cable where audio is required. Confirm the supplied accessories and recording-platform audio support with CTC.
Technical Specifications
| Brand / Model |
Vivotek / SD9367-EHL |
| Series / Camera Style |
V Series / PTZ |
| Maximum Resolution |
1920 × 1080 (2MP) |
| Frame Rate |
30 fps with WDR on; 60 fps with WDR off |
| Lens |
4.25–170 mm; 40× optical zoom with autofocus |
| Field of View |
65.7°–1.9° H / 39.4°–1.1° V |
| Pan / Tilt |
360° continuous pan; −20° to +90° tilt with auto flip |
| Presets |
256 locations; up to 128 presets per tour |
| WDR / Stabilisation |
120 dB WDR Pro / electronic image stabilisation |
| Infrared Illumination |
No built-in IR illuminators; ambient or external lighting required |
| Compression |
H.265 / H.264 / MJPEG; Smart Stream III |
| AI Features |
Smart Tracking Advanced; Vision Object Analytics; supported Smart VCA |
| Audio |
External line input and output via AO-008 cable; external audio equipment required |
| Recording |
microSD / SDHC / SDXC and supported NAS |
| Power |
IEEE 802.3at PoE+ Class 4 / 48 V DC / 24 V AC |
| Maximum Consumption |
22.5 W heater and fan off; 25.5 W on |
| Housing |
IP66 / IK10 / NEMA 4X |
| Working Temperature |
−40°C to 55°C |
Power and Recording Requirements
Use a compatible PoE+ source and allow for the camera’s full power requirement, including its heater and fan. Confirm the switch or injector power budget and cable run before installation. Alternative power inputs are listed above.
Arrange mounting accessories, network cabling and suitable recording storage. Retention depends on capacity, bitrate and schedule. Check recorder resolution, event support and remote viewing requirements alongside the camera specification.
Build Your Vivotek CCTV System
Compare our Vivotek PTZ cameras or explore the full Vivotek camera range. Combine movable coverage with fixed views at important entrances and activity points.
Professional CCTV Installation
CTC Communications provides CCTV installation across Sydney, including camera placement, cabling, recording configuration and commissioning.
