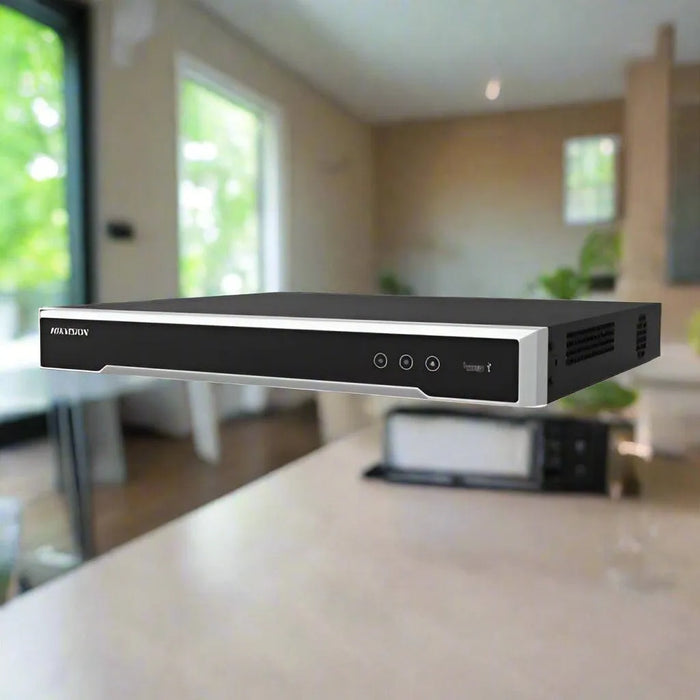

Hikvision DS-7608NI-M2-8P 8 Channel M Series Network Video Recorder no HDD

The DS-7608NI-M2-8P is an 8 channel NVR from Hikvision's M Series, designed for easy plug-and-play set-up. It supports H.264+ intelligent compression with dual-stream recording, helping you reduce both bandwidth and storage usage by up to 50%.

Additionally, this NVR combines multiple advanced technologies such as audio and video decoding technology, network technology and intelligent technology.

Enjoy a reliable security network with Hikvision's M Series Network Video Recorder. Keep your home and business secure with a range of advanced features, from motion detection to instant alerts.

Featuring 8 PoE network interfaces for easy plug and play setup and capable of 8K(UHD) video output via HDMI and 1080P via VGA, this NVR supports up to 32MP resolution recording.

This high performance, and reliable unit is flexible and best suited for decent-sized domestic and commercial installations where a complete HD surveillance experience is required.

Specifications : Hikvision 8 Channel M-Series PoE NVR, H.265, 8K, 2 Bay

Professional and Reliability

• H.265+ compression effectively reduces the storage space by up to 75%
• Dual-stream recording saves bandwidth
• Adopt stream over TLS encryption technology which provides more secure stream transmission service
• Support double verification for playback and downloading
• Solar-powered camera is connectable through OTAP protocol. NVR would get stream when user requests, and camera would send back videos according to the schedule

HD Video Output

• Provide independent HDMI and VGA outputs
• HDMI video output at up to 8K resolution

Storage and Playback

• Up to 2 SATA interfaces for HDD connection
• 8-ch synchronous playback

Smart & POS Function

• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
• POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access

• 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• Smooth streaming technology
• Support web access without plug-in

Features

• H.265+/H.265/H.264+/H.264 video formats

• Up to 8-ch IP camera inputs
• Up to 8-ch@8 MP decoding capacity
• Up to 128 Mbps incoming bandwidth

Specifications

• Video And Audio
• IP Video Input
• 8-ch
• Up to 32 MP resolution
• *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
• Incoming Bandwidth128 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output Mode HDMI/VGA independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

• Decoding
• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution

  32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

  *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

• Synchronous Playback8-ch
• Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
• Dual-Stream Recording Support
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

• Network
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 16 TB capacity for each HDD
• Alarm In/Out4/1
• USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

• Power Supply12 VDC, 3.33 A
• Consumption≤ 15 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
• Weight≤ 3 kg (without HDD, 2.2 lb.)

• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CE

  EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

  9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
