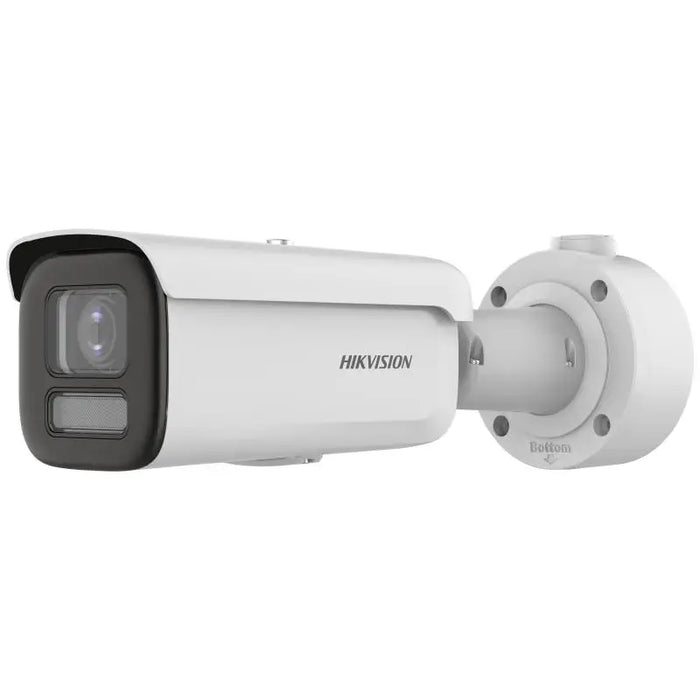

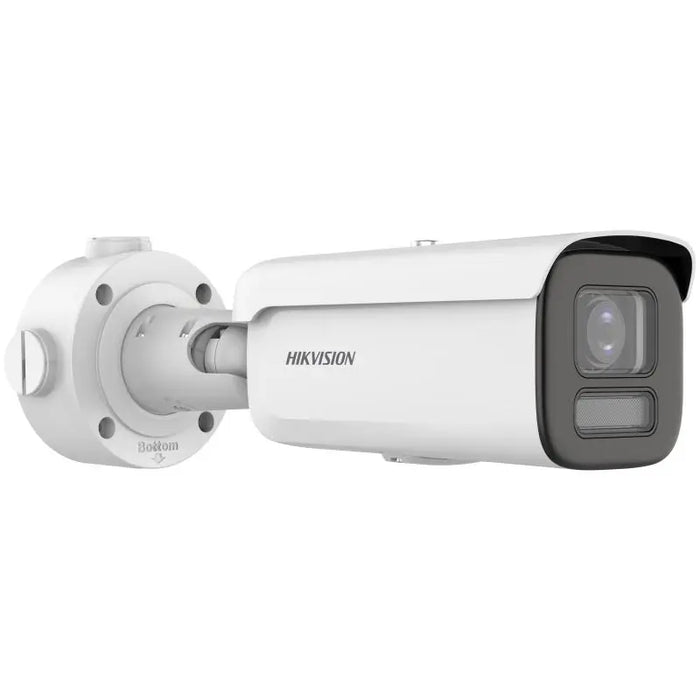

Hikvision DS-2CD3686G2HT-LIZS(Y) 8MP Motorised Varifocal Bullet Camera
The Hikvision DS-2CD3686G2HT-LIZS(Y) is an 8MP motorised varifocal bullet network camera designed for detailed surveillance across large or demanding sites. Its 2.7–13.5mm lens allows the viewing angle to be adjusted remotely, while DarkFighter S and Smart Hybrid Light support clear monitoring in changing light conditions.
Best For
Warehouses, commercial properties, car parks, loading areas, schools and building perimeters requiring 8MP detail, adjustable viewing angles and long-range night-time illumination.
Key Features
- 8MP resolution with a maximum image size of 3840 × 2160
- 2.7–13.5mm motorised varifocal lens with remote zoom and focus adjustment
- Wide 112.3° to 41.2° horizontal field of view
- DarkFighter S technology for improved low-light image quality
- Smart Hybrid Light with infrared and white-light modes
- Supplemental illumination up to 60 metres
- Human and vehicle classification based on deep learning
- 120 dB WDR for clearer detail in high-contrast scenes
- H.265+ compression to reduce bandwidth and storage requirements
- Hikvision Embedded Open Platform 2.0 support
- IP67 weather-resistant metal housing
Ideal Use Cases
The adjustable varifocal lens makes this camera suitable for locations where a fixed lens may not provide the required framing. Installers can set a wider view for entrances and open areas or zoom in for more focused monitoring of gates, loading bays, access points and perimeter zones.
Explore more Hikvision bullet cameras or browse the complete Hikvision CCTV surveillance range to compare compatible cameras, recorders and accessories.
Motorised Varifocal Lens
The 2.7–13.5mm motorised lens provides a horizontal field of view from 112.3° at the widest setting to 41.2° when zoomed. Remote lens adjustment helps the installer achieve the required coverage and level of detail without physically changing the lens position.
Smart Hybrid Light and DarkFighter S
DarkFighter S technology helps preserve useful image detail in low-light conditions. Smart Hybrid Light provides infrared, white-light or hybrid operating modes with illumination up to 60 metres, allowing the camera response to be configured for the site.
Intelligent Event Detection
Deep-learning analytics can distinguish people and vehicles from other movement, helping reduce unnecessary alerts. The camera is suitable for perimeter monitoring and event-based surveillance when connected to a compatible Hikvision recorder.
Remote Access with Hik-Connect App
When connected to a compatible Hikvision network video recorder or configured network, the camera can be viewed remotely through the Hik-Connect app. Recorder compatibility, event notifications and remote features depend on the system configuration.
Technical Specifications
-
Model: DS-2CD3686G2HT-LIZS(Y)
-
Camera type: Motorised varifocal bullet network camera
-
Image sensor: 1/1.8-inch Progressive Scan CMOS
-
Maximum resolution: 3840 × 2160
-
Lens: 2.7–13.5mm motorised varifocal, F1.2
-
Horizontal field of view: 112.3° to 41.2°
-
Minimum illumination: 0.0028 Lux in colour; 0 Lux with supplemental light
-
Supplemental light: Infrared and white light up to 60 metres
-
Wide dynamic range: 120 dB WDR
-
Video compression: H.265+, H.265, H.264+ and H.264
-
Smart detection: Human and vehicle classification
-
Platform: HEOP 2.0
-
Protection: IP67 weather resistance
What Is Included?
- 1 × Hikvision DS-2CD3686G2HT-LIZS(Y) motorised varifocal bullet network camera
Please note: Network video recorder, surveillance hard drive, cabling, power supply, mounting accessories and installation are not included unless specified separately.
Professional CCTV Installation
Professional configuration is recommended to optimise lens positioning, image settings, night-time illumination and recorder compatibility. CTC Communications offers professional CCTV installation across Sydney, with security products available for Australia-wide delivery.
