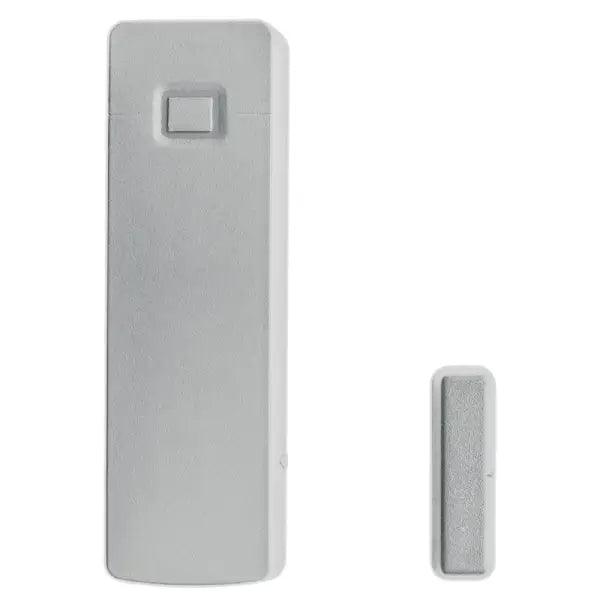

Hills Reliance RF-DC101-K4 Wireless Door and Window Reed Switch

Name: Hills Reliance RF-DC101-K4 Wireless Door and Window Reed Switch
SKU: RF-DC101-K4
Price: 69.41 AUD

SKU RF-DC101-K4

by Hills

Availability:

in stock, ready to be shipped

The Hills Reliance RF-DC101-K4 is a wireless surface-mounted reed switch for protecting indoor doors, windows, cabinets and other openings. It uses the 433 MHz 80+ wireless platform and is compatible with Hills Reliance XR and XRPro alarm systems.

Dual reed switches for flexible positioning
Wall and cover tamper protection
Input for a compatible supervised hardwired contact
Up to five years of battery life

$69.41 - $69.41

$69.41

$69.41 - $69.41

$69.41

Quantity

Shipping & Refunds

Shipping Refund Policy

Best For

Adding wireless protection to doors, windows, cabinets and other indoor openings on a Hills Reliance XR or XRPro alarm system.

Wireless Door and Window Protection

The Hills Reliance RF-DC101-K4 is a surface-mounted wireless reed switch for monitoring the open or closed status of an indoor door, window, cabinet or similar entry point. It communicates with compatible Hills Reliance XR and XRPro alarm systems using the 433 MHz 80+ wireless protocol.

Key Features

433 MHz 80+ wireless communication
Compatible with Hills Reliance XR and XRPro alarm systems
Dual reed switches for flexible mounting orientation
Selectable terminals for monitoring a compatible supervised hardwired contact wirelessly
Wall and cover tamper protection
Battery pull tab for straightforward initial activation
Up to five years of battery life, depending on use and operating conditions
Designed for indoor installations

What Is Included

1 × Hills Reliance RF-DC101-K4 wireless reed switch
High-strength magnet
Multiple mounting spacer types

The available product information does not specify the battery type or list additional installation consumables. The alarm panel and other system devices are sold separately.

Compatibility

The RF-DC101-K4 is designed for Hills Reliance XR and XRPro alarm systems using the 433 MHz 80+ wireless platform. It is not described as compatible with earlier Hills Reliance NX receivers or alarm systems from other brands.

Before ordering, confirm the alarm system model, wireless platform and available device capacity.

Flexible Reed Switch Placement

Dual reed switches provide more flexibility when positioning the detector and magnet. The supplied spacers help align the components where door or window frames are uneven, while the high-strength magnet supports dependable opening detection when installed within the permitted gap.

Supervised Contact Input

The selectable terminal block can be used to monitor a compatible supervised hardwired contact through the wireless transmitter. This can help incorporate a suitable wired contact into an XR or XRPro wireless installation. Wiring and supervision requirements should be confirmed by the installer.

Battery and Tamper Protection

The detector offers up to five years of battery life depending on activation frequency, wireless conditions and the installation environment. Wall and cover tamper protection helps notify the alarm system if the detector is opened or removed from its mounting surface.

Technical Summary

Brand: Hills Reliance
Model: RF-DC101-K4
Product type: Wireless surface-mounted reed switch
Compatible systems: Hills Reliance XR and XRPro
Wireless frequency: 433 MHz
Wireless protocol: 80+
Reed switches: Dual
Tamper protection: Wall and cover
Advertised battery life: Up to five years
Installation environment: Indoor

Professional Installation Recommended

Professional installation is recommended to confirm compatibility, correctly enrol the device, align the switch and magnet, test the wireless signal and configure any connected supervised contact. CTC Communications offers alarm installation across Sydney.

Why Buy from CTC Communications?

Specialist support for Hills Reliance alarm systems
Fast Australia-wide delivery
Professional security alarm installation available across Sydney

View the Hills Reliance XR range or browse more Hills Reliance alarm accessories.

Warranty

Hills Reliance Security Alarm System intrusion products are covered by a 2 years warranty from the date of purchase.
Postage costs for all replacement parts are at the users expense.
CTC Communications offer a 1 year warranty on labour when the system is installed by us.
We will not warranty the labour cost of replacement.
