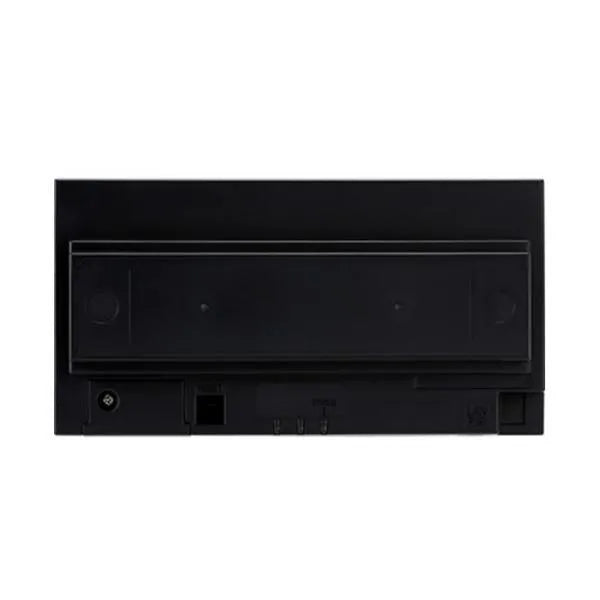

Aiphone IXGW-GW Gateway Adaptor for IXG Mobile App Calling
Extend visitor answering to mobile devices with the Aiphone IXGW-GW gateway adaptor. Designed for a compatible IXG IP multi-tenant intercom system, it connects the configured intercom to cloud-based mobile apps so registered users can answer visitor calls and operate supported door release functions remotely.
Best For
Apartment buildings and multi-tenant properties adding mobile app answering to a compatible IXG intercom. Helps residents respond to visitors when away from the indoor station, with app access set up as part of the building's intercom system.
Key Features
-
Mobile visitor answering: Routes configured intercom calls to registered iOS or Android devices using the compatible IXG app.
-
Remote door release: Allows authorised users to operate supported door-release functions through the configured intercom system.
-
PoE powered: Receives network connectivity and power through an IEEE 802.3af PoE connection.
-
Multi-tenant integration: App registration and call routing are configured for the relevant building units.
-
DIN rail mounting: Installs alongside suitable indoor system equipment.
Technical Specifications
| Model / SKU |
IXGW-GW / APHIXGW-GW |
| Product type |
Mobile app gateway adaptor |
| System |
Aiphone IXG IP multi-tenant intercom system |
| Mobile app function |
Routes configured intercom calls to registered mobile devices |
| Supported mobile platforms |
iOS and Android; compatible AIPHONE IXG app required |
| Mobile registration |
Up to 8 mobile devices per unit, subject to system configuration and app licensing |
| Power source |
PoE, IEEE 802.3af Class 0 |
| Maximum power consumption |
2.9 W |
| Network interface |
Ethernet 10BASE-T / 100BASE-TX |
| Network cabling |
CAT5e / CAT6 straight-through cable; up to 100 m to PoE switch |
| Internet access |
Required for cloud-based mobile app communication |
| Mounting |
Wall-mounted DIN rail installation |
| Construction / colour |
Self-extinguishing resin / black |
| Operating temperature |
−10°C to +50°C |
| Dimensions |
210 mm (W) × 108.5 mm (H) × 61 mm (D); 62.2 mm deep with DIN rail |
| Weight |
Approximately 320 g; 350 g with DIN rail |
| Manufacturer warranty |
3 years |
Downloads
Installation Information
Gateway adaptor only: Requires compatible IXG intercom equipment, a suitable PoE network connection, internet access and system programming. Mobile devices also need internet access and the compatible app. Intercom stations, network equipment and installation are sold separately.
App licensing: Confirm the licences required for your building and whether any are included in the supplier package before ordering. This listing does not specify an included licence allocation.
Have the installer check firmware compatibility, gateway capacity, network settings and mobile app registration requirements for the proposed system. Door release requires correctly connected locking equipment.
CTC Communications offers professional installation across Sydney Metro. Send us your building plans and existing equipment details for advice. Discounted installation rates are available in the Seven Hills area.
