Best For
Property Type Homes, villas and townhouses
System Type IP video intercom
Indoor Display 4.3-inch colour monitor
Remote Access Hik-Connect app support
Compact IP Video Intercom Kit with Smartphone Access

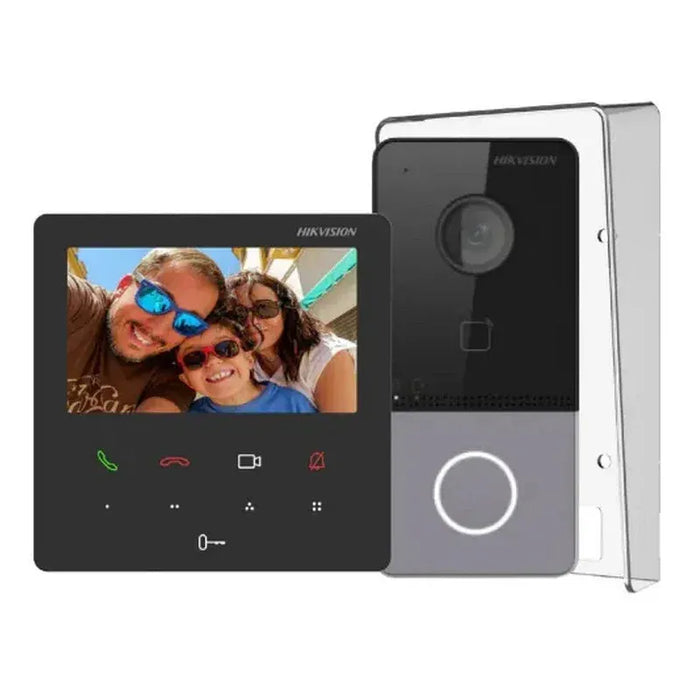

The Hikvision DS-KIS606-P 2MP IP Video Intercom Kit provides clear visitor identification, two-way communication and convenient door release for homes, villas and townhouses. Its compact outdoor station and 4.3-inch indoor monitor make it a practical choice where reliable everyday operation is more important than a large touchscreen.
When the system is correctly connected and configured, the Hik-Connect app allows authorised users to receive visitor calls, view the entrance, speak with visitors and remotely release a connected door lock from a compatible smartphone.
What’s Included in the DS-KIS606-P Kit?
Outdoor Door Station
1 × DS-KV6113-PE1(C)
Surface-mounted villa door station with a 2MP camera, one call button, two-way audio, MIFARE card reader and IP65-rated housing.
Indoor Monitor
1 × DS-KH6110-WE1
Compact 4.3-inch colour indoor station with touch-button controls, two-way audio, Wi-Fi connectivity and remote door release.
Rain Shield
1 × DS-KABV6113-RS
Protective surface-mount rain shield designed for the included villa door station.
Power Supplies
2 × power supply units
Power adapters are included for the door station and indoor monitor.
Key Features
-
2MP Full HD video
Clear 1920 × 1080 entrance video.
-
Wide-angle coverage
Approximately 131° horizontal field of view.
-
Improved difficult-light performance
120 dB WDR helps balance bright and shaded areas.
-
Night-time visibility
Built-in infrared illumination up to approximately 3 metres.
-
Two-way audio
Built-in microphone and speaker with echo cancellation.
-
Smartphone access
Remote calls and control through Hik-Connect.
-
Flexible power options
Supports standard PoE or 12 VDC.
-
Card access support
Integrated MIFARE card reader for authorised entry.
-
Outdoor-ready design
IP65-rated surface-mounted door station.
2MP Outdoor Door Station
The DS-KV6113-PE1(C) provides a clear view of visitors and a simple one-button calling experience.
- 2MP camera with Full HD main-stream video
- Wide-angle 131° horizontal and 78° vertical field of view
- 120 dB WDR for entrances with uneven lighting
- Infrared illumination up to approximately 3 metres
- Built-in omnidirectional microphone and loudspeaker
- Noise suppression and echo cancellation
- One physical call button
- IP65-rated outdoor housing and tamper input
4.3-Inch Indoor Monitor
The DS-KH6110-WE1 offers straightforward control in a compact format suitable for hallways, kitchens and other convenient indoor locations.
- 4.3-inch colour TFT display
- 480 × 272 display resolution
- Touch-button controls for calling and door release functions
- Built-in microphone and loudspeaker
- Noise reduction and echo cancellation
- 2.4 GHz Wi-Fi and RJ45 network connection
- Standard PoE or 12 VDC power
- Wall or compatible table mounting

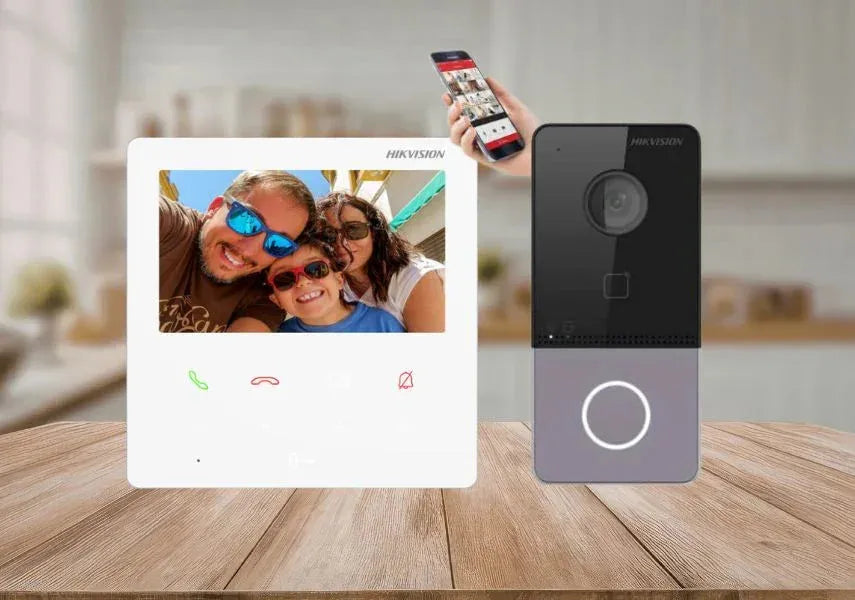

Hik-Connect Smartphone Control
Hik-Connect gives authorised users greater flexibility when they are away from the indoor monitor.
- Receive visitor calls on a compatible smartphone
- View live entrance video
- Speak with visitors using two-way audio
- Remotely release a connected electric lock
- Access the system from outside the property when internet and app services are available
Door Release and Access Control
The outdoor station includes a lock-control relay and supports connection to compatible door-release hardware. Its built-in MIFARE reader can also provide card-based access for authorised users.
Door hardware note: An electric strike, magnetic lock, exit button, door contact, cabling and any additional power equipment must be selected to suit the property and locking arrangement. These items are not included in the kit.
Power, Network and Installation Requirements
This is an IP intercom system. Reliable operation depends on suitable network access, power, cabling and correct configuration. Although the stations support Wi-Fi, a wired network or PoE connection may provide the most dependable option where appropriate.
- Door station: standard PoE or 12 VDC
- Indoor station: standard PoE or 12 VDC
- 2.4 GHz Wi-Fi support
- RJ45 10/100 Mbps network interfaces
- Hik-Connect configuration requires a suitable internet connection
- Door release requires compatible lock hardware and professional connection
CTC Communications offers Hikvision intercom installation across Sydney, including system configuration and advice on suitable lock-release hardware.
Ideal Applications
Homes and Villas
See and speak with visitors before granting access through a connected entrance door or gate.
Townhouses and Duplexes
A compact one-button solution for an individual residence or private entrance.
Gated Properties
Suitable for compatible pedestrian gates where video calling and remote release are required.
Small Offices
Provide reception or staff with visual confirmation before releasing a connected entry door.
Technical Specifications
Hikvision DS-KIS606-P technical specifications
| Specification |
Outdoor Door Station |
Indoor Monitor |
| Model |
DS-KV6113-PE1(C) |
DS-KH6110-WE1 |
| Camera / display |
2MP camera; up to 1920 × 1080 |
4.3-inch colour TFT; 480 × 272 |
| Viewing angle |
131° horizontal; 78° vertical |
Not applicable |
| Low-light support |
IR illumination up to approximately 3 m |
Not applicable |
| Audio |
Built-in microphone and loudspeaker |
Built-in microphone and loudspeaker |
| Network |
RJ45 10/100 Mbps; 2.4 GHz Wi-Fi |
RJ45 10/100 Mbps; 2.4 GHz Wi-Fi |
| Power |
IEEE 802.3af standard PoE or 12 VDC |
IEEE 802.3af standard PoE or 12 VDC |
| Installation |
Surface mounting |
Wall or compatible table mounting |
| Protection rating |
IP65 |
Indoor use |
| Dimensions |
138 × 65 × 27 mm |
120 × 120 × 21 mm |
| Operating temperature |
-40°C to 55°C |
-10°C to 50°C |
Specifications may change without notice. Confirm final compatibility and installation requirements before ordering.
View Hikvision manufacturer information
Compare Similar Hikvision Intercom Kits
Compare the DS-KIS606-P with other popular Hikvision video intercom kits. Always check the individual product page for current inclusions and installation requirements.
Comparison of popular Hikvision video intercom kits
| Model |
System Type |
Indoor Display |
Mounting / Wiring |
Best For |
DS-KIS606-P
Current product
|
IP video intercom |
4.3-inch colour display |
Surface mount; IP, PoE or 12 VDC |
Compact residential installations |
| DS-KIS602 |
IP video intercom |
7-inch touchscreen |
Surface mount; IP / PoE |
Homes and small businesses wanting a larger display |
| DS-KIS602(F) |
IP video intercom |
7-inch touchscreen |
Flush-mount entrance station; IP / PoE |
Properties requiring a streamlined flush finish |
| DS-KIS702Y-P |
Two-wire IP intercom |
7-inch touchscreen |
Power and data over two wires |
Retrofits and suitable existing two-wire cabling |
