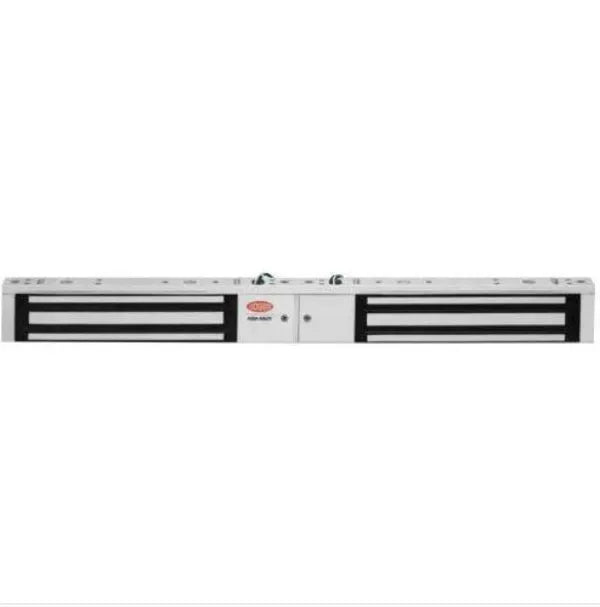

Assa Abloy Lockwood EMZ8-DN Magnetic Door Lock, Double Non- Monitored

SKU ASAEMZ8-DN
Availability:
In stock

Lockwood Magnetic Door Lock Double Non Monitored

Model: EMZ8-DN

Magnetic Door Lock Features

  • Fail-safe: unlocks when power is removed
  • Easy installation: suitable for both new and retrofit usage
  • High holding force: refer to the technical data overleaf
  • Self-alignment: armature plate pivots to accommodate door drop
  • Silent operation: no humming or buzzing
  • Dual voltage: site selectable 12 or 24 Vdc
  • Instantaneous release: smart electronics on the electromagnets eliminate residual magnetism
  • 5 Year Tricare Warranty (Padde Series)
Save 24% Save 24%
Original price $1,069.31
Original price $1,069.31 - Original price $1,069.31
Original price $1,069.31
Current price $810.08
$810.08 - $810.08
Current price $810.08
Shipping & Refunds

The EMZ8-DN is a double non monitored magnetic door lock designed for fail safe use, It operates on 12/24VDC and is part of the EMZ8 series.

The Lockwood Padde Series Double Series Electromagnetic Locks operate with holding forces from 500kg up to 1160kg.

Covering a range of applications these magnets are ideal for applications from access ways through to high-use commercial swing doors.

With fixing options including wood, aluminium and steel constructions as well as glass door applications, the range caters to most electromagnetic needs.

Model: EMZ8-DN

Features

  • Fail-safe: unlocks when power is removed
  • Easy installation: suitable for both new and retrofit usage
  • High holding force: refer to the technical data overleaf
  • Self-alignment: armature plate pivots to accommodate door drop
  • Silent operation: no humming or buzzing
  • Dual voltage: site selectable 12 or 24 Vdc
  • Instantaneous release: smart electronics on the electromagnets eliminate residual magnetism
  • 5 Year Tricare Warranty (Padde Series)
BRAND

ASSA ABLOY

SERIES

LOCKWOOD PADDE SERIES

ELECTRIC/MECHANICAL

ELECTRIC

DEVICE TYPE

DOUBLE MAG LOCK

MONITORED

NON MONITORED

FAIL SAFE/FAIL SECURE

FAIL SAFE (PTL)

MOUNTING

SURFACE MOUNT

FIRE RATING

4 HOUR FIRE RATING

POWER

MULTI VOLTAGE, 12VDC, 24VDC

WARRANTY

60 Months



    PDF Information

    Reviews

    Electronic Door Locks

    Frequently Asked Questions Magnetic Door Locks

    Magnetic door locks work by using a magnet to hold the door closed. The magnet is typically located on the door frame, and the metal armature is located on the door. When the door is closed, the magnet and armature come together and create a strong magnetic force that holds the door in place.

    • Monitored magnetic door locks are connected to a central security system. This allows the system to monitor the status of the door and to generate an alarm if the door is opened without authorization.
    • Monitored magnetic door locks are more secure than non-monitored door locks, but they are also more expensive.
    • Non-monitored magnetic door locks are not connected to a central security system. This means that they cannot generate an alarm if the door is opened without authorization.
    • Non-monitored magnetic door locks are less secure than monitored door locks, but they are also less expensive.
    • Magnetic door locks are used in a variety of commercial and industrial settings, including:
    • Office buildings
    • Schools
    • Hospitals
    • Hotels
    • Retail stores
    • Warehouses
    • Factories

    Magnetic door locks are very difficult to pick or force open, making them a good choice for securing valuable assets. However, it is important to note that no lock is completely foolproof, and a determined thief may still be able to break into a door that is secured with a magnetic lock.

    Installing a magnetic door lock is a relatively simple process that can be completed in a few minutes. The first step is to mark the location of the magnet and armature on the door frame and door. Once the locations are marked, the magnet and armature can be attached using the included screws.

    If your magnetic door lock is not working properly, there are a few things you can check. First, make sure that the magnet and armature are properly aligned. If they are not, the lock will not be able to create a strong enough magnetic force to hold the door closed. Second, check the wiring to make sure that there are no loose or damaged connections. Finally, check the power supply to make sure that it is providing enough power to the lock.

    • Magnetic door locks are very secure. They are difficult to defeat, even by experienced burglars.
    • Magnetic door locks are very reliable. They are not subject to mechanical failure, like traditional door locks.
    • Magnetic door locks are very convenient. They can be opened with a key card, a key fob, or a password.
