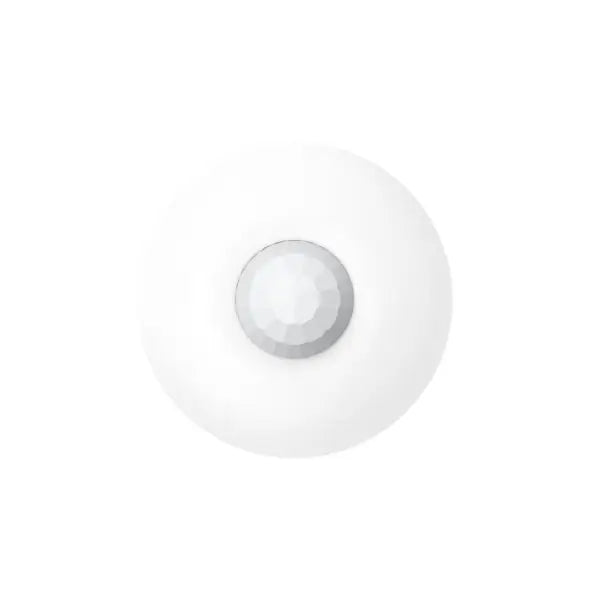

Hikvision AX PRO DS-PDCL12-EG2-WB Wireless 360° Ceiling PIR Detector

Hikvision AX PRO Wireless 360° Ceiling PIR Detector

The Hikvision DS-PDCL12-EG2-WB Wireless Ceiling PIR Detector provides wide-area indoor motion detection from a discreet ceiling-mounted device. Its 360-degree detection pattern makes it a practical choice for centrally positioned areas where a conventional wall-mounted detector may leave gaps in coverage.

Designed for compatible Hikvision AX PRO wireless alarm systems, the detector combines passive infrared sensing, advanced digital signal processing and secure two-way wireless communication. System settings can be configured remotely through the Hikvision app, helping simplify installation and ongoing system management.

Key Features

• 360° PIR detection: Provides all-around motion detection when installed in a suitable central ceiling position.
• 12 m detection range: Designed to protect larger indoor areas with fewer potential blind spots.
• 172 detection zones: Supports detailed motion detection across the detector’s coverage pattern.
• Smart Environmental Control: Advanced digital signal processing and 3D optics help provide stable and reliable detection.
• Secure Tri-X wireless communication: Uses two-way communication with AES-128 encryption and frequency hopping.
• Remote configuration: Detector settings can be managed through the compatible Hikvision app as part of an AX PRO system.
• Long battery life: Powered by one replaceable CR123A battery with up to five years of standby battery life.
• Tamper protection: Front and rear tamper monitoring helps alert the system if the detector is disturbed or removed.

Wide-Area Ceiling Motion Detection

Unlike a standard wall-mounted PIR, the DS-PDCL12-EG2-WB monitors movement around the detector from a ceiling position. This makes it particularly useful for open areas, intersecting corridors and rooms where movement may approach from several directions.

Digital temperature compensation, sealed optics, selectable sensitivity and white-light filtering help the detector maintain consistent performance under changing indoor conditions.

Secure AX PRO Wireless Communication

The detector communicates with a compatible Hikvision AX PRO control panel using two-way Tri-X wireless technology. AES-128 encryption and frequency hopping help protect the wireless connection, while signal-strength indication assists with correct detector placement during installation.

The quoted wireless transmission range is up to 1 km in open space. Actual range inside a property will vary depending on walls, construction materials, interference and the position of the alarm panel.

Ideal Applications

• Open-plan living and dining areas
• Hallways and connecting corridors
• Offices and reception areas
• Retail shops and display areas
• Meeting rooms and shared workspaces
• Indoor areas requiring discreet ceiling-mounted detection

Technical Specifications
