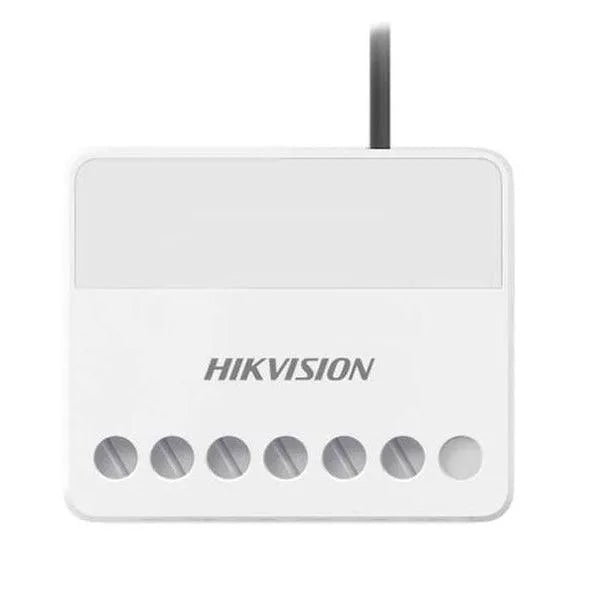

Hikvision DS-PM1-O1L-WB AX Pro Wireless Relay Module

The DS-PM1-O1L-WB relay module with small case design, which can be put into hiding places easily automation operating, one button turn on/off from APP/Keyfob/Keypad.

Model: DS-PM1-O1L-WB

Features

• 433MHz two-way wireless communication
• AES-128 encryption
• LED display, show status of device and replay on/off display
• Small case design, which can be put into hiding places easily
• Automation operating, one button turn on/off from APP/Keyfob/Keypad
• Setting scenarios by different events
• With one tamper input, can be used as zone input for alarm

Specifications

• Learning Button1, For register
• Scenario Setting By Alarm, By Operation, By Fault, By Schedule, By Manual
• Hardware Features
• Alarm Input1 for tamper, NO/NC
• Relay Output1, NO/NC (0~36V DC, Max 5A）
• Serial Port1, for debug
• RF Transmission
• RF Method Two way communication
• RF Modulation2GFSK
• RF Frequency433MHz
• RF Distance800m
• Wireless SecurityAES-128
• Electrical Characteristics
• Power Supply DC 7V – 24V
• Display
• LEDs Status3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)
• General
• Operation Temperature﹣10℃~+55℃
• Operation Humidity10％~90％
• Shell Material Plastic
• Dimension(WxHxD)38x25x18mm
• 28.5g
• Color White
• Installation Method Wall Mounting

Hikvision Alarm Accessories

The Hikvision Wireless Security Alarm System, AX Pro is designed with advanced security features and user-friendly operation for dependable performance. It's the perfect choice for safeguarding your home or office.

Remote Management

You can manage and control your security alarm and accessories with the remotely via the Hik-Connect smartphone app, ensuring you stay in control of your security, no matter where you are.
