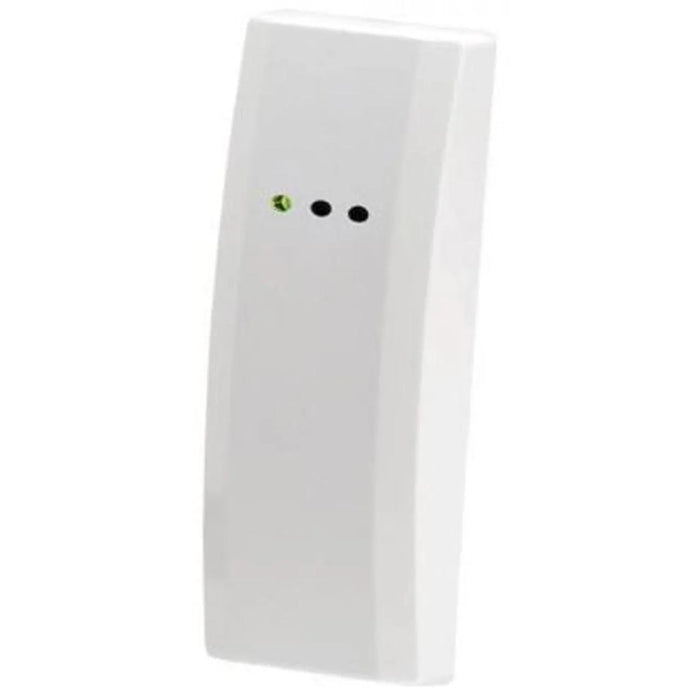

Bosch Solution 6000 Weatherproof External Smartcard Reader White Slim, PR116B

Bosch External smartcard reader PR116, in white, slimline, waterproof and dust proof to suit Bosch Solution 6000 alarm system.

Model : PR116B

Features

• 40 bit transmission format 125Khz, with up to 40mm read range
• Water & dust proof to IP67
• Lock Output and Egress Input to simplify wiring
• Separate indicators show door and alarm status, with built-in sounder providing alarm warning
• Anti replay and anti-substitution protection

The Solution LAN reader features the proprietary 40 bit transmission format and can be used to provide alarm and/or access control functionality when used on the Solution 144 control panel.

Red, green and blue indicators are provided to show area and/or door lock status at all times. The built-in egress input and lock output can be used to simplify the wiring when controlling door access via the reader

All user access and alarm control events are stored in the panels history log and can be reported if required. User credentials can easily be administered onsite using a display code pad or remotely using the Solution Link upload/download software.

Solution Link upload/download software.

The built in sounder provides audible feedback for various system events including entry / exit warning and alarm conditions
