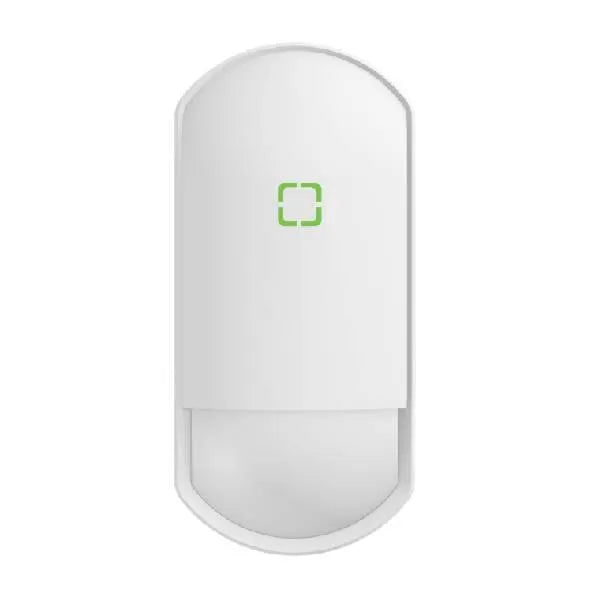

Optex FlipX Dual-Technology PIR and Microwave Detector with Bracket – FLX-S-DT-BKT

Name: Optex FlipX Dual-Technology PIR and Microwave Detector with Bracket – FLX-S-DT-BKT
SKU: FLX-S-DT-BKT 50444
Price: 72.0 AUD

SKU FLX-S-DT-BKT 50444

by Hills

Availability:

in stock, ready to be shipped

Hard-wired Optex FlipX dual-technology detector combining PIR and microwave sensing. Select 12 m wide or 18 m narrow coverage, with a wall and ceiling bracket included.

Dual PIR and microwave detection
12 m at 85° wide or 18 m at 5° narrow coverage
Pet-tolerant detection design
Wall and ceiling bracket included

Save 5%

$76.16

$76.16 - $76.16

$76.16

$72.00

$72.00 - $72.00

$72.00

Quantity

Shipping & Refunds

Shipping Refund Policy

Optex FlipX Dual-Technology PIR and Microwave Detector with Bracket

The Optex FlipX FLX-S-DT-BKT is a hard-wired indoor motion detector combining passive infrared and microwave sensing for dependable intrusion detection. Dual-technology verification helps improve detection reliability and reduce unwanted alarms in suitable homes, offices, retail spaces and commercial environments.

Its rotatable Flip Lens allows the installer to select either a 12-metre, 85-degree wide pattern or an 18-metre, 5-degree narrow pattern. A compatible wall and ceiling mounting bracket is included for flexible positioning.

Best For

Indoor homes and businesses requiring hard-wired dual-technology detection, particularly where environmental conditions may make a single-technology detector less suitable.

Key Features

Dual-technology detection using passive infrared and microwave sensing
Selectable 12-metre, 85-degree wide detection pattern
Selectable 18-metre, 5-degree narrow detection pattern
Rotatable Flip Lens changes the coverage pattern without replacing the lens
Included bracket supports flexible wall or ceiling mounting
Pet-tolerant detection design when correctly installed and configured
Human-Catch Element technology for dependable human movement detection

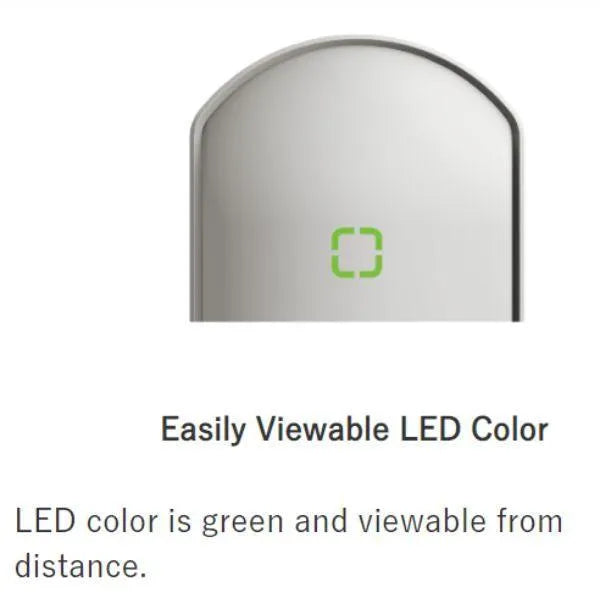

Highly visible green walk-test LED
180-degree cover lock for easier access during setup
EN Grade 2 compliant

How Dual-Technology Detection Works

The FLX-S-DT uses both PIR and microwave technologies to assess movement within the protected area. Combining two detection methods can provide greater confidence in a genuine intrusion event and help reduce nuisance alarms caused by conditions that may affect only one sensing technology.

Detector performance still depends on correct placement, wiring, sensitivity settings, room conditions and professional walk testing.

Wide or Narrow Detection Coverage

The FlipX lens can be rotated during installation to suit the protected area:

12 metres wide at 85 degrees: suited to rooms, offices, living areas and open indoor spaces
18 metres narrow at 5 degrees: suited to corridors, hallways and longer indoor approaches

Coverage depends on mounting height, detector angle, obstructions, temperature conditions and the final installation environment.

Pet-Tolerant Detection

The detector includes pet-tolerant functionality intended to reduce unwanted alarms caused by suitable household pets. Correct mounting height, lens orientation and room selection are essential. Pet tolerance does not guarantee that every animal movement will be ignored, particularly where pets can climb onto furniture or move close to the detector.

What Is Included?

1 × Optex FlipX dual-technology PIR and microwave detector, FLX-S-DT

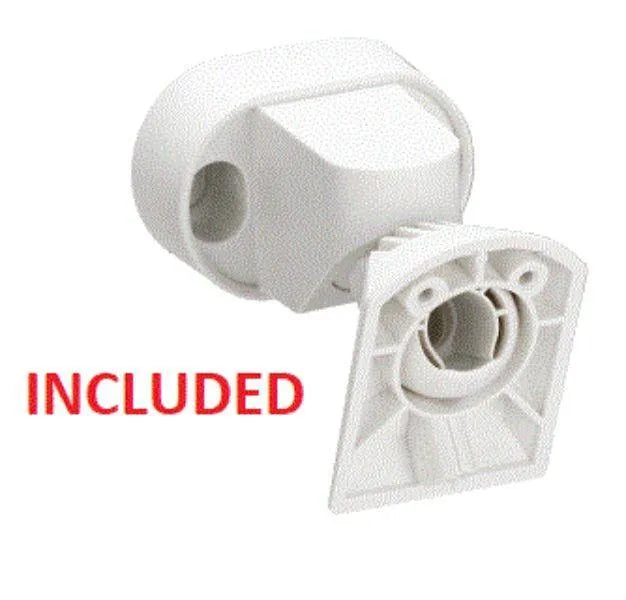

1 × compatible wall and ceiling mounting bracket

Alarm cable, control panel, backup battery, power supply and other installation accessories are not included unless specifically shown or stated separately.

FLX-S-DT or FLX-S-ST?

Choose the FLX-S-DT-BKT when dual PIR and microwave detection is preferred for additional detection verification.

Choose the FLX-S-ST-BKT when a standard PIR-only detector is suitable for the installation. Both models provide selectable wide or narrow coverage and include a mounting bracket.

Alarm System Compatibility

The FLX-S-DT-BKT is a hard-wired detector for compatible intrusion alarm control panels. It requires alarm-panel power, zone wiring and correct end-of-line configuration. It is not a wireless detector and does not connect directly to a smartphone app.

Confirm the control-panel voltage, zone input requirements, resistor values and available auxiliary power before ordering. It may be suitable for selected Hills Reliance alarm systems and other compatible hard-wired alarm platforms when installed correctly.

Professional Installation

Correct placement is essential for both sensing technologies. Avoid unsuitable positions near windows, heaters, air-conditioning outlets, moving objects or other sources that may interfere with reliable detection. The microwave range should remain within the intended protected area.

After installation, the detector should be correctly configured and walk-tested across the complete required coverage pattern. CTC Communications supplies alarm equipment Australia-wide and provides professional alarm installation across Sydney.

Technical Summary

Brand: Optex
Series: FlipX Standard
Model: FLX-S-DT-BKT
Product code: 50444
Detection technology: Passive infrared and microwave
Wide coverage: 12 metres at 85 degrees
Narrow coverage: 18 metres at 5 degrees
Installation: Hard-wired indoor detector
Indicator: Green walk-test LED
Compliance: EN Grade 2
Bracket: Included

Why Buy from CTC Communications?

Security industry experience since 1993
Genuine security products and practical compatibility advice
Australia-wide delivery
Professional installation available across Sydney

Browse compatible Hills Reliance alarm accessories or contact CTC Communications for help confirming the correct detector for your alarm system.

Warranty

Hills Reliance Security Alarm System intrusion products are covered by a 2 years warranty from the date of purchase.
Postage costs for all replacement parts are at the users expense.
CTC Communications offer a 1 year warranty on labour when the system is installed by us.
We will not warranty the labour cost of replacement.
