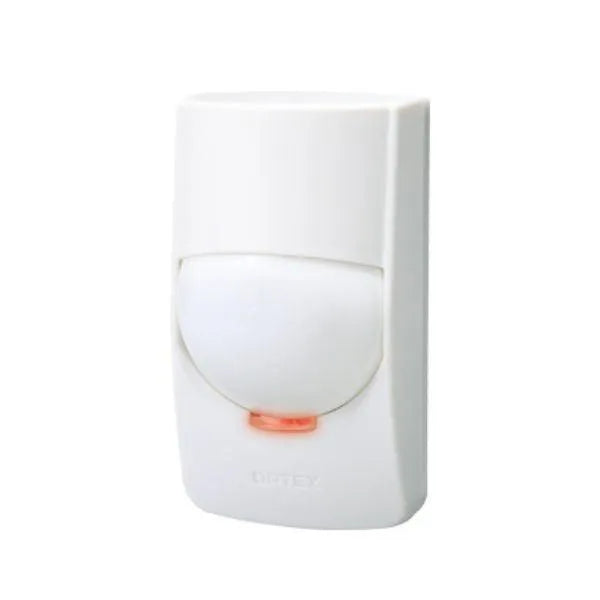

Optex Quad Motion Detector, FMX-ST

Name: Optex Quad Motion Detector, FMX-ST
SKU: 50004
Price: 52.21 AUD

SKU 50004

by Hills

Availability:

Out of stock

Motion Detector

Model: FMX-ST

Features

Complies with EN50131-2-2
Digital quad zone logic
Silent output
Advanced sealed optics
Advanced temperature compensation logic
Remote LED control
Selectable plug-in end of line unit (optional)

Sold out

$52.21 - $52.21

$52.21

$52.21 - $52.21

$52.21

Quantity

Shipping & Refunds

Shipping Refund Policy

The Optex FMX-ST is a top-of-the-line 15m PIR detector designed for indoor use, offering 85° of coverage and advanced stability from the combination technology.

Optex Quad Motion Detectors offer superior coverage, with four independent detectors in a single unit. This device utilizes sector-specific detection to ensure maximum accuracy and reliability.

Specifications

Model	FMX-ST
Detection method	Passive infrared
Coverage	15 m x 15 m 85°wide
Detection zones	78 zones
Mounting height	2.2 to 3.0 m
LED alarm indicator	Switchable ON/OFF
Alarm period	Approx. 2.5 sec
Alarm output	N.C., 24 VDC 0.2 A max.
Tamper switch	N.C., Open when cover is removed.
Tamper output	28 VDC 0.1 A max.
Sensitivity/range	Switchable LOW/MID/HI
Warm up period	Approx. 60 sec (LED blinks.)
Power input	9.5 to 16 VDC
Current draw	8 mA (normal), 11 mA (max.) at 12 VDC
Dimensions(H x W x D)	111.7 mm x 61.4 mm x 50.0 mm
Weight	100 g
Operating temperature	-20 to +50°C
Environmental humidity	95% max.
RF interference	No alarm 10 V/m

Shop CTC Communications for Best Deals on Hills Reliance Alarm Systems

Warranty

Hills Reliance Security Alarm System intrusion products are covered by a 2 years warranty from the date of purchase.
Postage costs for all replacement parts are at the users expense.
CTC Communications offer a 1 year warranty on labour when the system is installed by us.
We will not warranty the labour cost of replacement.

PDF Information

Optex Quad Motion Detector, 50004 Datasheet
