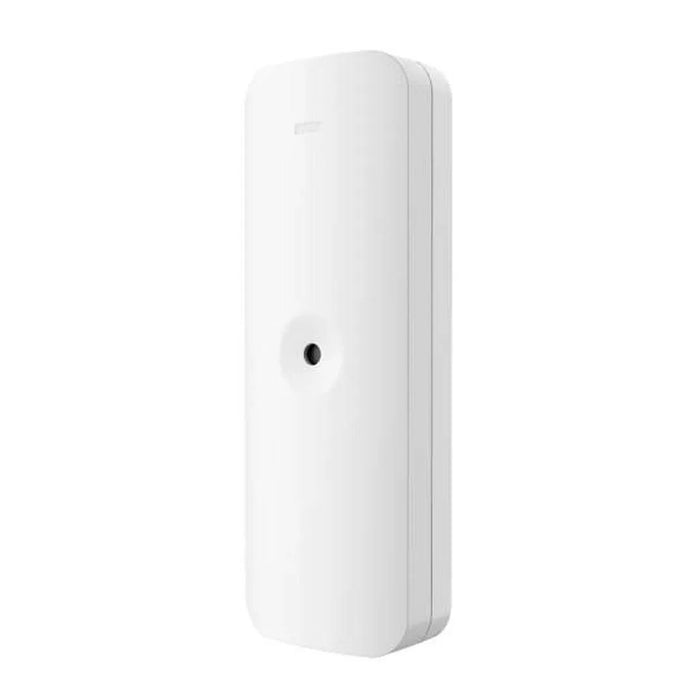

Hikvision DS-PDBG8-EG2-WB AX Pro Wireless Glass Break Detector

Hikvision DS-PDBG8-EG2-WB AX Pro Wireless Glass Break Detector

Protect windows, glass doors and vulnerable entry points with the Hikvision DS-PDBG8-EG2-WB AX Pro Wireless Glass Break Detector, an omni-directional acoustic glass break sensor designed for reliable detection as part of a compatible Hikvision AX Pro wireless alarm system. Built with a high-quality microphone sensor, this detector listens for the sound pattern of breaking glass and helps provide an extra layer of protection for homes, offices, shops and commercial premises.

The DS-PDBG8-EG2-WB is fully remote configurable through the Hikvision app, supports multiple enrolment methods, and uses secure two-way wireless transmission with frequency hopping to help protect against signal interference and jamming.

Model: DS-PDBG8-EG2-WB

Key Features of the Hikvision DS-PDBG8-EG2-WB

• Omni-Directional Acoustic Detection – High-quality microphone sensor detects the sound of breaking glass
• Up to 8m Detection Range – Suitable for protecting windows, glass doors and open glass areas
• 120° Detection Angle – Broad detection coverage from a compact wireless device
• Remote App Configuration – Configure settings through the Hikvision app when connected to a compatible AX Pro system
• Multiple Enrolment Methods – Supports power-up enrolment, remote ID and QR code enrolment
• Tri-X Wireless Technology – Two-way wireless communication for reliable AX Pro integration
• Frequency Hopping – Helps protect wireless transmission against jamming and interference
• AES-128 Encryption – Secure wireless communication with compatible Hikvision alarm systems
• Front & Rear Tamper Protection – Helps alert the system if the detector is opened or removed
• Easy Replaceable Battery – Designed for simple maintenance with PCB protection

Glass Break Protection for Homes & Businesses

The Hikvision DS-PDBG8-EG2-WB is ideal for areas where glass is a key security concern. It adds protection beyond standard motion detection by helping detect forced entry through windows or glass panels before an intruder moves through the protected space.

• Ideal for windows and glass doors
• Suitable for shopfronts and office glass partitions
• Useful for living areas, reception areas and display spaces
• Designed for compatible Hikvision AX Pro alarm systems
• Wireless installation reduces the need for additional cabling

Detection Performance

• Detection Method: Acoustic sensor
• Detection Range: Up to 8m
• Detection Angle: 120°
• Sensitivity Settings: 2m, 4m, 6m and 8m
• Supported Glass Types: Float, plate, tempered, wired, laminated leaded and double glazing
• Glass Thickness: 2.4mm to 6.4mm
• Glass Size: 0.3m x 0.3m to 3m x 3m

AX Pro Wireless Alarm Integration

The DS-PDBG8-EG2-WB is designed to work with the Hikvision AX Pro wireless security alarm system. Once enrolled to a compatible AX Pro hub, the detector can report glass break events, tamper activity and signal status through the alarm system.

• Compatible with Hikvision AX Pro systems
• Two-way RF wireless communication
• 433MHz wireless transmission
• Wireless range up to 1km in open space
• Signal strength indicator support
• Environment temperature indicator support

Remote Management with Hik-Connect

Manage your Hikvision AX Pro alarm accessories through the Hik-Connect app, allowing you to configure, monitor and manage compatible wireless devices from your smartphone. This makes it easier to stay in control of your alarm system whether you are at home, at work or away from the property.

• Remote configuration through the app
• Device status monitoring
• Alarm event notifications when configured
• Easy enrolment using QR code, remote ID or power-up method

Why Choose the Hikvision DS-PDBG8-EG2-WB

• Adds glass break protection to compatible Hikvision AX Pro alarm systems
• Ideal for windows, glass doors, shopfronts and office glass areas
• Wireless design for easier installation
• High-quality omni-directional microphone sensor
• Remote app configuration for easier setup and adjustments
• Secure encrypted wireless communication
• Frequency hopping helps improve wireless reliability
• Front and rear tamper protection for added security

Ideal Applications

The Hikvision DS-PDBG8-EG2-WB Wireless Glass Break Detector is ideal for:

• Homes and apartments
• Offices and reception areas
• Retail shops and shopfronts
• Commercial premises
• Glass doors and windows
• Display rooms and showrooms
• Sites using Hikvision AX Pro wireless alarm systems

Installation Note

This product is designed for use with compatible Hikvision AX Pro wireless alarm systems. Correct placement is important for reliable glass break detection, including suitable distance from protected glass, correct sensitivity settings and clear sound path to the glass area. Professional installation is recommended to ensure correct positioning, enrolment, app configuration and testing.

Secure Your Property with Hikvision AX Pro

When you choose the Hikvision DS-PDBG8-EG2-WB AX Pro Wireless Glass Break Detector, you are adding another layer of protection to your compatible wireless alarm system. It is a smart accessory for customers wanting better protection around windows, glass doors and vulnerable entry points.
