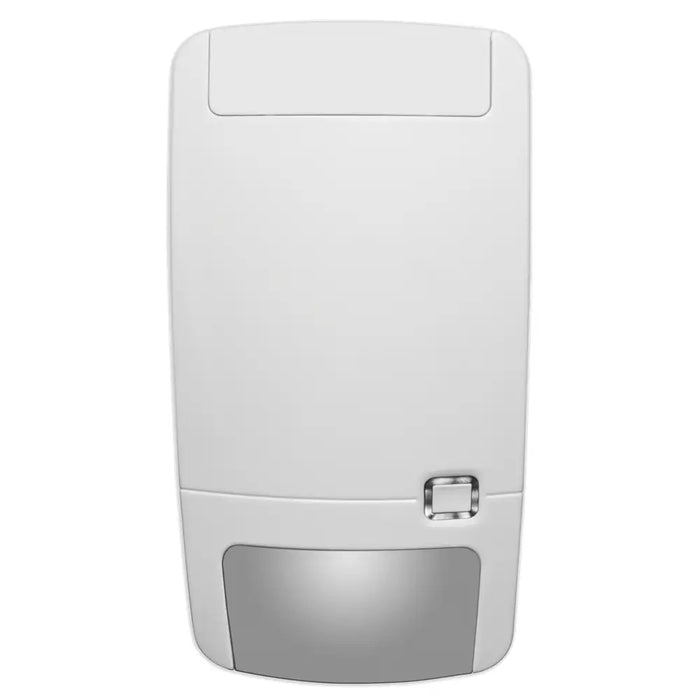

Hills Reliance 80 Plus Two-Way Wireless PIR Detector
The Hills Reliance RF-EV1016-K4 is a two-way wireless PIR motion detector designed for compatible 80 Plus alarm systems. It uses patented optical mirror technology and a dual-element digital pyro sensor to create a dense volumetric detection pattern from floor level to the detector’s mounting height.
Designed for dependable indoor intrusion detection, the RF-EV1016-K4 combines full under-crawl coverage, selectable mirror masking, automatic focus and 5D signal processing to support reliable performance in homes and businesses.
Best For
Compatible Hills Reliance XR and XRPro installations requiring a standard wireless PIR detector where running new alarm cable would be difficult or disruptive.
Important: the RF-EV1016-K4 is the standard detection model and should not be selected where pet immunity is required. For suitable pet-friendly applications, consider the RF-EV1012PI-K4 pet-immune detector.
Key Features
- 80 Plus two-way wireless communication
- Standard indoor PIR intrusion detection
- Patented mirror optics for a dense volumetric coverage pattern
- Dual-element digital pyro sensor
- Nine curtain sets, with two volumetric curtains generated for each set
- Selectable coverage pattern using mirror masks
- Full under-crawl detection
- 5D signal processing to help reduce unwanted alarms
- Automatic focus with consistent range sensitivity
- No adjustment required for supported mounting heights
- Tolerates reasonable wall-angle deviation
- User-accessible battery compartment
- Battery life of up to five years with one battery, subject to conditions
Optical Mirror Detection
The detector’s mirror optics create overlapping volumetric curtains through the protected area. This helps maintain consistent tracking as a person moves across the detection pattern, including movement close to the wall beneath the detector.
Mirror masks allow the installer to tailor the pattern to the room and exclude unsuitable areas where required.
RF-EV1016-K4 or RF-EV1012PI-K4?
Choose the RF-EV1016-K4 for standard indoor wireless motion detection where pets will not move through the protected area.
Choose the RF-EV1012PI-K4 when a compatible 80 Plus pet-immune detector is required. Pet-friendly performance still depends on correct placement and installation.
Two-Way 80 Plus Wireless Technology
Two-way communication allows the detector and compatible alarm system to exchange wireless information rather than relying on a one-way transmission. The detector must be enrolled into a supported 80 Plus receiver or compatible control panel before use.
This is a battery-powered wireless detector. It does not require alarm-zone cabling, but it still requires secure mounting, correct programming, signal testing and periodic battery replacement.
What Is Included?
- 1 × Hills Reliance RF-EV1016-K4 wireless PIR detector
A compatible 80 Plus alarm panel or receiver, codepad, mounting accessories, smartphone service and other system components are not included unless specifically shown or stated separately. Confirm the supplied battery and any bracket requirements before installation.
Alarm System Compatibility
The RF-EV1016-K4 is intended for selected Hills Reliance XR and XRPro alarm systems with compatible 80 Plus wireless capability.
Confirm the panel model, receiver technology, firmware and available wireless zones before ordering. This detector is not hard-wired and does not connect directly to Wi-Fi or the UltraSync+ app. Smartphone control depends on the compatible alarm panel and its internet configuration.
Battery Life and Maintenance
The detector is designed to provide up to five years of operation from one battery. Actual battery life varies according to activity levels, signal strength, operating temperature, testing frequency and battery quality.
Replace the battery with the manufacturer-specified type and complete a detector and wireless-signal test after replacement. Low-battery conditions should be attended to promptly.
Installation Guidance
Install the detector indoors with a clear view across the protected area. Avoid positions near heaters, air-conditioning outlets, direct sunlight, moving curtains or other sources that may affect PIR performance.
The detector must be enrolled, assigned to the correct zone, securely mounted and walk-tested. Wireless signal strength should also be checked at the final mounting location before installation is completed.
Technical Summary
-
Brand: Hills Reliance
-
Model: RF-EV1016-K4
-
Detector type: Standard wireless passive infrared motion detector
-
Wireless technology: 80 Plus two-way
-
Optics: Volumetric mirror optics with selectable masking
-
Sensor: Dual-element digital pyro
-
Signal processing: 5D
-
Battery life: Up to five years with one battery, subject to conditions
-
Pet immunity: No—choose RF-EV1012PI-K4 where pet immunity is required
-
Installation: Indoor wireless detector
Professional Installation
Correct detector positioning, system enrolment and wireless testing are essential for reliable performance. CTC Communications supplies alarm equipment Australia-wide and provides professional alarm installation across Sydney.
