Best For: FSH FES20 and FES20M electric strike installations requiring an extended 75mm lip for deep timber, aluminium or metal door-frame profiles.

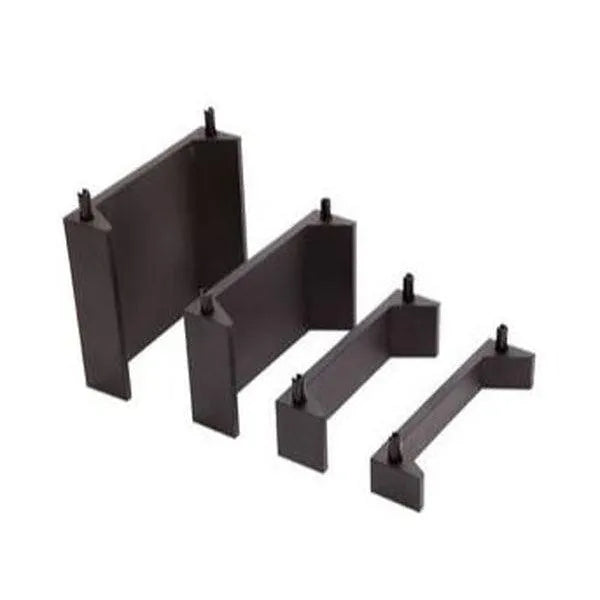

FSH FES20-EL75 75mm Extension Lip for FES20 and FES20M Electric Strikes
The FSH FES20-EL75 Extension Lip is a 75mm accessory designed for compatible FSH FES20 and FES20M high-security electric door strikes. It provides additional coverage between the electric strike faceplate and the outside edge of a deep or wide door frame.
The longer extension helps the door latch clear the surrounding frame and enter the strike keeper without rubbing, catching or damaging the frame. It is particularly useful on timber and aluminium frames with profiles that extend substantially beyond the standard strike faceplate.
Key Features
-
75mm extension lip for the FSH FES20 Series
- Compatible with the FES20 non-monitored electric strike
- Compatible with the FES20M fully monitored electric strike
- Designed for deep or wide door-frame profiles
- Provides additional clearance between the latch and frame
- Allows the latch to move freely into the strike keeper
- Helps prevent contact between the latch and surrounding frame
- Ideal for timber and aluminium door-frame installations
- Attaches to the strike’s pre-drilled extension-lip mounting points
- Designed for professional access control installations
Why Use a 75mm Extension Lip?
The standard lip supplied with an FES20 Series electric strike may not provide sufficient coverage on a deep or unusually shaped door frame. Without enough clearance, the door latch can rub against the frame, catch during operation or damage the surrounding surface.
The FES20-EL75 provides a 75mm extension, making it suitable for installations where shorter 15mm, 25mm or 50mm extension lips do not reach beyond the door-frame profile.
When correctly selected and installed, the extension lip helps guide the latch into the strike jaw while protecting the frame and improving the overall appearance of the installation.
Compatible Electric Strikes
-
FSH FES20: high-security, non-monitored electric strike
-
FSH FES20M: high-security, fully monitored electric strike
Both FES20 Series models are pre-drilled for compatible extension lips, allowing the FES20-EL75 to be securely attached without modifying the strike’s internal locking mechanism.
Technical Specifications
| Brand |
FSH |
| Model |
FES20-EL75 / FSHFES20-EL75 |
| Product Type |
Electric strike extension lip |
| Extension Length |
75mm |
| Approximate Dimensions |
122mm x 75mm |
| Compatible Models |
FSH FES20 and FES20M |
| Application |
Additional latch clearance for deep door frames |
| Suitable Frames |
Commonly used with timber, aluminium and metal frames |
| Electrical Connection |
Not required |
Selecting the Correct Extension Length
FSH extension lips are available in different lengths to accommodate various door-frame profiles. Measure the distance between the electric strike faceplate and the outside edge of the frame before ordering.
The FES20-EL75 is intended for installations requiring substantial additional coverage. A shorter 15mm, 25mm or 50mm extension may provide a better fit on shallower frames.
Installation Note
The extension lip should be securely attached to the pre-drilled mounting points on the compatible FES20 or FES20M electric strike. Once installed, the door latch should enter the keeper freely without rubbing, binding or placing sideways pressure on the strike mechanism.
Installation should be completed by a qualified locksmith, security technician or access control installer. Confirm the electric strike model, frame depth and required extension length before ordering.
Why Choose the FSH FES20-EL75?
- Purpose-designed for the FSH FES20 Series
- Suitable for monitored and non-monitored FES20 strikes
- Provides 75mm of additional latch clearance
- Ideal for deep timber, aluminium and metal frames
- Helps prevent interference between the latch and frame
- Uses the strike’s existing pre-drilled mounting points
- Creates a clean and professional installation finish
