Best For: Double commercial doors, office entrances, retail premises and access-controlled entry points requiring slimline, fail-safe magnetic locking without monitoring outputs.
FSH FEM4300D Slimline Double Magnetic Door Lock – Non-Monitored, 280kg, 12/24V DC
The FSH FEM4300D is a slimline double electromagnetic door lock designed to secure pairs of access-controlled doors. It incorporates two magnetic locks, with each magnet providing a holding strength of up to 280kg.
Designed for fail-safe, Power To Lock operation, the FEM4300D supports field-selectable 12V or 24V DC input and releases the doors when power is removed. Its slimline surface-mount housing makes it suitable for commercial entrances where available mounting space and appearance are important.
This is the non-monitored model and does not include Lock Status Sensor, Door Status Sensor or LED status indication. For these monitoring functions, consider the FSH FEM4300DM monitored double magnetic lock.
Key Features of the FSH FEM4300D
-
Double magnetic door lock for pairs of access-controlled doors
- Up to 280kg holding strength per magnetic lock
- Non-monitored configuration without LSS or DSS outputs
- Slimline surface-mount design
- Field-selectable 12V or 24V DC operation
- Fail-safe, Power To Lock operation
- Built-in MOV surge protection
- No residual magnetism when power is removed
- Satin anodised aluminium housing
- Zinc-plated electromagnetic lock body
- Two carbon-free steel armature plates
- Fire tested for up to 2 hours, subject to the approved doorset
- Five-year manufacturer warranty
Designed for Double-Door Entrances

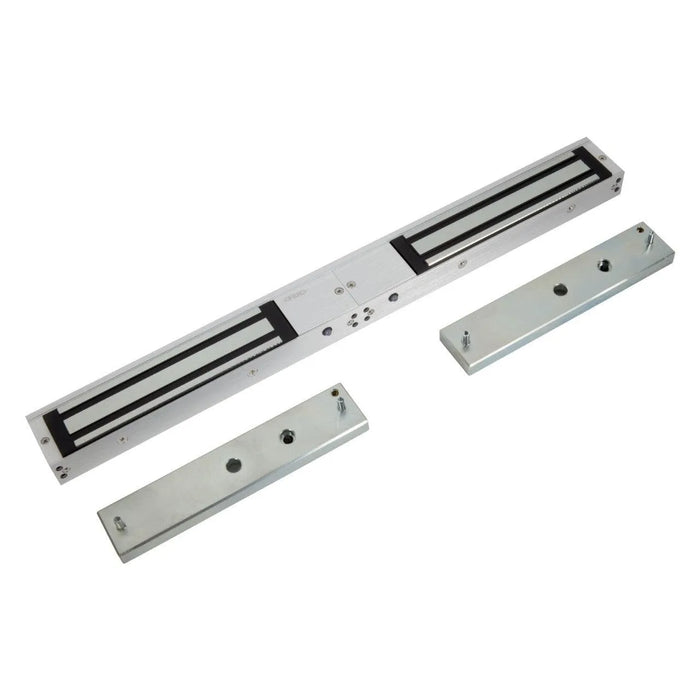

The FEM4300D combines two electromagnetic locks within a single double-door housing. Each magnet operates with its own armature plate, allowing both door leaves to be secured as part of the same access control system.
Its slimline construction is well suited to office foyers, retail entrances, commercial buildings and controlled staff areas where a low-profile double magnetic lock is required.
Fail-Safe Magnetic Locking
The FSH FEM4300D operates in fail-safe or Power To Lock mode. Electrical power is applied to hold the doors secure, and the locks release when power is removed.
This operating method allows the lock to be integrated with compatible access control systems, emergency exit devices and fire-alarm interfaces. Emergency release and egress requirements must be considered as part of the complete door installation.
Non-Monitored Configuration
The FEM4300D is designed for installations where lock and door status feedback is not required. It does not include:
- Lock Status Sensor (LSS)
- Door Status Sensor (DSS)
- Red and green lock status LED
If these monitoring functions are required, the corresponding monitored model is the FSH FEM4300DM.
Dual-Voltage 12/24V DC Operation
Field-selectable 12V or 24V DC operation provides flexibility when integrating the FEM4300D with access control panels, intercom systems, card readers, keypads and professional access control power supplies.
The complete double lock draws approximately 1A at 12V DC or 500mA at 24V DC. The power supply should be sized to accommodate the magnetic lock, access controller and any other connected devices.
No Residual Magnetism
The FEM4300D is designed without residual magnetism after power is removed. This helps the doors release cleanly and reduces unnecessary resistance when users open the doors following an authorised access request or emergency release.
Technical Specifications
| Brand |
FSH |
| Model |
FEM4300D / FSHFEM4300D |
| Series |
FEM4300 Series |
| Product Type |
Slimline double electromagnetic door lock |
| Door Configuration |
Double door |
| Monitoring |
Non-monitored |
| Holding Strength |
Up to 280kg per magnetic lock |
| Operation |
Fail safe / Power To Lock |
| Input Voltage |
12V or 24V DC, field selectable |
| Total Current Draw |
Approximately 1A at 12V DC or 500mA at 24V DC |
| Mounting |
Surface mount |
| Magnet Dimensions |
477mm x 48mm x 25mm |
| Armature Plate Dimensions |
185mm x 38mm x 12mm – two supplied |
| Housing Finish |
Satin anodised aluminium |
| Surge Protection |
Built-in MOV protection |
| Fire Rating |
Up to 2 hours in accordance with AS 1905.1:2015, subject to the approved doorset |
| Approvals |
CE and RCM approved |
| Warranty |
Five-year manufacturer warranty |
Ideal Applications
- Double commercial entry doors
- Office and administration buildings
- Retail stores and shopping centres
- Controlled staff entrances
- Education and healthcare facilities
- Apartment and shared-building entrances
- Access-controlled internal double doors
Fire-Rated Door Applications
The FEM4300D has been tested for use on compatible fire-door assemblies for up to two hours in accordance with AS 1905.1:2015. Approval depends on the complete doorset, mounting arrangement and fire-door manufacturer requirements.
Suitability must be confirmed before installing the lock on a fire-rated door.
Installation Note
The FSH FEM4300D should be installed by a qualified security or access control technician. Door alignment, mounting brackets, power supply capacity, cable protection, emergency release devices and fire-alarm integration must be considered during system design.
An appropriate double L&Z bracket may be required where the door and frame configuration does not support standard direct mounting.
Why Choose the FSH FEM4300D?
- Purpose-built locking for double-door entrances
- Up to 280kg holding strength per door leaf
- Slimline housing for professional commercial installations
- Flexible 12V or 24V DC operation
- Clean release without residual magnetism
- Built-in surge protection
- Five-year manufacturer warranty
- Part of the established FSH FEM4300 magnetic lock range
