Best For: Commercial entrances, offices, schools, warehouses and access-controlled single doors requiring high holding strength with door and lock status monitoring.

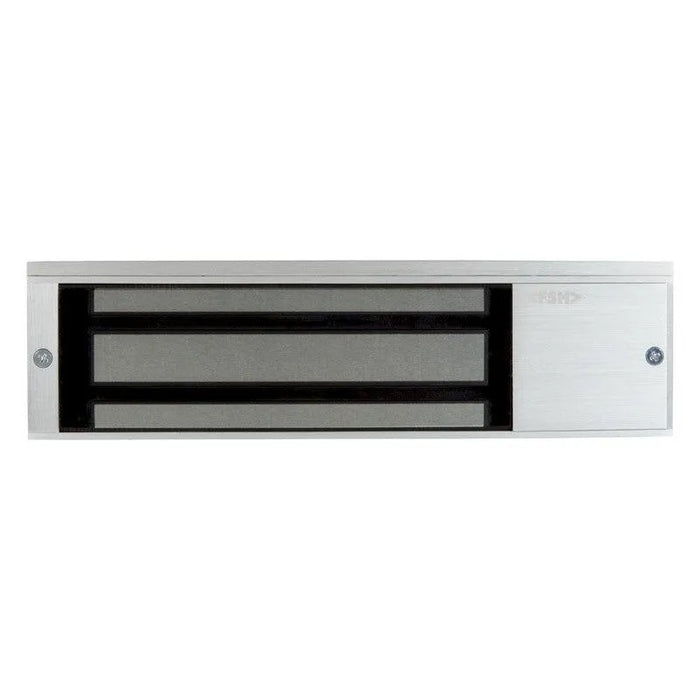

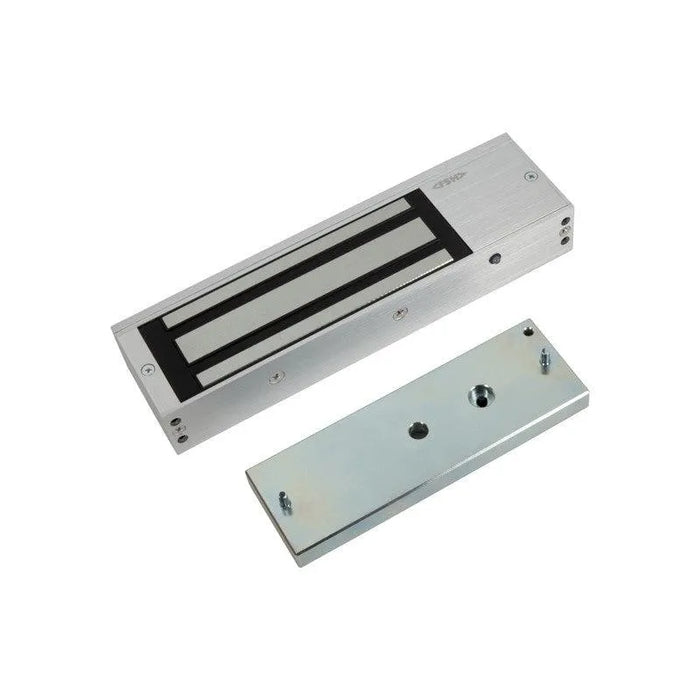

FSH FEM6600M Magnetic Door Lock – Standard Single Monitored, 580kg
The FSH FEM6600M Magnetic Door Lock is a standard-size, single-door electromagnetic lock designed for commercial access control installations. Delivering up to 580kg holding strength, it provides dependable fail-safe locking for entrances where security, monitoring and reliable operation are essential.
This monitored model includes a Lock Status Sensor (LSS), Door Status Sensor (DSS) and red-green LED indicator, allowing compatible access control systems to monitor the condition of both the lock and door. Field-selectable 12V or 24V DC operation provides flexibility when integrating the lock with access controllers, intercoms, keypads, card readers and emergency release systems.
Key Features of the FSH FEM6600M
-
Up to 580kg holding strength for demanding commercial doors
- Standard-size magnetic lock for a single door
-
Fully monitored model with LSS and DSS outputs
- Red-green bi-colour LED for visual lock status indication
-
Fail-safe operation releases the door when power is removed
- Field-selectable 12V or 24V DC input
- Low current consumption of 500mA at 12V DC or 250mA at 24V DC
- Built-in MOV surge protection
- No residual magnetism after power is removed
- Surface-mounted design for professional installation
- Satin anodised aluminium housing
- Zinc-plated electromagnetic body
- Fire rated for up to two hours when installed on a compatible tested doorset
- Five-year manufacturer warranty
Door and Lock Status Monitoring
The FEM6600M provides monitoring outputs that can be connected to a compatible access control system, security panel or building management system. These outputs provide improved visibility of the door and lock condition.
-
LSS – Lock Status Sensor: indicates whether the magnetic lock and armature plate are correctly engaged
-
DSS – Door Status Sensor: provides feedback about whether the door is open or closed
-
Red-green LED: provides an immediate visual indication of the lock status
Monitoring can assist with identifying doors that have been left open, incorrectly aligned or have not locked correctly after access has been granted.
Fail-Safe Magnetic Lock Operation
The FSH FEM6600M operates as a fail-safe magnetic lock. The door remains locked while power is supplied and releases when power is removed. This operating method is commonly used on access-controlled doors where the lock must release following an authorised request-to-exit signal, emergency release activation or loss of power.
Because the lock produces no residual magnetism after power is removed, the armature plate releases cleanly for smoother door operation and reduced wear.
Technical Specifications
| Brand |
FSH |
| Model |
FEM6600M / FSHFEM6600M |
| Series |
FEM6600 Series |
| Product Type |
Standard single electromagnetic door lock |
| Monitoring |
Monitored – Lock Status Sensor and Door Status Sensor |
| Status Indicator |
Red-green bi-colour LED |
| Operation |
Fail safe / Power To Lock |
| Holding Strength |
Up to 580kg |
| Input Voltage |
12V or 24V DC, field selectable |
| Current Consumption |
500mA at 12V DC / 250mA at 24V DC |
| Mounting |
Surface mount |
| Magnet Dimensions |
268mm L x 73mm W x 40mm D |
| Armature Dimensions |
190mm L x 61mm W x 16mm D |
| Housing Finish |
Satin anodised aluminium |
| Surge Protection |
Built-in MOV protection |
| Fire Rating |
Up to two hours in accordance with AS 1905.1:2015, subject to doorset and installation |
| Warranty |
Five years |
Ideal for Commercial Access Control
The FSH FEM6600M is suitable for access-controlled single doors requiring greater holding strength than a slimline magnetic lock. Typical applications include:
- Commercial office entrances
- Schools and education facilities
- Warehouses and industrial buildings
- Apartment common-area doors
- Government and council facilities
- Staff-only and restricted-access areas
- Access-controlled fire doors where approved
- Doors connected to intercom or building access systems
Mounting and Door Compatibility
The FEM6600M is designed for surface mounting and is supplied for use on a single door. The required mounting arrangement will depend on the door construction, frame profile and opening direction.
Compatible L, Z, U and other mounting brackets may be required for inswing doors, frameless glass doors or installations where the magnet and armature plate cannot be aligned using the standard mounting arrangement. Confirm the door and frame measurements before selecting accessories.
Fire-Rated Installation Note
The FEM6600 Series has been tested for use on compatible fire door assemblies for up to two hours in accordance with AS 1905.1:2015. The final fire rating depends on the approved doorset, mounting method, hardware configuration and installation. Fire-door suitability should be confirmed before installation.
Professional Installation Recommended
This magnetic lock should be installed by a qualified security, access control or locksmith professional. Correct alignment between the magnet and armature plate is essential for achieving the rated holding strength and reliable monitoring.
The power supply, cable size, access controller, emergency release devices, fire system interface and exit hardware must be selected to meet the requirements of the installation and applicable building regulations.
Why Choose the FSH FEM6600M?
- High 580kg holding strength for commercial single doors
- Door and lock status monitoring for improved system feedback
- Visual red-green status indicator
- Flexible 12V or 24V DC operation
- Clean release with no residual magnetism
- Built-in electrical surge protection
- Up to two-hour fire rating on compatible doorsets
- Five-year manufacturer warranty
