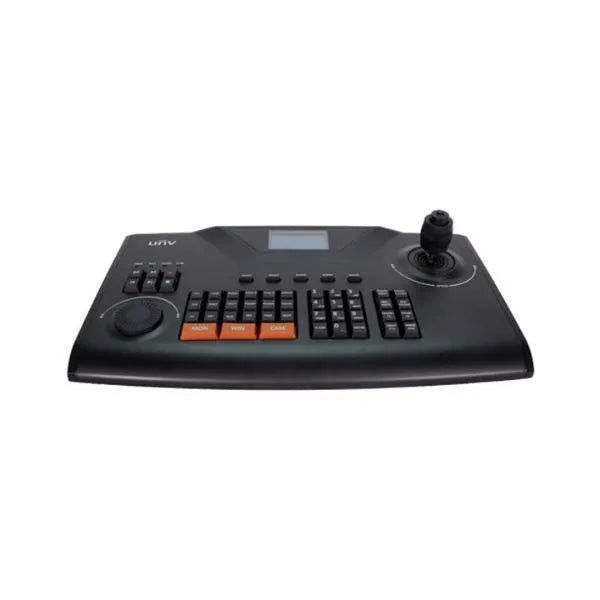

Four dimensional joystick for network keyboard to control ptz cameras, via network recorder.
Model: KB-1100
Features
- LCD screen display
- Four-dimensional joystick control
- Based on IP network
- Support multiple user permissions
- Connectable to NVR to control NVR menu and PTZ operations
- Multiple devices can be connected
Specifications
| Product model | KB-1100 |
| Joystick | four-dimensional joystick |
| Ethernet port | 1 RJ-45 10 M / 100 M adaptive Ethernet port |
| USB Interface | 1 USB2.0 interfaces |
| Serial Interface | 1 RS-232, 2 RS-485 |
| Power Supply | 12V DC |
| Consumption | 5W |
| Working Temperature | -10°C ~ + 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 47mm×270mm×440mm(1.9"×10.6"×17.3") |
| Weight | <1kg |
Downloads
Uniview Network Keyboard, KB-1100 Datasheet
