Bosch Security Cameras for Mining in Moranbah
Mining operations in Moranbah and the broader WA Region demand rugged, reliable CCTV that stands up to heat, dust and 24/7 duty cycles. Bosch cameras deliver IP66/IK10 protection, Intelligent Video Analytics (IVA/IVA Pro), and options like PTRZ for remote set-up — ideal for pit monitoring, processing plants, access gates, fuel farms, and worker accommodation villages.
IP66 / IK10 IVA / IVA Pro PTRZ (remote aim & zoom) H.265 & WDR/HDR Mic & IR options
Why Choose Bosch for Moranbah Mining Sites?
- Built for harsh environments: IP66 weather protection and IK10 impact rating on key models.
- Operational awareness: IVA / IVA Pro for line-crossing, zone entry, loitering, and people/vehicle detection.
- Remote set-up (PTRZ): Pan/Tilt/Rotate/Zoom remotely on 8000i models to speed up commissioning.
- High efficiency: H.265 codecs reduce bandwidth and storage costs at remote sites.
- Integration ready: Works with video management, alarms, access control, and site SCADA where needed.
- Australia-wide supply & Sydney installation: CTC Communications supports mining contractors and operators nationally.
Featured Bosch Mining Camera Picks
8000i Series
BOS-NDE-8504-R — 8 MP Motorised Varifocal
3.9–10 mm • IP66 • PTRZ • IVA • H.265 • WDR
Ultra-clear 8 MPRemote PTRZAnalyticsOutdoor Rated
View Product5100i Series
BOS-NDE-5703-AL — 5 MP Varifocal
3.2–10.5 mm • IP66/IK10 • IVA Pro • IO • IR
IVA ProIR IlluminationImpact Rated
View Product7100i Series
BOS-NCE-7703-FK — 6 MP Fixed Dome
2.5 mm • IP66/IK10 • HDR • IR • Mic
Wide CoverageHDR + IRAudio Onboard
View Product
Tip: Use 8000i PTRZ domes for high masts and gantries (remote framing after install), 5100i for robust analytics at entries and yards, and 7100i domes for wide interior/undercover coverage.
Bosch Camera Specifications for Mining Environments
| Model | Resolution | Lens | Series | Special Features | Outdoor Rating |
|---|---|---|---|---|---|

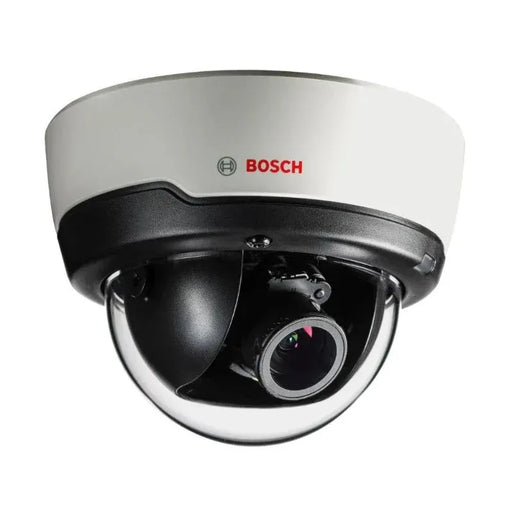

| BOS-NIN-51022-V3 | 2 MP | 3–10 mm varifocal | 5000 HD | WDR, H.264 | Indoor |
| BOS-NDE-8503-RT | 6 MP | 12–40 mm motorised | 8000i | PTRZ, IVA, H.265, WiFi | IP66 |
| BOS-NDE-8504-R | 8 MP | 3.9–10 mm motorised | 8000i | PTRZ, IVA, H.265, WDR | IP66 |
| BOS-NDE-8502-RT | 2 MP | 10–23 mm motorised | 8000i | PTRZ, IVA, H.265 | IP66 |

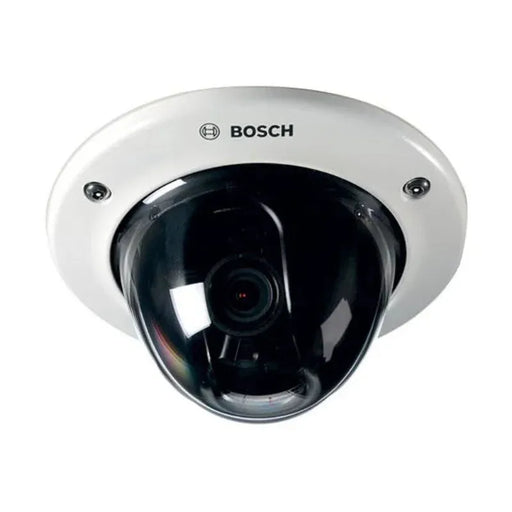

| BOS-NIN73023A10A | 2 MP | 10–23 mm varifocal | 7000 VR Starlight | Flush mount, Starlight | Indoor |
| BOS-NCE-7703-FK | 6 MP | 2.5 mm fixed | 7100i | HDR, IR, mic | IP66 / IK10 |

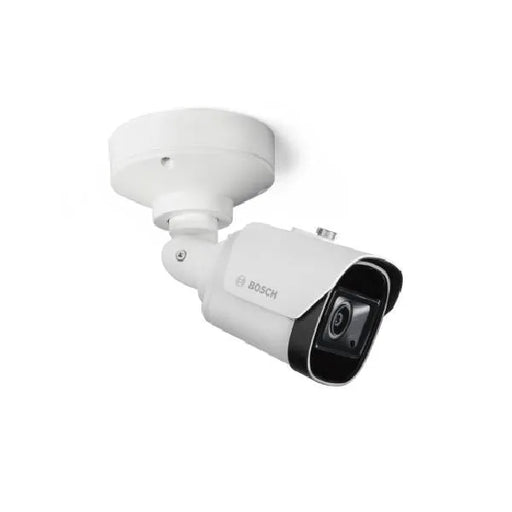

| BOS-NDE-3703-AL | 5 MP | 3.3–10 mm varifocal | 3100i | IVA, IR | IP66 / IK10 |
| BOS-NDE-5702-A | 2 MP | 3.2–10.5 mm varifocal | 5100i | IVA Pro | IP66 / IK10 |
| BOS-NDE-5702-AL | 2 MP | 3.2–10.5 mm varifocal | 5100i | IVA Pro, IO, IR | IP66 / IK10 |
| BOS-NDE-5703-A | 5 MP | 3.2–10.5 mm varifocal | 5100i | IVA Pro | IP66 / IK10 |
| BOS-NDE-5703-AL | 5 MP | 3.2–10.5 mm varifocal | 5100i | IVA Pro, IO, IR | IP66 / IK10 |
| BOS-NDE-5704-A | 8 MP | 3.2–10.5 mm varifocal | 5100i | IVA Pro | IP66 / IK10 |
Need thermal, explosion-protected, or long-range PTZ? Ask us for a tailored mining specification.
Proven CCTV Applications for Moranbah Mining
Security & Compliance
- Perimeter fencing, gates & boom barriers
- Fuel farm & explosive storage monitoring
- Contractor villages & car parks
- Visitor/contractor verification at entries
Operations & Safety
- Conveyor belts, crushers, load-out
- Heavy vehicle zones, speed compliance
- Hot works & restricted zones
- Remote incident review & training
CTC Communications — Mining CCTV Supply & Installation
- Supply of Bosch cameras Australia-wide
- Sydney-wide professional installation & commissioning
- Network design, storage sizing, and analytics set-up
- Integration with alarms, access control & monitoring
- Ongoing support & maintenance
Installation available in Sydney metro; national supply for mining & contractor partners.
FAQs – Bosch CCTV for Moranbah Mining Sites
Are these cameras suitable for heat, dust and impact on mine sites?
Many models here carry IP66 (weather) and IK10 (impact) ratings and include WDR/HDR for challenging light. For extreme conditions, we can specify enclosures or specialist models.
What is PTRZ and why is it useful?
PTRZ (Pan/Tilt/Rotate/Zoom) on Bosch 8000i lets technicians remotely aim and fine-tune the view after installation — perfect for high masts and gantries where access is difficult.
Can we run analytics for safety and compliance?
Yes — IVA / IVA Pro supports virtual tripwires, area intrusion, object detection and people/vehicle differentiation to assist with safety observation and incident review.
Do you offer monitoring and integration?
We integrate CCTV with alarms and access control and can arrange monitoring pathways as part of a complete solution.
