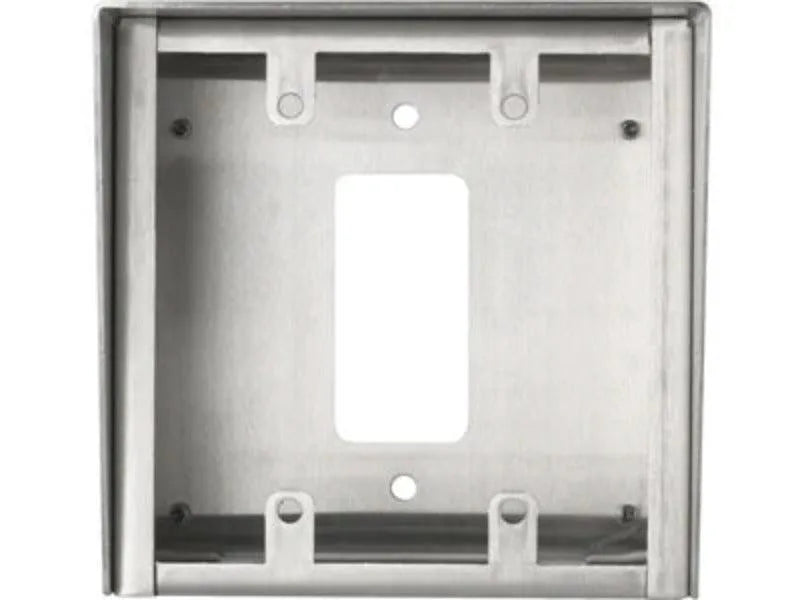

Aiphone SBX-2G/A Stainless Steel Surface-Mount Enclosure
The Aiphone SBX-2G/A is a stainless steel surface-mount enclosure for selected Aiphone 2-gang door and sub stations. It provides an alternative to recessed mounting, with internal space for wiring and mounting hardware for the compatible intercom station.
Best For
Installing a compatible Aiphone station where a recessed wall box is impractical. Useful for solid-wall installations and retrofit projects needing a durable stainless steel surface enclosure, including installations using the IE-JA audio door station.
What's Included
- SBX-2G/A stainless steel enclosure
- 4 mounting screws
- 4 speed nuts
- 1 T-15 Torx bit
Intercom station sold separately.
Key Features
-
Surface-mount solution: Allows selected flush-style 2-gang Aiphone stations to mount onto the wall surface.
-
Stainless steel construction: 18-gauge enclosure with a polished finish.
-
Space for wiring: Internal clearance accommodates the station connections.
-
Flexible wall attachment: Mounts directly to a flat wall or over a suitable 1-gang box or ring.
-
Station hardware supplied: Includes screws, speed nuts and a Torx bit for fitting compatible equipment.
Technical Specifications
| Model / SKU |
SBX-2G/A / APHSBX-2G/A |
| Product type |
Surface-mount enclosure for compatible 2-gang Aiphone stations |
| Material |
18-gauge stainless steel |
| Finish |
Polished stainless steel |
| Mounting |
Directly to a flat wall, or over a suitable 1-gang box or ring |
| Overall dimensions |
Approximately 122.2 mm (H) × 123.8 mm (W) × 101.6 mm (maximum D) |
| Internal depth |
Approximately 85.7 mm |
| Station compatibility |
IE-JA, IE-SS/A, IE-SSR, LE-DA, LE-SS/A, LE-SSR, IS-SS-2G, IS-SSR-2G and IX-SS-2G |
| Included hardware |
4 screws, 4 speed nuts and 1 T-15 Torx bit |
| Mounting screws |
8-32 thread with T-15 Torx head |
| Environmental design |
Weather-resistant enclosure; installed station requirements still apply |
| Manufacturer warranty |
3 years |
| Ordering information |
Non-stock, non-returnable item; allow an additional 3–4 working days, subject to supplier availability |
Downloads
Installation Information
Enclosure only: Confirm your exact intercom station is listed as compatible before ordering. A 2-gang description alone does not establish compatibility with every Aiphone product.
Check the mounting surface, fixing method and cable entry before installation. Fit the supplied speed nuts to the mounting tabs and secure the compatible station using the specified hardware. Follow the instructions for both the enclosure and the installed station.
Special-order conditions: This is a non-stock, non-returnable item. Allow an additional 3–4 working days and confirm supplier availability and lead time before ordering.
CTC Communications offers professional installation across Sydney Metro. Contact our team for help selecting the correct enclosure. Discounted installation rates are available in the Seven Hills area.
