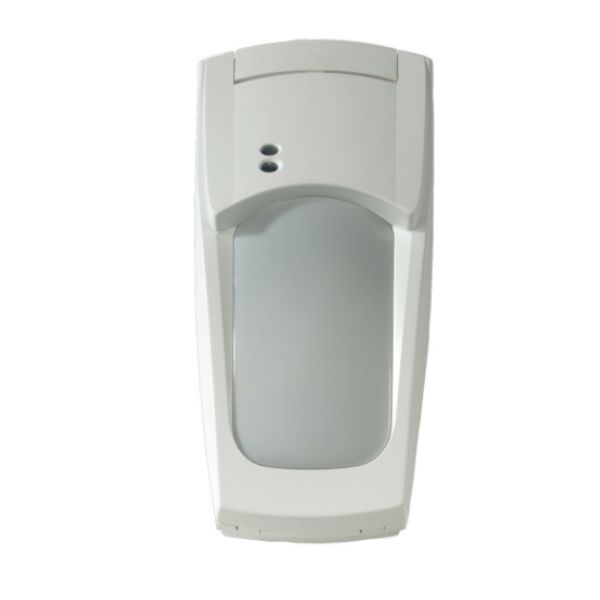

Aritech VE735AM Long-Range Hard-Wired PIR Detector with Anti-Masking – 60 m

Name: Aritech VE735AM Long-Range Hard-Wired PIR Detector with Anti-Masking – 60 m
SKU: VE735AM
Price: 356.5 AUD

SKU VE735AM

by Aritech

Availability:

in stock, ready to be shipped

The Aritech VE735AM is a hard-wired indoor PIR detector with multi-channel anti-masking. It provides 11 curtains across 86° at 20 m and a single 5° long-range curtain reaching up to 60 m. Features include V²E signal processing, undercrawl protection and tamper detection. Operates on 9–15 VDC.

$356.50 - $356.50

$356.50

$356.50 - $356.50

$356.50

Quantity

Shipping & Refunds

Shipping Refund Policy

The Aritech VE735AM is a hard-wired PIR motion detector with anti-masking for indoor alarm installations. Its mirror optics provide 11 curtains across an 86° wide-angle pattern at 20 m, plus a single 5° long-range curtain reaching up to 60 m. The 60 m range applies to the narrow long-range curtain.

Key Features

V²E signal processing helps distinguish movement signals from interference.
Multi-channel anti-masking detects attempts to obstruct the sensor.
Sealed optics, plug-in electronics and three sensitivity settings.
Undercrawl coverage, cover tamper and pry-off tamper protection.

Best For

Indoor commercial spaces and long corridors requiring a wired detector with extended reach. An installer should assess coverage, environmental conditions and panel wiring before selection.

Specifications

Model	VE735AM
Connection	Hard-wired PIR
Wide-angle coverage	20 m, 11 curtains, 86° field of view
Long-range coverage	Up to 60 m, single curtain, 5° field of view
Optics	Multi-curtain mirror
Anti-masking	Multi-channel active infrared
Supply	9–15 VDC
Nominal current	20 mA
Mounting height	1.8–3.0 m
Alarm / tamper / anti-mask relays	Voltage-free NC
Sensitivity	Low / Standard / High
Undercrawl protection	Yes
Dimensions (H × W × D)	175 × 93 × 66 mm
Operating temperature	−10 to +55°C
Use / finish	Indoor; white plastic housing

Installation and Compatibility

Requires a suitable wired alarm panel and DC power supply. Confirm zone, tamper and anti-mask wiring with your installer. Optional brackets and alignment tools must be checked separately.
