Best For: Existing Bosch alarm systems requiring a replacement control panel and metal cabinet while retaining a compatible codepad, detectors, sirens, power supply, battery and cabling

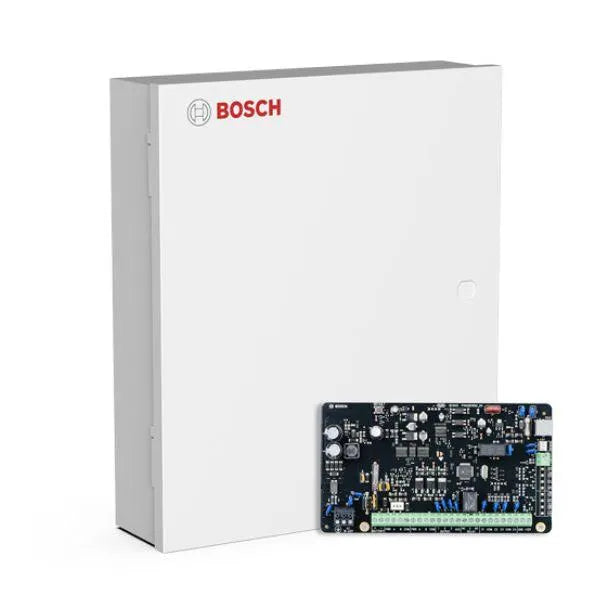

Bosch Solution 2000 Alarm Upgrade Kit – Control Panel and Metal Cabinet
Replace compatible ageing or damaged alarm-control equipment with the Bosch Solution 2000 Alarm Upgrade Kit.
This basic hardware kit includes the Bosch Solution 2000 control-panel PCB and a compatible metal cabinet. It is designed for existing wired alarm systems where a suitable Bosch codepad, detectors, sirens, plug pack, backup battery and cabling are already installed.
The Solution 2000 provides eight programmable wired zones, two-area partitioning and optional smartphone connectivity, making it a practical foundation for smaller residential and commercial alarm systems.
What’s Included in the Upgrade Kit?
- 1 × Bosch Solution 2000 control-panel PCB – ICP-SOL2-P
- 1 × Compatible Bosch metal control-panel cabinet
Important: This kit does not include a codepad, plug-pack power supply, backup battery, alarm cable, detectors, reed switches, internal or external sirens, IP module, wireless receiver or remote controls. Confirm that the required existing components are serviceable and compatible before ordering.
Key Features of the Bosch Solution 2000
-
Eight Programmable Wired Zones – Suitable for compatible detectors, reed switches and other alarm devices
-
Two-Area Partitioning – Allows different sections of the property to be armed independently
-
Up to 20 User PIN Codes – Create individual codes for family members, employees or authorised users
-
Up to 20 RF Keyfobs – Requires a compatible receiver and remote controls
-
Up to Four Compatible Codepads – Add alarm controls at multiple entry points
-
Stay and Away Arming – Provides flexible protection while the property is occupied or unattended
-
Four Programmable Outputs – Supports compatible external devices and automation functions
-
256-Event History – Stores recent alarm and system activity
-
Dynamic Battery Testing – Helps monitor a compatible backup battery
-
AC-Failure Supervision – Monitors the primary power supply
-
Entry and Exit Warning – Provides audible warning during programmed entry and exit periods
-
Professional Monitoring Compatible – Supports compatible alarm reporting configurations
-
Optional Smartphone Control – Available by adding a compatible Bosch B426-M IP Module
Designed for Panel Replacement and Alarm Upgrades
This kit is suitable when the existing alarm panel or cabinet requires replacement but other compatible system components can be retained.
It may be suitable for replacing:
- A faulty or damaged alarm-control panel
- Ageing compatible Bosch alarm equipment
- A control panel affected by power surge or component failure
- An older system requiring improved programming and reporting options
- A damaged or unsuitable control-panel cabinet
Existing codepads, detectors, reed switches, sirens, tamper circuits, plug packs, batteries and cabling must be tested before being reused.
Compatible Bosch Codepad Options
A codepad is required to operate and program the alarm but is not included in this kit. Compatible options include:
-
Icon Codepad – Simple visual status icons and straightforward alarm operation
-
Text Codepad – Written zone names, system information and text-based prompts
-
5" Touch Screen – Compact touchscreen interface for modern alarm control
-
7" Touch Screen – Larger premium touchscreen for clear system operation
Browse our Bosch Solution 2000 codepads to select the most suitable option.
Optional Smartphone Control with Bosch RSC+
Add the Bosch B426-M IP Module to connect a compatible Solution 2000 alarm to the Bosch RSC+ App.
- Arm and disarm the alarm remotely
- Receive push notifications for compatible alarm events
- Receive available system-trouble notifications
- Check alarm-system status from your smartphone
- Review available alarm and user activity
- Operate appropriately configured programmable outputs
The B426-M IP Module is optional and is not included. Internet access and a compatible network connection are required. Mobile data, internet service, professional monitoring or third-party service charges may apply separately.
Remote Controls and Wireless Compatibility
The Bosch Solution 2000 can support compatible RF keyfobs when fitted with the appropriate receiver. This provides convenient remote arming and disarming.
The Solution 2000 does not support wireless motion detectors or wireless reed switches. If wireless alarm detectors are required, consider the expandable Bosch Solution 3000.
Optional Bosch Alarm Components
Technical Specifications
| Brand |
Bosch |
| Alarm platform |
Bosch Solution 2000 |
| Control panel |
ICP-SOL2-P |
| Product type |
Control-panel and cabinet upgrade kit |
| Programmable zones |
Eight wired zones |
| Partitions |
Up to two areas |
| User codes |
Up to 20 user PIN codes plus installer code |
| RF keyfobs |
Up to 20 with a compatible receiver |
| Compatible codepads |
Up to four; not included |
| Programmable outputs |
Four onboard outputs |
| Event history |
Up to 256 events |
| Primary power supply |
Not included |
| Backup battery |
Not included |
| IP connectivity |
Optional B426-M IP Module required |
| Wireless detectors |
Not supported |
| Alarm cable |
Not included |
Ideal Applications
- Replacing a faulty Solution 2000 control panel
- Upgrading compatible ageing Bosch alarm equipment
- Homes, units and residential properties
- Offices and reception areas
- Retail stores and shopfronts
- Small commercial properties
- Pre-wired properties with compatible existing alarm components
- Custom installer-designed Bosch alarm systems
Installation and Compatibility
The Solution 2000 control panel must be installed, programmed and matched with a compatible codepad, power supply, backup battery and field devices. Professional installation by a suitably licensed security technician is recommended.
CTC Communications provides professional alarm system upgrades across Sydney and supplies compatible Bosch alarm products Australia-wide.
Product Downloads
Why Buy Bosch Security from CTC Communications?
- Bosch Certified Platinum Partner
- Security industry specialists since 1993
- NSW Master Security Licence 000102543
- ASIAL and ISO certified
- Professional alarm installation across Sydney
- Australia-wide supply of Bosch alarm products
- Help matching alarm panels, codepads, detectors and accessories
