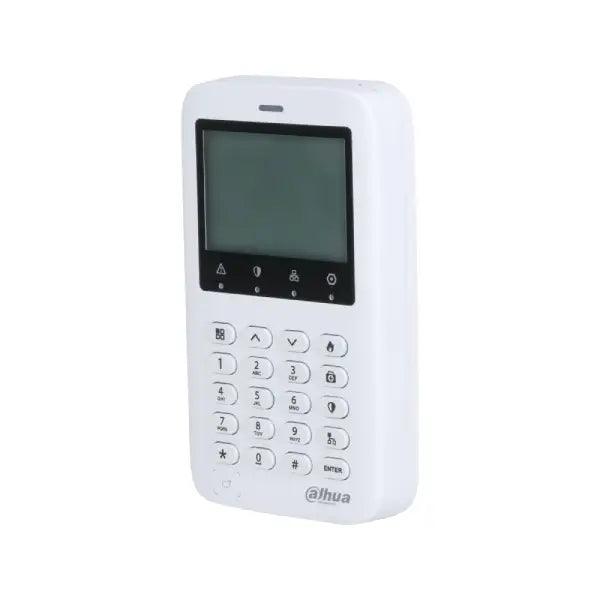

Dahua ARK50C-R Wired Alarm Keypad

Dahua ARK50C-R Wired Alarm Keypad

The Dahua ARK50C-R Wired Alarm Keypad provides convenient local control and clear system information for compatible Dahua wired alarm installations. Its 128 × 64 LCD, dedicated function buttons and five status indicators help users quickly check zones, identify faults and manage common alarm functions.

Users can arm and disarm the system locally or with a compatible IC card, while the built-in buzzer and housing tamper support practical day-to-day operation and system security.

Key Features

• Clear LCD display: View zone status, system faults, program information and communication parameters.
• Five status indicators: Quickly identify zone, fault, arm/disarm, network and communication conditions.
• Flexible alarm control: Arm and disarm locally or using a compatible IC card, with support for up to 32 cards.
• Dedicated emergency buttons: Fire and medical buttons provide fast access to configured emergency functions.
• Advanced system operations: Supports alarm cancellation, zone bypass and unbypass, relay operation, controller programming and walk testing.
• Configuration protection: Retains configured parameters during a power failure.
• Secure communication: Supports AES128 encryption and housing tamper protection.
• Remote updates: Firmware can be updated through a compatible Dahua alarm controller.

System Control and Visibility

The keypad brings essential alarm functions together in one accessible interface. Number and navigation keys are supported by dedicated Menu, Arm, Bypass, Fire, Medical and Enter buttons, making routine operation and system checks straightforward for authorised users.

The search functions provide useful information for both users and technicians, including zone conditions, faults, program version and communication details.

Compatibility and Installation

The ARK50C-R connects to a compatible Dahua wired alarm controller using RS-485. It is not a direct replacement for a wireless AirShield keypad, so the alarm controller model, system design and wiring requirements should be confirmed before ordering.

For other compatible detectors, sirens, keypads and system components, browse our range of Dahua alarm system accessories.

Technical Specifications

• Model: DHI-ARK50C-R
• Display: 128 × 64 LCD
• Display size: 56.27 × 38.35 mm
• Status indicators: Zone, fault, arm/disarm, network and communication
• Controls: Number keys 0–9, Menu, Up, Down, *, #, Fire, Medical, Arm, Bypass and Enter
• Wired interface: 1 × RS-485
• Card support: Up to 32 compatible IC cards
• IC card frequency: 13.56 MHz
• Carrier frequency: 433.1 MHz
• Wireless communication distance: Up to 80 m in open conditions
• Encryption: AES128
• Audio: Built-in buzzer
• Tamper protection: Housing tamper
• Casing: PC + ABS
• Language: English
