Best For: Installing an FSH FEM5700DM monitored double magnetic lock on inward-opening double doors where standard direct mounting is not suitable.

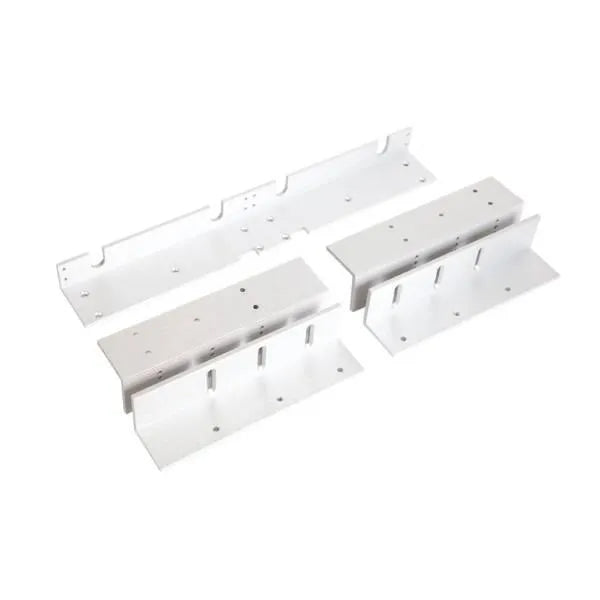

FSH AMZB1D-LPDSS Double L&Z Bracket – Stainless Steel, Suits FEM5700DM
The FSH AMZB1D-LPDSS Double L&Z Bracket is a stainless steel mounting accessory designed for the FSH FEM5700DM monitored double electromagnetic lock. It provides the mounting arrangement required for inward-opening double doors where the magnetic lock and armature plates cannot be correctly aligned using a standard direct installation.
The double L&Z bracket set allows the magnetic lock housing to be secured near the door-frame header while positioning the armature plates on the two inward-opening door leaves. Its durable stainless steel construction provides a strong, reliable and professional mounting solution for commercial access control installations.
Key Features
- Double L&Z bracket set for monitored magnetic locks
- Designed for the FSH FEM5700DM
- Suitable for inward-opening double doors
- Durable stainless steel construction
- Supports correct magnet and armature alignment
- Provides a secure surface-mounted installation
- Suitable for commercial access control applications
- Designed for professional security and locksmith installations
- No electrical connection required
- Five-year Tricare warranty
Designed for Inward-Opening Double Doors
Magnetic locks are commonly mounted directly beneath the door-frame header on outward-opening doors. This arrangement may not be possible on inward-opening doors because the armature plates must remain correctly aligned with the magnetic lock while allowing the doors to open inwards.
The AMZB1D-LPDSS L&Z bracket set repositions the magnetic lock and armature plates for an inward-opening double-door configuration. The bracket components provide the offset needed to achieve secure contact across both magnetic locks.
Correct Compatibility
This double bracket is designed for the monitored double-door version of the FEM5700 Series:
-
Compatible model: FSH FEM5700DM monitored double magnetic lock
-
Door configuration: inward-opening double doors
The AMZB1D-LPDSS should not be confused with the AMZB1-LPDSS, which is intended for the single monitored FEM5700M magnetic lock. Confirm the magnetic lock model before ordering.
Why Correct Alignment Matters
A magnetic lock only achieves its rated holding performance when the magnet and armature plate make full, even contact. Poor alignment, an incorrectly selected bracket or a rigidly fixed armature plate can significantly reduce holding strength.
The L&Z mounting arrangement helps position the two armature plates correctly against the FEM5700DM magnets while allowing the required movement for secure magnetic contact.
Technical Specifications
| Brand |
FSH |
| Model |
AMZB1D-LPDSS / FSHAMZB1D-LPDSS |
| Product Type |
Double L&Z magnetic lock bracket set |
| Compatible Lock |
FSH FEM5700DM monitored double magnetic lock |
| Door Configuration |
Inward-opening double doors |
| Material |
Stainless steel |
| Mounting |
Surface mount |
| Electrical Connection |
Not required |
| Warranty |
Five-year Tricare warranty |
Ideal Applications
- Commercial inward-opening double doors
- Office building entrances
- Schools and education facilities
- Apartment common-area entrances
- Warehouses and industrial buildings
- Government and council facilities
- Restricted-access double doors
- Monitored commercial access control systems
Installation Note
The AMZB1D-LPDSS should be installed by a qualified locksmith, security technician or access control installer. The installer must confirm the FEM5700DM model, door opening direction, frame dimensions and available mounting surface before installation.
Both magnetic locks and armature plates must be correctly aligned. The armature plates should retain the movement required to make full contact with the magnets and should not be rigidly fixed in a way that reduces holding performance.
Why Choose the FSH AMZB1D-LPDSS?
- Purpose-designed for the monitored FEM5700DM double maglock
- Provides the correct arrangement for inward-opening double doors
- Durable stainless steel construction
- Supports accurate magnet and armature alignment
- Helps maintain reliable magnetic lock performance
- Provides a strong and professional mounting finish
