Best For: Installing an FSH FEM4300 or FEM4300M single magnetic lock on an inward-opening door where standard direct mounting is not suitable.

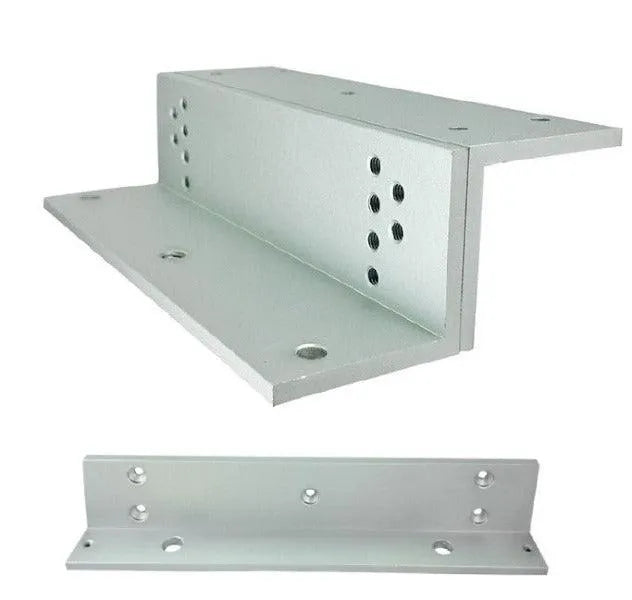

FSH AMZB4300 L&Z Bracket – Suits FEM4300 and FEM4300M Magnetic Locks
The FSH AMZB4300 L&Z Bracket is an adjustable mounting accessory designed for the FSH FEM4300 and FEM4300M single electromagnetic locks. It provides the mounting arrangement required for inward-opening doors where the magnetic lock and armature plate cannot be correctly aligned using a standard direct installation.
The bracket allows the magnetic lock body to be secured near the door-frame header while positioning the armature plate on the inward-opening door. Its silver, satin-anodised finish complements the standard FEM4300 Series magnetic locks and provides a clean professional result.
Key Features
- Adjustable L&Z magnetic lock bracket set
-
Compatible with the FSH FEM4300 non-monitored maglock
-
Compatible with the FSH FEM4300M monitored maglock
- Designed for inward-opening single doors
- Supports correct magnet and armature alignment
- Suitable where direct mounting is not possible
- Silver satin-anodised finish
- Surface-mounted installation
- No electrical connection required
- Designed for professional access control installations
- Five-year warranty
Designed for Inward-Opening Doors
On many outward-opening doors, a magnetic lock can be installed directly beneath the door-frame header. This arrangement is generally not suitable for an inward-opening door because the armature plate must remain aligned with the magnet while allowing the door to swing inwards.
The AMZB4300 L&Z bracket repositions the magnetic lock and armature plate for an inward-opening configuration. The L bracket supports the magnetic lock near the header, while the Z bracket positions the armature plate on the door.
Compatible Magnetic Locks
-
FSH FEM4300: slimline single non-monitored magnetic lock
-
FSH FEM4300M: slimline single monitored magnetic lock
The AMZB4300 is designed for the standard silver FEM4300 Series. Black magnetic locks should be paired with the separate AMZB4300-BLK bracket to provide a matching finish.
Why Correct Alignment Matters
A magnetic lock only achieves its rated holding performance when the magnet face and armature plate make full, even contact. Poor alignment, an incorrectly selected bracket or a rigidly fixed armature plate can significantly reduce the effective holding force.
The adjustable L&Z arrangement helps position the magnetic lock and armature plate correctly for reliable operation on an inward-opening door.
Technical Specifications
| Brand |
FSH |
| Model |
AMZB4300 / FSHAMZB4300 |
| Product Type |
Adjustable L&Z magnetic lock bracket set |
| Compatible Models |
FSH FEM4300 and FEM4300M |
| Door Configuration |
Inward-opening single door |
| Finish |
Silver / satin anodised |
| Mounting |
Surface mount |
| Electrical Connection |
Not required |
| Warranty |
Five years |
Selecting the Correct FEM4300 Bracket
-
AMZB4300: silver L&Z bracket for a standard FEM4300 or FEM4300M single lock
-
AMZB4300-BLK: black L&Z bracket for FEM4300-BLK or FEM4300M-BLK models
-
AMZB4300D: double L&Z bracket for FEM4300D or FEM4300DM double locks
Confirm the magnetic lock model, finish, door configuration and opening direction before selecting the mounting bracket.
Ideal Applications
- Commercial inward-opening doors
- Office entrances and staff-access doors
- Schools and education facilities
- Apartment common-area doors
- Retail and commercial premises
- Intercom-controlled entrances
- Access-controlled internal doors
Installation Note
The AMZB4300 should be installed by a qualified locksmith, security technician or access control installer. The installer must confirm the door opening direction, frame dimensions, mounting surface and magnetic lock model before installation.
The armature plate should retain the movement required to make full contact with the magnetic lock. It should not be rigidly fixed in a way that prevents correct alignment or reduces holding performance.
Why Choose the FSH AMZB4300?
- Purpose-designed for the standard FEM4300 Series
- Suitable for monitored and non-monitored single maglocks
- Provides the correct arrangement for inward-opening doors
- Adjustable design supports accurate alignment
- Satin-anodised finish matches standard FEM4300 locks
- Helps maintain reliable magnetic lock performance
- Provides a clean professional installation finish
