Best For: Modern double-door entrances, offices, retail premises and commercial access points requiring monitored fail-safe magnetic locking with a discreet black finish.

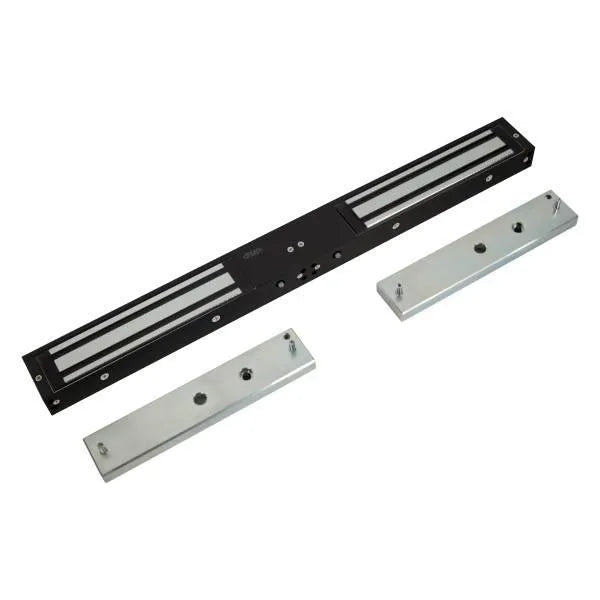

FSH FEM4300DM-BLK Slimline Double Monitored Magnetic Door Lock – Black, 280kg, 12/24V DC
The FSH FEM4300DM-BLK is a slimline, monitored double electromagnetic door lock designed for access-controlled pairs of doors. Finished in black for modern commercial interiors, it incorporates two magnetic locks, with each magnet providing up to 280kg holding strength.
The FEM4300DM-BLK operates from field-selectable 12V or 24V DC power and provides fail-safe, Power To Lock operation. Integrated Lock Status Sensors, Door Status Sensors and red/green LED indication provide valuable feedback to compatible access control and building management systems.
Key Features of the FSH FEM4300DM-BLK
-
Monitored double magnetic lock for pairs of access-controlled doors
- Up to 280kg holding strength per magnetic lock
- Black anodised aluminium finish
- Lock Status Sensor (LSS)
- Door Status Sensor (DSS)
- Red and green lock status LED indication
- Slimline surface-mount design
- Field-selectable 12V or 24V DC operation
- Fail-safe, Power To Lock operation
- Built-in MOV surge protection
- No residual magnetism when power is removed
- Two armature plates supplied
- Fire tested for up to 2 hours, subject to the approved doorset
- Five-year manufacturer warranty
Monitored Door and Lock Status
The FEM4300DM-BLK provides monitoring for both the magnetic lock and the door position:
-
LSS – Lock Status Sensor: indicates whether the magnetic lock has achieved a secure locked condition.
-
DSS – Door Status Sensor: indicates whether the corresponding door leaf is open or closed.
These outputs allow a compatible access control system to identify conditions such as a door being held open, failing to close or not achieving a secure lock status.
Red and Green LED Indication
Integrated red and green LED indication provides an immediate visual reference for the lock status. This helps installers, security personnel and building managers quickly identify whether the magnetic locks are secure or released.
Black Finish for Modern Installations
The black housing provides a discreet, coordinated appearance when installed with dark door frames, black architectural hardware and contemporary commercial interiors.
Its slimline profile makes the FEM4300DM-BLK particularly suitable for office foyers, retail entrances, apartment buildings and controlled staff areas where appearance is an important part of the installation.
Designed for Double-Door Entrances
The FEM4300DM-BLK combines two electromagnetic locks within a single double-door housing. Each magnetic lock operates with its own armature plate and monitoring functions, allowing both door leaves to be secured and monitored through the access control system.
Fail-Safe Magnetic Locking
The FEM4300DM-BLK operates in fail-safe or Power To Lock mode. Power is applied to hold the doors secure, and both magnetic locks release when power is removed.
This allows the lock to be integrated with compatible access control systems, emergency exit devices and fire-alarm interfaces. Emergency egress and release requirements must be considered as part of the complete installation.
Dual-Voltage 12/24V DC Operation
Field-selectable 12V or 24V DC operation allows the lock to be used with a wide range of access control panels, intercom systems, card readers, keypads and professional power supplies.
Each magnet draws approximately 500mA at 12V DC or 250mA at 24V DC. For the complete double magnetic lock, allow approximately 1A at 12V DC or 500mA at 24V DC.
No Residual Magnetism
The FEM4300DM-BLK is designed without residual magnetism after power is removed. This helps both door leaves release cleanly following an authorised access request, emergency release or interruption to the power supply.
Technical Specifications
| Brand |
FSH |
| Model |
FEM4300DM-BLK / FSHFEM4300DM-BLK |
| Series |
FEM4300 Series |
| Product Type |
Slimline monitored double electromagnetic lock |
| Door Configuration |
Double door |
| Colour |
Black |
| Holding Strength |
Up to 280kg per magnetic lock |
| Operation |
Fail safe / Power To Lock |
| Input Voltage |
12V or 24V DC, field selectable |
| Total Current Draw |
Approximately 1A at 12V DC or 500mA at 24V DC |
| Monitoring |
Lock Status Sensor and Door Status Sensor |
| Status Indication |
Red and green LED |
| Mounting |
Surface mount |
| Magnet Dimensions |
477mm x 48mm x 25mm |
| Armature Plate Dimensions |
185mm x 38mm x 12mm – two supplied |
| Housing |
Black anodised aluminium |
| Surge Protection |
Built-in MOV protection |
| Fire Rating |
Up to 2 hours in accordance with AS 1905.1:2015, subject to the approved doorset |
| Warranty |
Five-year manufacturer warranty |
Ideal Applications
- Modern double commercial entrances
- Office foyers and administration buildings
- Retail stores and shopping centres
- Controlled staff entrances
- Apartment and shared-building entrances
- Education and healthcare facilities
- Dark-framed doors and contemporary interiors
- Doors requiring monitored access control
Fire-Rated Door Applications
The FEM4300DM-BLK has been tested for use on compatible fire-door assemblies for up to two hours in accordance with AS 1905.1:2015. Approval depends on the complete doorset, mounting method and fire-door manufacturer requirements.
Suitability must be confirmed before installing the magnetic lock on a fire-rated door.
Installation Note
The FSH FEM4300DM-BLK should be installed by a qualified security or access control technician. Door alignment, mounting brackets, power supply capacity, monitoring connections, cable protection, emergency release devices and fire-alarm integration must be confirmed during system design.
A compatible black double L&Z bracket may be required where the door and frame configuration does not support direct surface mounting.
Why Choose the FSH FEM4300DM-BLK?
- Professional black finish for modern door hardware
- Purpose-built locking for double-door entrances
- Up to 280kg holding strength per door leaf
- LSS and DSS monitoring for improved system feedback
- Red and green visual status indication
- Flexible 12V or 24V DC operation
- Clean release without residual magnetism
- Five-year manufacturer warranty
