Best For: Homes, shops and small businesses needing four-camera coverage of entrances, driveways or indoor areas, with local recording and straightforward PoE connections.

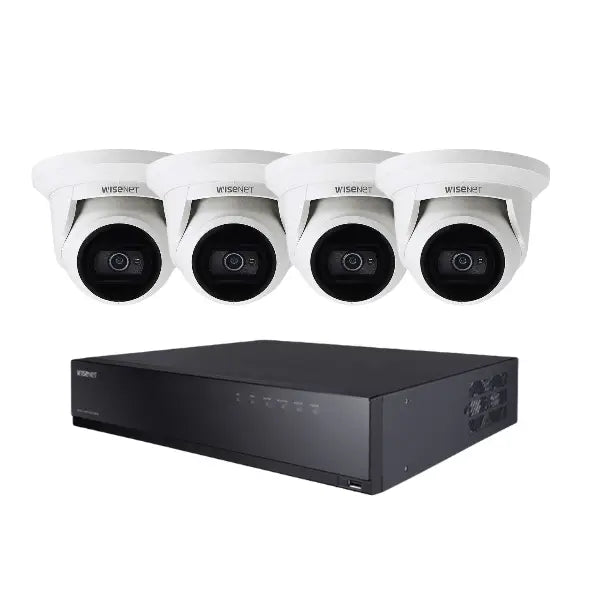

Hanwha Vision 4MP CCTV Kit with 4 Turrets & HDD Options
This Hanwha Vision CCTV kit combines four HV-ANE-L7012R 4MP turret cameras and an HV-QRN-430S 4-channel PoE recorder, with Western Digital or Seagate hard drive options in 2TB, 4TB and 6TB capacities. The compact cameras provide practical coverage for homes and small businesses, while 3mm fixed lenses, 120dB WDR and infrared night vision support day-and-night surveillance.
The cameras connect to the recorder using Ethernet cabling, with the NVR's built-in PoE ports carrying both power and video data. Browse the individual Hanwha Vision turret camera listing for more component information.
What's Included
| Quantity |
Component |
Model / Capacity |
| 1 |
4-channel network video recorder with four PoE ports |
Hanwha Vision QRN-430S |
| 4 |
4MP outdoor turret / flateye cameras |
Hanwha Vision ANE-L7012R |
| 1 |
Hard drive for local video recording |
2TB, 4TB or 6TB — select your hard drive brand and capacity |
Key Features
-
Four 4MP cameras: up to 2560 × 1440 resolution at 30fps with H.265/H.264.
-
Compact turret design: suitable for entrances, side access and indoor or outdoor viewing positions.
-
3mm fixed lenses: provide wide-angle coverage for general surveillance.
-
Infrared night vision up to 20m: supports black-and-white imaging in darkness.
-
120dB WDR: helps balance bright backgrounds and shaded areas.
-
Four built-in PoE ports: power and data over each camera's Ethernet cable.
-
Selectable local storage: recording capacity depends on frame rate, compression, bitrate and recording schedule.
-
Motion and event detection: camera analytics include tampering, defocus, virtual area and virtual line detection.
-
H.265 and WiseStream II: camera compression features help manage bandwidth and storage use.
Why Choose a Four-Camera Turret Kit?
Four compact turret cameras provide matching coverage for entrances, driveways, side access and stockrooms. All four recorder channels are used by the supplied cameras. Camera position and lighting determine the detail captured; wide-angle coverage does not guarantee identification at every distance.
Camera Specifications
| Specification |
ANE-L7012R Turrets (4 supplied) |
| Maximum resolution |
4MP — 2560 × 1440 |
| Frame rate |
Up to 30fps at 4MP (H.265/H.264) |
| Lens |
3mm fixed, F1.6 |
| Infrared range |
Up to 20m |
| Wide Dynamic Range |
120dB |
| Video compression |
H.265 / H.264 / MJPEG |
| Weather / impact protection |
IP67 / IK10 |
| Power |
PoE — IEEE 802.3af, Class 3 |
| Operating temperature |
−30°C to +55°C |
QRN-430S Recorder Specifications
| Specification |
Details |
| Network camera inputs |
4 channels |
| Supported camera resolution |
Up to 8MP; supplied cameras are 4MP |
| Recording bandwidth |
Up to 40Mbps |
| Video compression |
H.265 / H.264 / MJPEG |
| Camera connections |
4 built-in PoE ports |
| Monitor output |
HDMI |
| Included storage |
Western Digital or Seagate; 2TB, 4TB or 6TB as selected |
| Recorder storage capacity |
1 SATA hard-drive slot; supports up to 6TB |
| Recording modes |
Continuous, scheduled and event recording |
| Remote viewing |
Wisenet mobile, web viewer and compatible Hanwha viewing software; network configuration and internet connection required for off-site access |
Expansion planning: The four supplied cameras use all four recorder channels. Choose a recorder with more channels if you need additional cameras. The NVR is for a suitable indoor location; outdoor protection ratings apply to the cameras.
Frequently Asked Questions
Can these cameras be installed outdoors?
Yes. The ANE-L7012R turrets have IP67 weather protection and IK10 impact protection. Mounting, cable entries and connections must be protected appropriately.
Does this kit include a hard drive?
Yes. Choose a Western Digital or Seagate hard drive in 2TB, 4TB or 6TB capacity from the product options. Recording duration varies with camera count, bitrate, frame rate, compression settings and recording schedule.
Are these cameras AI person and vehicle detection models?
These A Series cameras provide motion detection and event analytics such as virtual line and virtual area detection. AI person and vehicle classification is not specified for these models. Ask CTC Communications about a suitable AI camera package if that feature is required.
Can I view the cameras on my phone?
The QRN-430S supports Wisenet mobile viewing. Remote access requires compatible software, correct network setup and an internet connection at the property.
Is installation included?
Professional installation is available as a separate service. Contact CTC Communications for a Sydney installation quote covering camera positioning, cabling, recorder configuration and remote viewing setup.
Warranty & Local Support
Hanwha Vision equipment in this kit is covered by the listed 3-year manufacturer warranty, subject to warranty terms. Hard-drive warranty terms depend on the supplied drive. CTC Communications provides a 1-year labour warranty for installation carried out by our team.
