Best For
Property TypeHomes, villas and townhouses
System TypeTwo-wire HD villa intercom
InstallationNew installations and suitable retrofits
Remote AccessHik-Connect via indoor-station Wi-Fi
Simple Two-Wire Video Intercom with Card and Smartphone Access

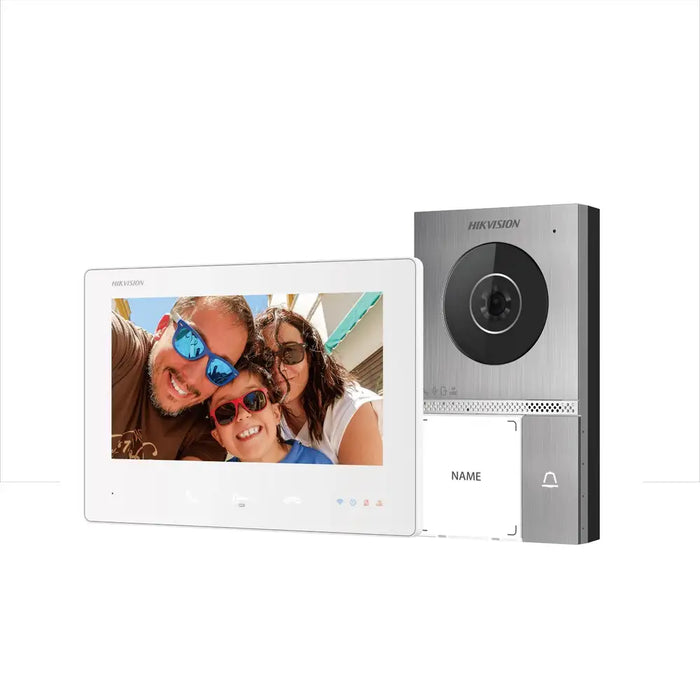

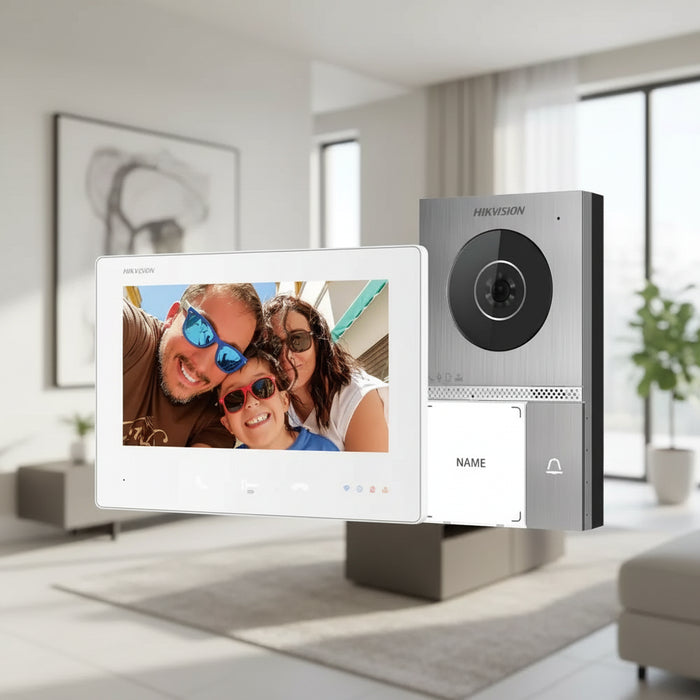

The Hikvision DS-KIS707EY 2-Wire 2MP HD Villa Intercom Kit is a complete surface-mounted entry solution for a single home, villa or townhouse. It combines the DS-KV7413EY-IME2 one-press call-button door station with the white DS-KH7300EY-WTPE2 7-inch indoor touchscreen, allowing residents to see and speak with visitors before releasing a connected door or gate.
Power, video, audio and control are carried over a simple two-wire connection between the kit devices. The outdoor station also supports compatible M1 cards, while the indoor monitor provides remote answering and unlocking through the Hik-Connect app when connected to a suitable 2.4 GHz Wi-Fi network.
Complete powered kit: The required intercom power supply/adaptor is included. A separate power supply may still be required for an electric strike, magnetic lock or other door hardware, depending on the selected locking device.
What’s Included in the DS-KIS707EY Kit?
2MP Villa Door Station
1 × DS-KV7413EY-IME2
Surface-mounted door station with a 2MP camera, illuminated one-press call button, M1 card reader, two-way audio and two-lock control.
7-Inch White Indoor Monitor
1 × DS-KH7300EY-WTPE2/White
White direct-power indoor station with a 7-inch capacitive touchscreen, 1024 × 600 resolution, 2.4 GHz Wi-Fi, Hik-Connect support and local entry control.
32 GB TF Card
1 × 32 GB TF card
Supplied for compatible visitor-image capture and local indoor-station functions.
Installation Accessories
Rain shield and required kit power supply/adaptor
The supplied accessories support a neat surface-mounted villa installation. Door-lock hardware and site cabling are not included unless stated separately.
Key Features
-
Two-wire connection
Power and communication share the same pair of conductors.
-
2MP HD entrance video
Clear visitor identification with WDR support.
-
Wide-angle camera
135° horizontal and 85° vertical field of view.
-
7-inch touchscreen
1024 × 600 capacitive colour display.
-
Hik-Connect access
Answer calls and release a connected entrance remotely.
-
One-press calling
Illuminated physical call button for visitors.
-
M1 card reader
Supports compatible access cards for authorised users.
-
Two-lock control
Supports compatible door, gate or dual-entry arrangements.
-
Outdoor-ready housing
IP65 weather resistance and IK08 impact protection.

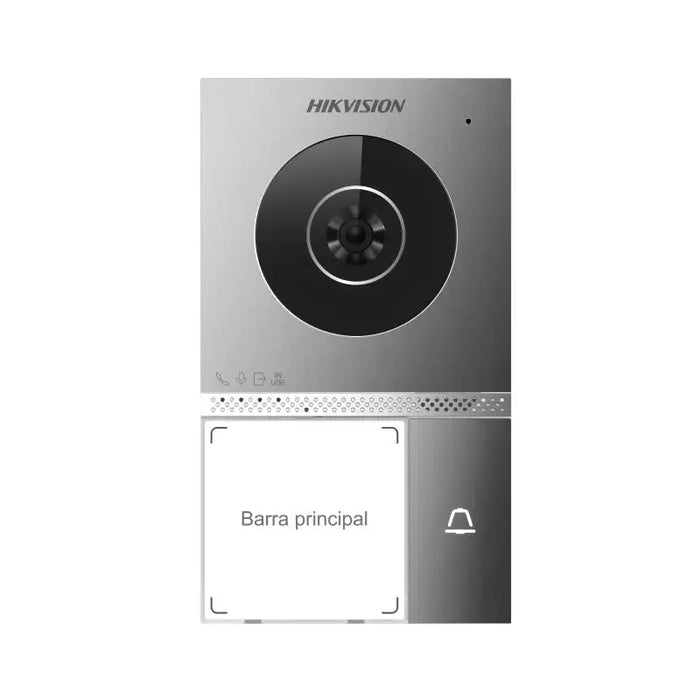

DS-KV7413EY-IME2 Villa Door Station
The outdoor station combines simple one-press visitor calling, HD video and M1 card access in a compact surface-mounted unit.
- 2MP HD camera with WDR support
- 135° horizontal and 85° vertical viewing angle
- Infrared supplementary lighting for low-light viewing
- Built-in microphone and speaker
- Noise suppression and echo cancellation
- Illuminated physical call button with nameplate
- Compatible M1 card access
- Capacity for up to 2,000 users
- Two lock-control outputs
- Door-contact, exit-button and alarm-input connections
- IP65 weather-resistant and IK08 impact-resistant construction

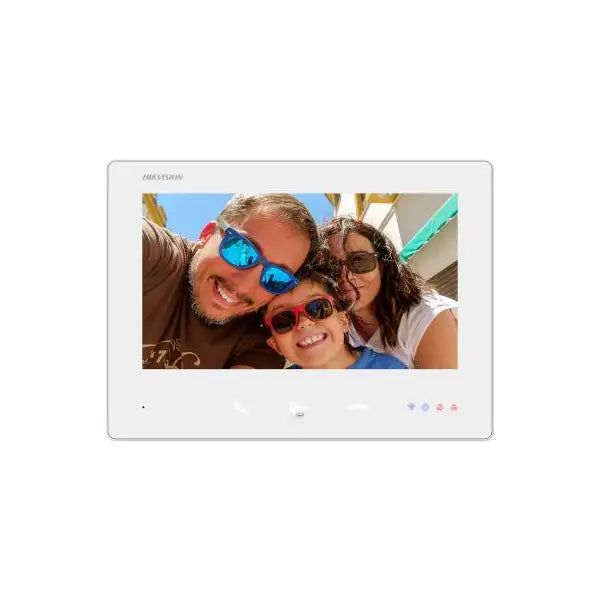

DS-KH7300EY-WTPE2 Indoor Monitor
The white indoor station provides straightforward call handling, live entrance viewing, two-way conversation and door release from its 7-inch touchscreen.
- 7-inch capacitive colour touchscreen
- 1024 × 600 display resolution
- Built-in microphone and loudspeaker
- Three dedicated touch buttons for common actions
- Up to four custom virtual buttons
- 2.4 GHz Wi-Fi connectivity
- Hik-Connect remote call and unlock support
- TF card support up to 128 GB
- Supplied 32 GB TF card
- Supports up to three linked indoor extensions in a compatible design
Hik-Connect Smartphone Control
Connect the indoor monitor to a suitable network and pair the system with Hik-Connect for more flexible visitor and entry management.
- Receive visitor calls on a compatible smartphone
- View live video from the entrance
- Speak with visitors using two-way audio
- Remotely release a correctly connected door or gate
- Stay connected when away from the indoor monitor
M1 Card Access and Two-Lock Control
The DS-KV7413EY-IME2 supports compatible M1 cards or fobs, giving authorised users convenient keyless entry. Two lock-control outputs provide flexibility for a pedestrian gate and door, or another compatible dual-entry arrangement, subject to the selected hardware and installation design.
No keypad: The DS-KIS707EY uses a one-press call-button door station and does not support PIN-code entry. Customers requiring a numeric keypad should consider the Hikvision DS-KIS708EY.
Door hardware note: Electric strikes, magnetic locks, gate controllers, exit buttons, door contacts, lock power supplies and associated cabling are not included unless specifically stated in the product options or quotation. Hardware must be selected to suit the door, gate and required fail-safe or fail-secure operation.
Two-Wire Installation Requirements
The supplied 24VDC power adaptor connects to the DS-KH7300EY-WTPE2 indoor station, which powers and communicates with the door station over the two-wire link. A separate DS-KAD distributor is not required for the standard one-door, one-monitor kit arrangement.
This kit is designed to simplify installation, but existing cable should always be inspected before it is reused. Conductor material, cable size, condition, joins, route length, polarity and electrical interference can affect performance.
- Two suitable conductors between the door station and indoor monitor
- Required intercom power supply/adaptor included
- No separate DS-KAD distributor required for the standard kit layout
- Protected power-point location for the supplied power equipment
- Reliable 2.4 GHz Wi-Fi and internet access for Hik-Connect functions
- Compatible door or gate hardware for remote release
- Correct termination, polarity, configuration and app setup
- Professional installation is recommended
CTC Communications offers Hikvision intercom installation across Sydney, including cable assessment, system setup, app configuration and advice on suitable entry-release hardware.
Ideal Applications
Homes and Villas
See, speak with and admit visitors from the indoor screen or a compatible smartphone.
Intercom Upgrades
Modernise a suitable two-core cable route after the existing wiring has been assessed.
Townhouses and Duplexes
A practical single-residence solution with a compact surface-mounted entrance station.
Gates and Small Offices
Combine video calling, M1 card access and compatible remote gate or door release.
Technical Specifications
Hikvision DS-KIS707EY technical specifications
| Specification |
Door Station |
Indoor Monitor |
| CTC / distributor model |
HIK-KV7413EYIME2 |
HIK-KH7300EYWE2W |
| Hikvision model family |
DS-KV7413EY-IME2 |
DS-KH7300EY-WTPE2/White |
| Camera / display |
2MP HD camera |
7-inch capacitive TFT touchscreen |
| Resolution |
Up to 1920 × 1080 |
1024 × 600 |
| Viewing angle |
135° horizontal; 85° vertical |
Not applicable |
| Audio |
Built-in microphone and loudspeaker; noise suppression and echo cancellation |
Built-in microphone and loudspeaker |
| Connection |
Two-wire HD interface |
Two-wire HD interface; 2.4 GHz Wi-Fi |
| Access methods |
Compatible M1 card, indoor station and Hik-Connect |
Indoor-screen and Hik-Connect door release |
| Lock control |
2 outputs: 1 relay up to 30 VDC, 2 A; 1 DC pulse output |
Control through connected door station; 1 relay up to 30 VDC, 1 A |
| Storage |
Not applicable |
TF card up to 128 GB; 32 GB card included |
| Power |
48 V from DS-KH7300EY-WTPE2 over two wires, or 12 VDC local input |
24 VDC, 2.5 A; kit adaptor included |
| Dimensions |
165 × 95 × 25 mm |
190.2 × 138.2 × 20 mm |
| Operating temperature |
-40°C to 60°C |
-10°C to 50°C |
| Installation |
Surface mount with supplied rain shield |
Indoor wall mounting |
| Protection rating |
IP65 and IK08 |
Indoor use |
Specifications and kit inclusions may change without notice. Confirm component codes, existing-cable suitability and installation requirements before ordering.
