Three steps to configure the Display Module (DS-KD-DIS)

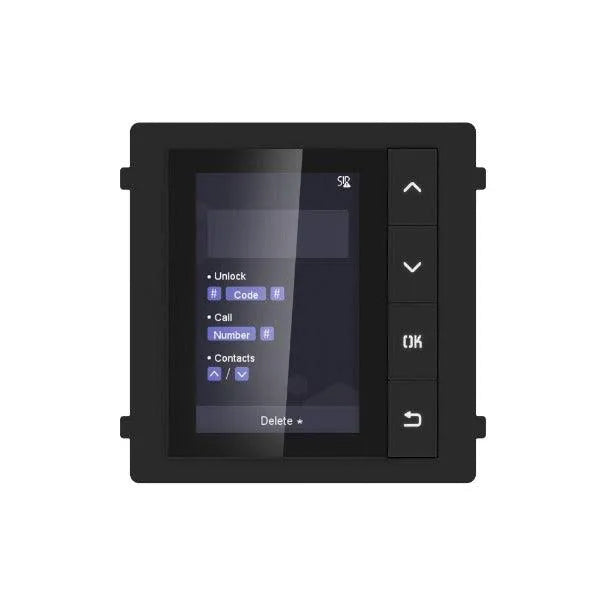

Hikvision DS-KD-DIS Gen2 Intercom Display Module

Name: Hikvision DS-KD-DIS Gen2 Intercom Display Module
SKU: DS-KD-DIS
Price: 122.62 AUD

SKU DS-KD-DIS

by Hikvision

Availability:

in stock, ready to be shipped

Save 25%

$164.00

$164.00 - $164.00

$164.00

$122.62

$122.62 - $122.62

$122.62

Quantity

Shipping & Refunds

Shipping Refund Policy

Hikvision Keypad module with backlight, input pin code to open door, call indoor station via inputting room number, powered by other module.

Model: DS-KD-DIS

KD8 Series Pro Modular Door Station

Modular door station Display module needs mounting bracket
3.5 inch LCD screen, 4 buttons, backlight, IP65
Dial number display, pin code unlock, contact list display
Up to 2000 contacts can be added to the device
Stores and searches contact list
Multiple languages

Specifications

Button: 4( Up, Down, OK, Back)
Installation: Flush mounting, surface mounting
Protective Level: IP65
Working Temperature: 20° C to +60° C(-4° F to 140° F)
Working Humidity: 10% to 95%
Dimensions: 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
Application Environments: Outdoor
Power Consumption: 2.5 W

Warranty

Hikvision Intercom products are covered by a 2 years Manufacturer Warranty from the date of purchase.
CTC Communications will cover postage for all replacement parts, but will not cover labour for installation cost.
CTC Communications offers a 1 year warranty on labour when the system is installed by us.
