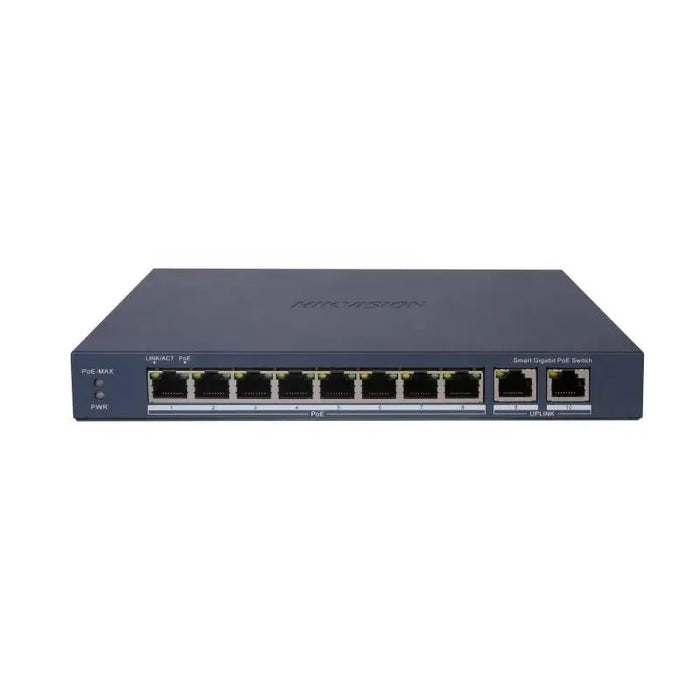

Hikvision DS-3E1510P-EI 8-Port Gigabit Smart PoE Switch
The Hikvision DS-3E1510P-EI is an 8-port Gigabit Smart PoE switch designed for reliable CCTV, intercom and IP security network installations. With 8 Gigabit PoE ports, 2 Gigabit RJ45 uplink ports, a 110W total PoE power budget and smart management features, this switch is ideal for powering IP cameras, intercom door stations, access control devices and other PoE network equipment.
This Hikvision Smart Managed PoE Switch provides easy deployment, monitoring and maintenance for professional security systems. Features such as PoE watchdog, long-range PoE transmission up to 300m, 802.1Q VLAN, STP/RSTP loop prevention and cable detection help installers build a more stable and secure network for homes, businesses and commercial CCTV systems.
Explore our full range of security cameras and network security solutions for homes and businesses Australia-wide.
Key Features
- 8 x Gigabit PoE ports for IP cameras and PoE-powered devices
- 2 x Gigabit RJ45 uplink ports for recorder, router or network connection
- 110W total PoE power budget
- Up to 30W output per PoE port
- Supports IEEE 802.3af and IEEE 802.3at PoE standards
- PoE watchdog automatically detects and restarts non-responsive connected cameras
- Long-range PoE transmission up to 300m on ports 1 to 8
- 802.1Q VLAN support for better network planning and security
- STP/RSTP loop prevention support
- Port isolation mode to improve security between connected devices
- Cable detection to help locate network cable faults
- Static link aggregation support
- Web management, Hik-Partner Pro and Hik-Central Pro support
- 6kV surge protection for added reliability
- Metal housing with desk-mounted or wall-mounted installation options
Ideal Applications
- IP CCTV camera systems
- Hikvision NVR and camera installations
- PoE-powered security cameras
- Video intercom systems
- Access control devices
- Home and business surveillance networks
- Retail stores and offices
- Warehouses and commercial premises
- Sites needing managed PoE monitoring and maintenance
Smart Management for Security Networks
The DS-3E1510P-EI is designed to make CCTV network management easier. Through compatible Hikvision software platforms, installers can view network topology, monitor device health, check PoE power usage, restart ports and receive device alarms in real time.
- View port rate and bandwidth utilisation
- Monitor PoE power usage
- Display topology information
- Check alarm status
- Restart ports and connected devices
- Enable long-range mode remotely
- Upgrade the device remotely where supported
PoE Watchdog for Reliable Camera Operation
The PoE watchdog function helps improve system reliability by automatically detecting cameras that stop responding and restarting the relevant PoE port. This can reduce downtime and minimise the need for manual site visits when a connected camera becomes unresponsive.
Long-Range PoE up to 300m
For suitable installations, the DS-3E1510P-EI supports long-range PoE transmission up to 300m on ports 1 to 8. This can be useful for larger properties, warehouses, long cable runs and camera locations positioned further away from the recorder or network cabinet.
Note: Long-range performance can vary depending on the camera model, cable quality and site conditions.
Network Security & Stability
This Hikvision smart PoE switch includes features designed to improve network stability and protect against common installation issues. VLAN, port isolation and loop prevention can help create a cleaner, more secure CCTV network for professional installations.
-
802.1Q VLAN: Supports configurable VLAN IDs and up to 32 VLANs
-
Port Isolation: Helps prevent connected devices from communicating directly with each other
-
STP/RSTP: Helps prevent network loops
-
Cable Detection: Helps identify open circuits, short circuits and cable length issues
-
SNMP v1/v2c: Supports third-party management platform access
Technical Specifications
| Feature |
Specification |
| Model |
DS-3E1510P-EI |
| Switch Type |
8-Port Gigabit Smart PoE Switch |
| PoE Ports |
8 x Gigabit PoE ports |
| Uplink Ports |
2 x Gigabit RJ45 ports |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| Maximum Port Power |
30W per PoE port |
| Total PoE Power Budget |
110W |
| Switching Capacity |
20Gbps |
| Packet Forwarding Rate |
14.88Mpps |
| MAC Address Table |
4K |
| Long Range Mode |
Ports 1 to 8 up to 300m |
| VLAN |
802.1Q VLAN, up to 32 VLANs |
| Loop Prevention |
STP / RSTP support |
| Management |
Web management, Hik-Partner Pro, Hik-Central Pro, SNMP v1/v2c |
| Surge Protection |
6kV |
| Power Supply |
54V DC, 2.22A |
| Maximum Power Consumption |
120W |
| Dimensions |
217.6mm x 27.6mm x 108.5mm |
| Installation |
Desk-mounted or wall-mounted |
| Housing |
Metal material |
| Operating Temperature |
0°C to 40°C |
Installation & Compatibility
The Hikvision DS-3E1510P-EI is suitable for powering compatible PoE IP cameras, intercom devices and security network equipment. It can be used with Hikvision NVRs and wider IP security systems where Gigabit PoE connectivity and smart network management are required.
A compatible NVR, router, network cabinet, patch leads, data cabling and connected PoE devices may be required depending on the installation. Professional setup is recommended for VLAN, long-range mode, topology monitoring, PoE watchdog and remote management configuration.
