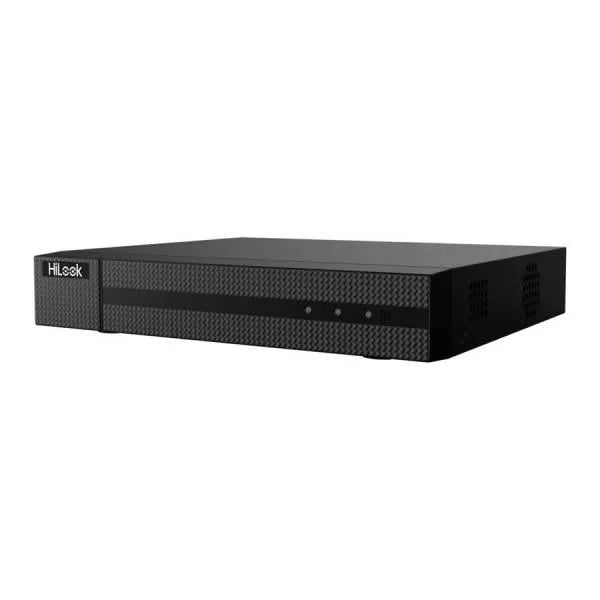

HiLook 4 Channel Digital Video Recorder, DVR-204U-M1

HiLook digital video recorder DVR-204U-M1 It records in crisp resolution up to 5 megapixels, ensuring you always get clear images, no hard drive included

Model: DVR-204U-M1

Digital Video Recorder Features

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 6-ch IP camera inputs (up to 8 MP)
• Up to 8 MP@8 fps encoding capability

Specifications

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate

  Main stream:

  8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 10 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

• Video And Audio
• IP Video Input

  2-ch (up to 6-ch)



  Enhanced IP mode on:

  4-ch (up to 8-ch), each up to 4 Mbps

  Up to 8 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  4-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• CVBS InputPAL/NTSC
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input

  1-ch, RCA (2.0 Vp-p, 1 KΩ)

  4-ch via coaxial cable

• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback4-ch

• Network
• Total Bandwidth96 Mbps
• Remote Connection32
• Network ProtocolTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interfac
• Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each disk
• Alarm In/OutN/A
• USB Interface2 × USB 2.0

• General
• Power Supply12 VDC, 1.5 A
• Consumption≤ 15 W (without HDD)
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
• Weight≤ 1.16 kg (without HDD, 2.6 lb.)
