HiLook 8MP CCTV Kit – 6 Dual IR Turret Cameras, 8CH PoE NVR & HDD Options

HiLook 8MP 4K CCTV Kit with 6 AI Turret Cameras & 8 Channel PoE Recorder

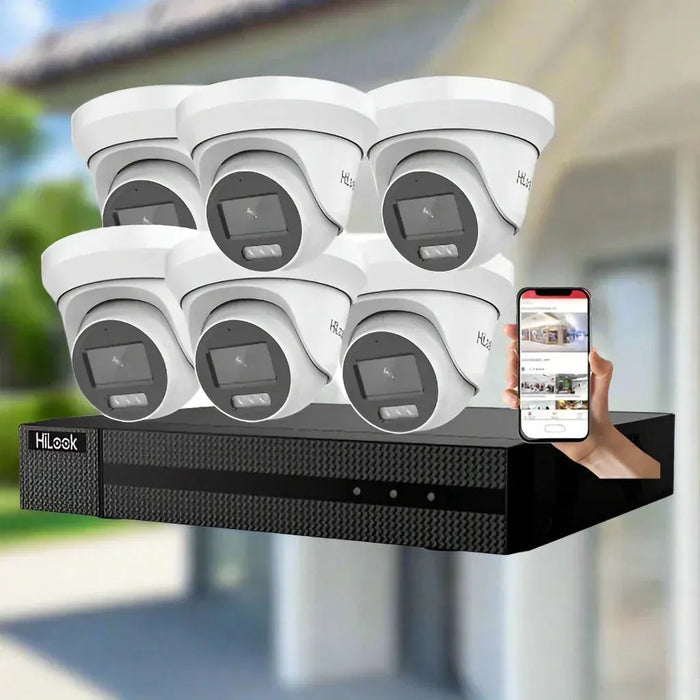

This HiLook CCTV kit combines six IPC-T381H-MU 8MP Dual IR turret cameras with 2.8mm fixed lenses and an NVR-108MH-C/8P 8-channel PoE network video recorder. Human and vehicle classification, built-in arrayed dual microphones and 120dB true WDR provide useful detail and context when monitoring your property.

Choose a Western Digital or Seagate hard drive in 2TB, 4TB or 6TB capacity. The recorder’s eight built-in PoE ports carry power and video data through each camera’s Ethernet cable, with two channels available for future expansion.

What's Included

Key Features

• Six 8MP cameras: detailed video across multiple areas of your home or business.
• 2.8mm fixed lenses: wide-angle coverage for general surveillance.
• Human and vehicle classification: deep-learning camera technology helps focus detection on relevant activity.
• Arrayed dual microphones: record audio alongside video for additional context.
• Dual IR illumination: supports black-and-white surveillance after dark.
• 120dB true WDR: helps balance bright backgrounds and shaded areas.
• IP67-rated cameras: water and dust resistance for outdoor mounting with properly protected connections.
• Eight PoE ports: connect the six supplied cameras and add up to two compatible cameras within the recorder’s bandwidth and power limits.
• H.265+ camera compression: helps manage storage and bandwidth requirements.
• Selectable storage: Western Digital or Seagate in 2TB, 4TB or 6TB capacities.

Six-Camera Coverage with Room to Grow

Monitor entrances, driveway access, side passages, rear doors and indoor areas with six matching turret cameras. The compact camera shape suits wall or ceiling mounting, while two spare recorder channels allow you to extend coverage later.

Camera Specifications

NVR-108MH-C/8P Recorder & Storage

Storage planning: Six 8MP cameras can use substantial storage. Recording duration depends on bitrate, frame rate, compression and recording schedule. Adding cameras increases storage use. Choose the capacity that suits your retention needs.

Recording & Viewing Performance

The NVR supports 8MP recording with an aggregate incoming bandwidth limit of 80Mbps. Configure the combined camera streams within this limit. Recording capacity is separate from local display decoding: multi-camera viewing may use lower-resolution sub-streams rather than displaying all six cameras at full 8MP simultaneously.

Frequently Asked Questions

Can I add more cameras?

Yes. The six supplied cameras use six of the eight recorder channels. Add up to two more compatible cameras within the recorder’s bandwidth and PoE power limits.

Which hard drive is included?

The kit includes the Western Digital or Seagate drive selected when ordering. Available capacities are 2TB, 4TB and 6TB.

Do these cameras provide colour images in complete darkness?

The cameras use infrared illumination for black-and-white night surveillance. These are Dual IR cameras; they are not a white-light colour-night package.

Do the cameras support two-way audio?

The built-in arrayed dual microphones capture audio. They do not provide a speaker for two-way talk.

Can the cameras be installed outdoors?

Yes. The cameras are IP67 rated. Protect cable entries and connections appropriately and install the recorder indoors.

Can I view the system on my phone?

Remote viewing is available through HiLookVision with compatible system settings and correct network configuration. Off-site access requires an internet connection at the property.

Is installation included?

Professional installation is available as a separate service. Contact CTC Communications for a quote covering camera positioning, cabling and system configuration.
