Best For: Homes and small offices wanting a touchscreen video intercom with smartphone answering and remote door-release capability

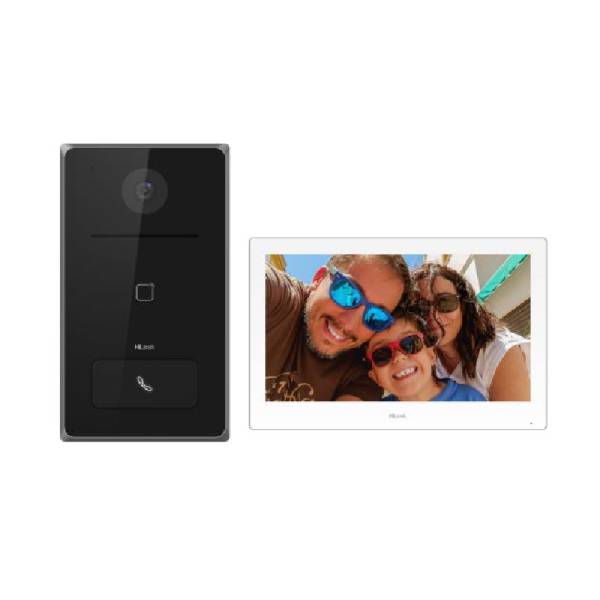

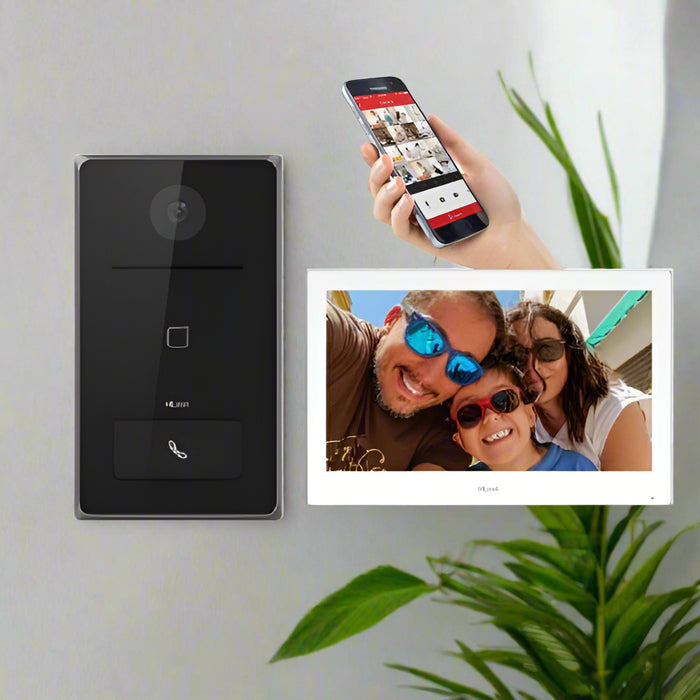

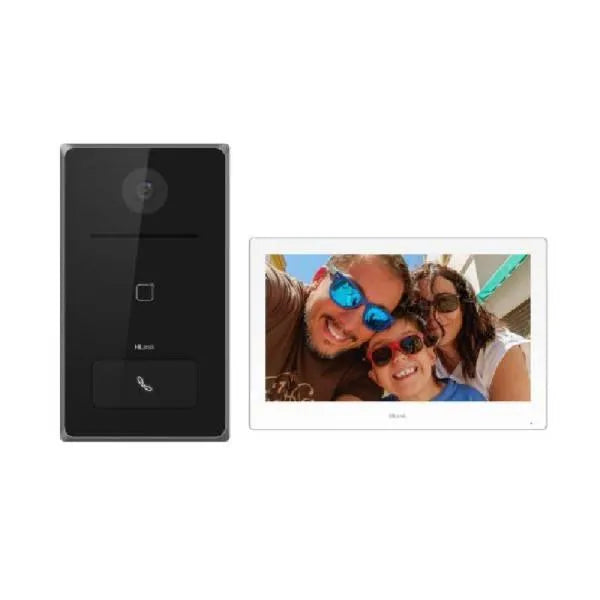

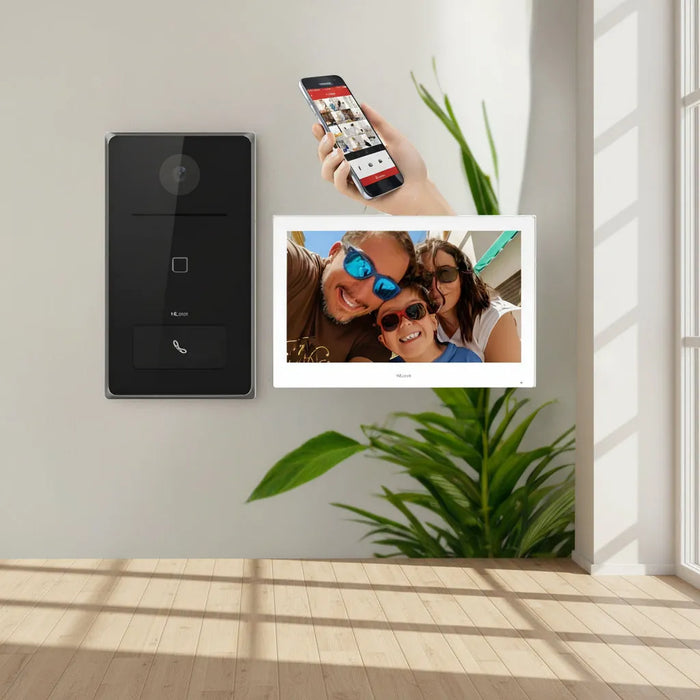

HiLook HA-KIT-IP2 Smartphone Video Intercom Kit
See and speak with visitors at your entrance using the HiLook HA-KIT-IP2 Smartphone Video Intercom Kit. This IP intercom package combines a 2MP outdoor door station with a 7-inch touchscreen indoor monitor and Hik-Connect mobile-app support.
When the system is correctly installed and connected to the internet, incoming intercom calls can be answered from the indoor monitor or a compatible smartphone. Users can view the visitor, hold a two-way conversation and activate a connected electric lock or gate through the configured system.
Important: Wi-Fi provides network connectivity but does not make the entire intercom installation wire-free. The monitor and door station still require suitable power, and a connected electric strike, magnetic lock or gate requires its own compatible hardware and power arrangement. Cabling, lock hardware, PoE equipment and installation labour are not included unless specifically arranged.
What’s Included
-
1 × HiLook HA-IN72 7-inch white touchscreen indoor monitor
-
1 × HiLook HA-DS2 2MP surface-mounted outdoor door station
- 1 × Power supply
-
1 × Rain shield for the door station
-
1 × 32GB TF/microSD card for compatible local event storage
The kit does not include intercom cabling, network equipment, an electric strike or magnetic lock, a separate lock power supply, gate-control hardware or professional installation. Depending on the chosen design, an additional 12V power supply, PoE switch or PoE injector may be required.
Key Features
-
Smartphone answering – receive compatible intercom calls through the Hik-Connect app when the system has internet access
-
7-inch touchscreen monitor – view visitors and operate configured intercom functions from inside the property
-
2MP entrance camera – provides clear video for visitor identification
-
Two-way audio – built-in microphone and speaker support conversations between the entrance, monitor and compatible mobile app
-
Remote door release – activate a correctly connected electric lock or gate relay from the monitor or app
-
Wi-Fi or Ethernet networking – flexible connection options for suitable installations
-
PoE support – compatible Power over Ethernet equipment can carry network data and power through one Ethernet cable
-
IP65-rated door station – designed for sheltered outdoor entrance locations
-
Included 32GB storage card – supports compatible event-image and recording functions
How Smartphone Access Works
Remote access uses the Hik-Connect app on a compatible iOS or Android device. The intercom must first be installed, connected to a reliable internet service and correctly added to a Hik-Connect account.
- Install and configure the door station and indoor monitor.
- Connect the intercom to the property network using Ethernet or compatible 2.4GHz Wi-Fi.
- Create or sign in to a Hik-Connect account.
- Add the intercom system to the account and enable the required call and notification settings.
- Test video calling, audio and any connected door-release function before handover.
Remote calling and notifications depend on internet availability, mobile-app permissions, network settings and the correct system configuration. Professional setup is recommended.

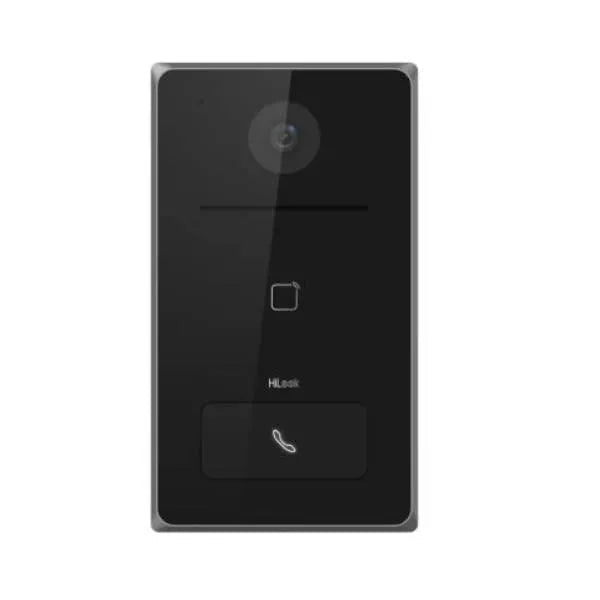

HA-DS2 Outdoor Door Station
-
Camera: 2MP HD
-
Low-light assistance: Infrared supplement up to approximately 2.5 metres
-
Image processing: Wide Dynamic Range for entrances with contrasting light
-
Field of view: Approximately 129° horizontal and 75° vertical
-
Audio: Built-in omnidirectional microphone and loudspeaker
-
Network: RJ45 10/100Mbps Ethernet and 2.4GHz Wi-Fi
-
Lock output: One relay, maximum 30V DC, 2A
-
Power: IEEE 802.3af PoE or 12V DC
-
Weather rating: IP65
-
Mounting: Surface mount with included rain shield
-
Dimensions: 181.6 × 103.6 × 29.5mm
HA-IN72 Indoor Touchscreen Monitor
-
Display: 7-inch colour capacitive touchscreen
-
Resolution: 1024 × 600
-
Audio: Built-in omnidirectional microphone and loudspeaker
-
Storage support: TF/microSD card up to 128GB
-
Included storage: 32GB TF/microSD card
-
Network: RJ45 10/100Mbps Ethernet and 2.4GHz Wi-Fi
-
Power: IEEE 802.3af PoE or 12V DC, 1A
-
Mounting: Indoor surface mount
-
Dimensions: 175 × 113.5 × 21mm
Electric Lock and Gate Compatibility
The HA-DS2 includes a relay output for a compatible electric locking or gate-control system. The correct design depends on whether the property uses an electric strike, magnetic lock, gate motor or another access-control device.
The lock or gate equipment may require a separate power supply, interface relay, exit button and additional cabling. These components are not included in the HA-KIT-IP2. Read our guide to choosing an electric door strike, or ask CTC Communications to confirm the required hardware.
Ideal Applications
- Single-family homes
- Townhouses and duplex entrances
- Home offices and studios
- Small offices and reception areas
- Gates with compatible control equipment
- Properties requiring remote visitor communication
For apartments, multiple dwellings, multiple entrances or several indoor monitors, confirm the required system capacity and compatibility before purchasing.
Installation Requirements
Installation should account for the available network, power method, cable route, door-station mounting position and any electric locking equipment. Reliable internet access is required for smartphone calling outside the local network.
A professional installer can configure IP addresses, Hik-Connect access, call forwarding, storage, door-release timing and network security, then test the system before handover.
