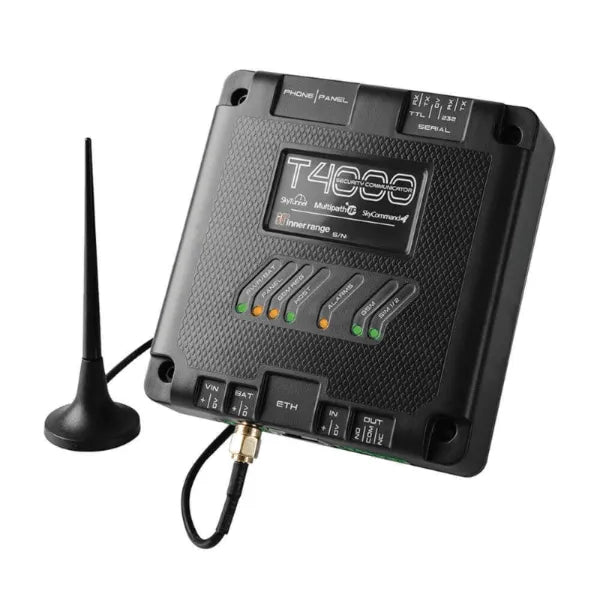

Inner Range Multipath T4000 4G Security Communicator (Telstra/Optus), IR-9985304G

Inner Range Multipath T4000  4G, Dual Sim GSM alarm Communicator connects to alarm control panel and can use remote control using the Sky Command smart phone app.

The Multipath-IP T4000 security communicator is a highly advanced and cost effective field device used to connect any Contact-ID dialler equipped alarm panel to a central monitoring station via multiple highly secure IP paths.

Model: IR-9985304G

Built from the ground up, the T4000 supersedes previous models and delivers unprecedented features never before seen within the security industry. With a core focus on ease of installation, ease of operation and low-cost security monitoring, the T4000 can even leverage Inner Range's SkyTunnel cloud based infrastructure for seamless IP connectivity and super-fast alarm reporting.

Featuring Dual 4G and Ethernet alarm transmission paths which allows simple connection of many brands of alarm panels, the T4000 is capable of providing a communication paths for upload/download programming of many popular alarm systems when a PSTN line is not available at the installation site.

The T4000's small footprint allows it to easily retrofit into existing alarm system cabinets or be housed in its own security cabinet with a backup battery.

Features :

• Simple Plug and Play installation
• Ultra-fast 4G dual SIM polled communications paths
• 10/100 Mbps Ethernet port for high-speed polling
• Configurable bi-directional polling (meets requirements of Australian Standard AS2201.5)
• Secure 128Bit AES encrypted data transmission
• Over-the-air upload/download to compatible alarm systems available
• Dialler Capture port to receive communications from any alarm panel equipped with a dialler and programmed to report Contact-ID
• High-level integration with Inner Range Integriti, Inception & Concept Systems
• Remote firmware update capability
• General purpose security input
• Relay output for control of external devices
• Remotely arm/disarm connected alarm system
• App available that allows the end user to control their alarm system
• Alarm reporting using Contact-ID and IRFast with text formats
• Easy to read functional LED status display
• 12-24VDC supply voltage
•


Specifications :

• ABS plastic enclosure Installation environment 0 to 50 degrees C at 15 to 90 percent relative humidity (non-condensing)5 LED status indicators
• Contact ID, IR Fast and IR Fast + text alarm formats
• Power input: 12-24VDC, 150mA nominal
• Power current consumption at 13V DC: 115mA (Idle) + 30mA (GSM online)
• Minimum operating voltage: 8V DC
• Low volts sense voltage (typical): 11.0V
• Fuse: PTC protection + on-board fuse (non-replaceable)
• Zone input: 3 Software configurable (EOL or Non-EOL)
• Open Collector output (OUT) current: 3 100mA DC per output
• Dimensions: 101 x 79 x 23mm (Not including connectors)
• Weight: 195g
