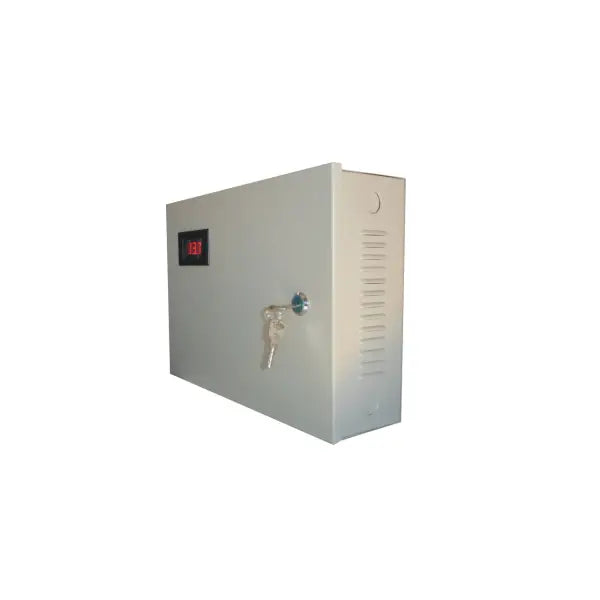

Patriot W-DC12-12A 12V DC 12A Wall Mount Power Supply – 16 Fused Outputs
The Patriot W-DC12-12A Wall Mount Power Supply provides higher-capacity 12V DC power distribution for compatible CCTV, alarm, access-control and other low-voltage security equipment. Its lockable metal cabinet contains 16 individually protected outputs, LED output indicators and a digital voltage display for convenient system monitoring. Browse our complete range of battery and power supply products for additional system components.
Best For
Larger CCTV systems, multi-door access control, alarm equipment and commercial security installations requiring centralised 12V DC power distribution.
Key Features
- Regulated 12V DC power output
- 12A nominal total output capacity
- 16 individually protected outputs
- 1.85A resettable protection on each output
- LED indicator for every output
- Digital voltage display
- Supports battery-backup operation
- Mains-fail and low-battery contacts
- Short-circuit and overload protection
- Lockable wall-mount cabinet
- Internal GPO recess
- Free-air convection cooling
Power Larger Security Systems
The W-DC12-12A distributes power across 16 separately protected outputs, allowing multiple compatible devices to be powered from one central cabinet. Individual output protection helps isolate branch faults, while the LED indicators make it easier to identify an affected circuit during servicing.
The combined load of all connected devices must remain within the power supply’s total output capacity. Equipment start-up current, cable voltage drop and battery-charging requirements should also be considered when calculating the system load.
Resettable Output Protection
Each of the 16 outputs is protected by a resettable device rated at 1.85A. This helps protect individual circuits without requiring a conventional fuse to be replaced after every temporary overload or fault.
The 1.85A figure applies to the protection fitted to each output. It does not mean that all outputs can simultaneously supply 1.85A—the combined connected load must remain within the power supply’s total capacity.
Battery-Backup Support
The power supply supports a compatible backup battery to help maintain operation during a mains-power interruption. Mains-fail and low-battery contacts can be connected to compatible alarm or monitoring equipment to report power-related faults.
Please note: The backup battery is not included. Battery capacity should be selected according to the connected load, required standby time and available cabinet space.
Technical Specifications
-
Model: W-DC12-12A
-
Output voltage: 12V DC
-
Nominal total output current: 12A
-
Power outputs: 16 individually protected outputs
-
Output protection: 1.85A resettable protection per output
-
Output indication: Individual LED indicators
-
Voltage display: Digital display
-
Protection: Short-circuit and overload protection
-
Cooling: Free-air convection
-
Cabinet dimensions: 235 × 362 × 92mm
What Is Included?
- 1 × Patriot W-DC12-12A power supply
- Lockable wall-mount cabinet
- Integrated 16-output protected distribution board
Please note: The backup battery, connected security equipment, external cabling, mounting hardware and installation are not included unless specified separately.
Professional Installation Required
This power supply includes mains-voltage connections and should be installed by a suitably qualified technician. Confirm the combined equipment load, cable sizes, voltage drop, output protection and battery requirements before installation.
CTC Communications can assist with equipment selection and professional CCTV system installation across Sydney, ensuring the power supply and connected equipment are correctly specified for the site.
Order the Patriot W-DC12-12A Power Supply
Order the Patriot W-DC12-12A from CTC Communications for Australia-wide delivery. For assistance selecting a suitable power supply for your CCTV, alarm or access-control system, contact our experienced team.
